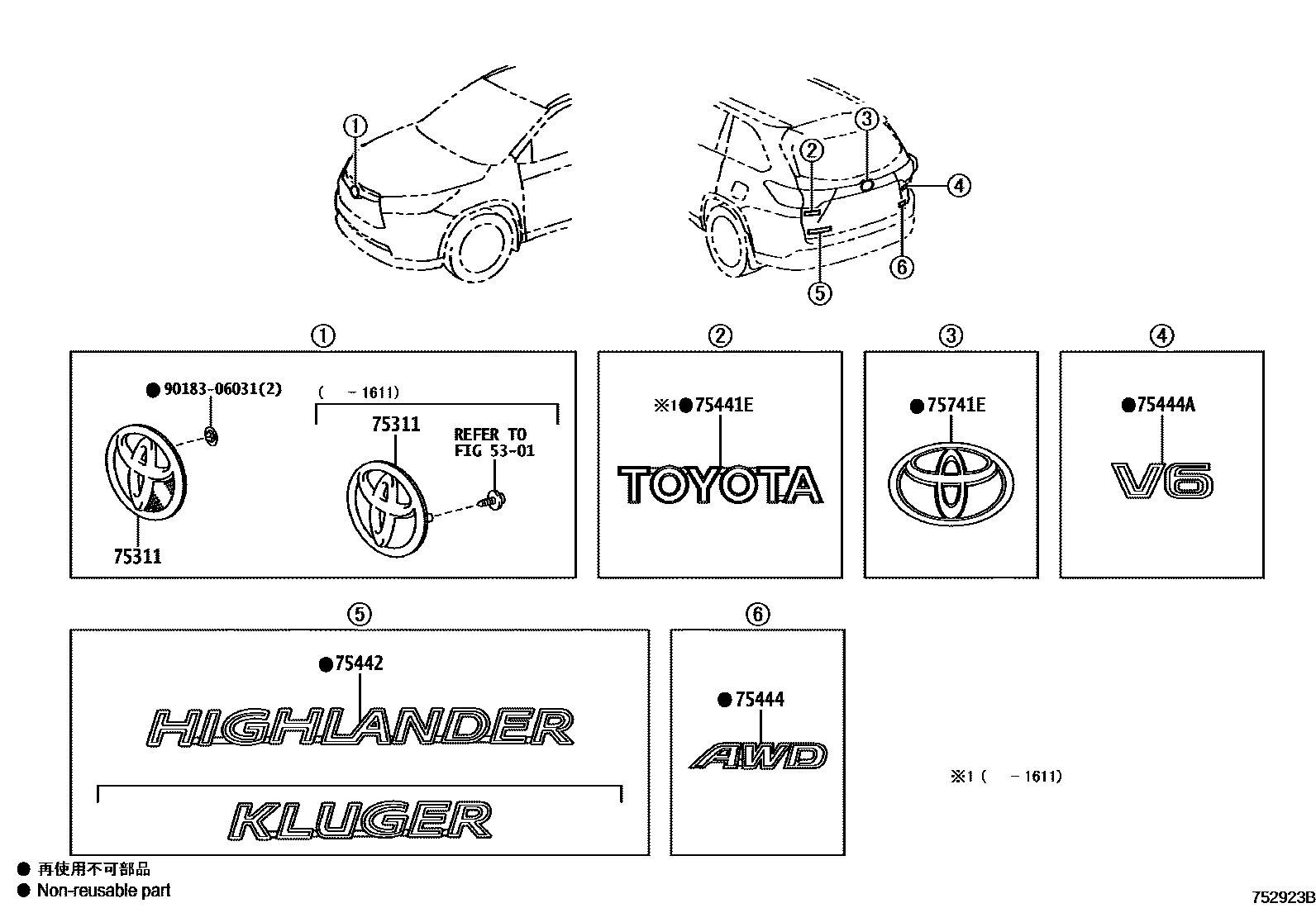

Toyota HIGHLANDER/KLUGER — EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-42020iGSU5#..LE..ARL201710

sub53141-42021

main53141-42020iGSU5#..LIMD..ARL201611

GSP WITH TSR

sub53141-42021

main75301-0R030iGSU5#..LE..ARL201611-201710

main75301-42070iASU50,GSU55..RUS201611

main75310-0E010iGSU5#..ARL201312-201611

main75310-0E020iASU50,GSU55..RUS201312-201611

75441EPLATE, BACK DOOR NAME, NO.1

main75441-0E040iASU50,GSU55..RUS201312-201611

TOYOTA

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-0E060iGSU5#..ARL201312-201611

KLUGER

main75442-0E070iASU50,GSU55..RUS201312-201611

HIGHLANDER

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-0E050iGSU55..ARL201312-201611

AWD

75444APLATE, BACK DOOR NAME, NO.4

main75444-0E070iGSU55..RUS201312-201611

V6

75741EEMBLEM, SYMBOL

main90975-02073iGSU5#..ARL201312-201611

main90975-02073iGSU5#..ARL201611

GSP WITH TSR

main90975-02129iASU50,GSU55..RUS201312-201611

9018306031

main90183-06031

8 parts on this diagram · 1 diagram in section
