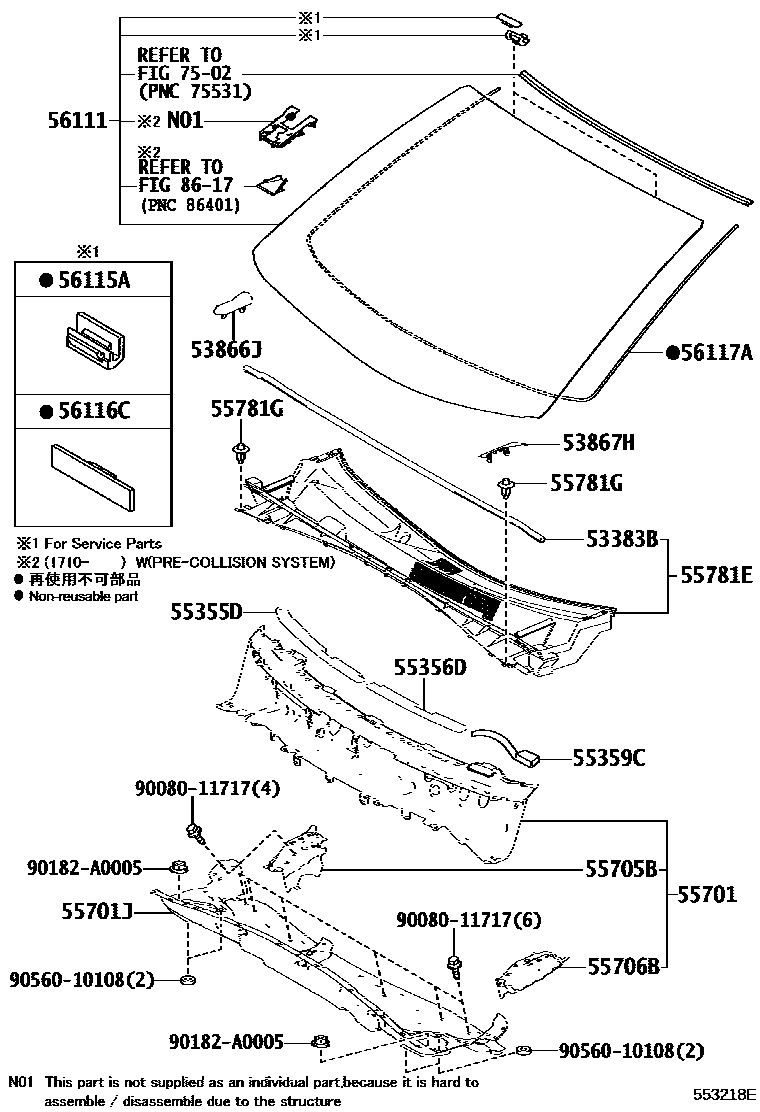

Toyota HIGHLANDER/KLUGER — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-0E050iASU50,GSU5#201312-201611

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0E060iASU50,GSU5#201312-201611

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0E060iASU50,GSU5#201312-201611

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55359-0E090iASU50,GSU5#201312-201611

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55359-0E100iASU50,GSU5#201312-201611

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-0E160iASU50,GSU5#201312-201611

55701PANEL SUB-ASSY, COWL

main55700-0E050iASU50,GSU55..RUS201312-201511

main55700-0E051iASU50,GSU55..RUS201511-201611

main55700-0E060iGSU5#..ARL201312-201611

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0E060iGSU55..RUS201312-201611

main55701-0E070iGSU5#..ARL201312-201611

main55701-0E080iASU50201312-201611

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0E050iASU50,GSU5#201312-201611

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0E050iASU50,GSU5#201312-201611

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0E070iASU50,GSU55..RUS201312-201512

sub55708-0E071

main55708-0E071iASU50,GSU55..RUS201601-201807

sub55708-0E072

main55708-0E072iASU50,GSU55..RUS201808

main55708-0E080iGSU5#..ARL201312-201611

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08180iASU50,GSU5#201312-201501

main90467-A0035iASU50,GSU5#201502-201611

56111GLASS, WINDSHIELD

main56101-0E260iASU50,GSU55..LE..RUS201312-201606

*EHL,T=4.76,GREEN

sub56101-0E262

main56101-0E262iASU50..LE201607-201612

sub56101-0E263

main56101-0E263iASU50..LE201612

main56101-0E290iGSU5#..ARL201312-201602

*LAM,T=4.76,GREEN

sub56101-0E292

main56101-0E292iGSU5#..ARL201603-201710

main56101-0E340iASU50,GSU55..LE..RUS201312-201502

*EHL,T=4.76,GREEN,LEATHER PACKAGE

sub56101-0E341

main56101-0E340iASU50,GSU55..LIMD..RUS201312-201502

*EHL,T=4.76,GREEN

sub56101-0E341

main56101-0E341iASU50,GSU55..LE..RUS201503-201602

LEATHER PACKAGE

main56101-0E343iASU50,GSU55..LE..RUS201603-201612

LEATHER PACKAGE

sub56101-0E344

main56101-0E344iASU50..LE201612

LEATHER PACKAGE

main56101-0E581iGSU5#..LIMD..ARL201611

main56101-0E600iGSU5#..LE..ARL201710

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iASU50,GSU5#201312-201611

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iASU50,GSU5#201312-201611

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0E060iASU50..LE201312-201611

L=3025

main56117-0E060iASU50..LE201312-201611

L=3025,LEATHER PACKAGE

main56117-0E060iASU50..LE201611

L=3025,GSP WITH TSR

main56117-0E060iASU50,GSU5#201312-201611

L=3025,LANE KEEPING SYSTEM-WITH

7502

8617

9008011717

main90080-11717

90182A0005

main90182-A0005

9056010108

main90560-10108

21 parts on this diagram · 2 diagrams in section
