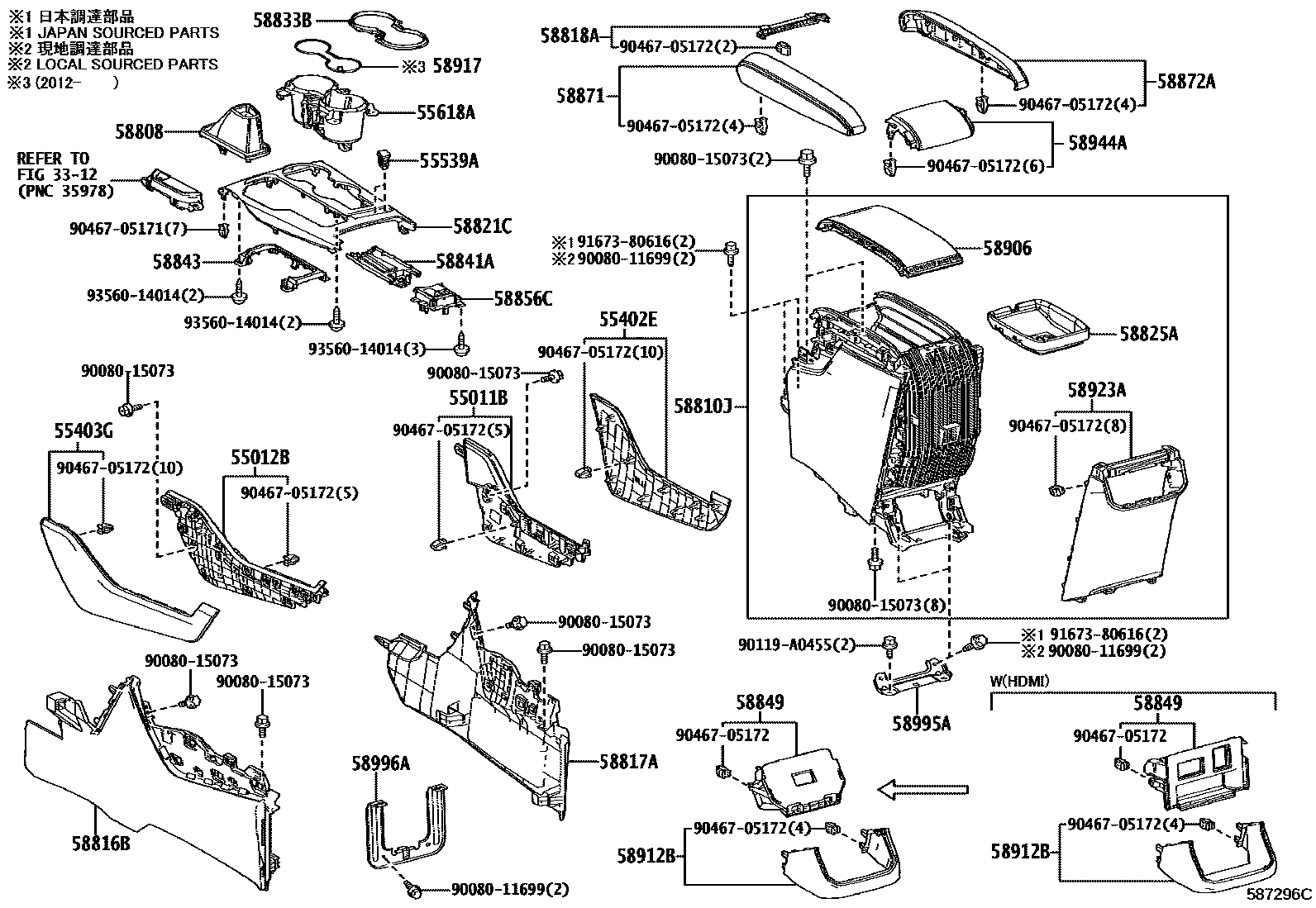

Toyota HIGHLANDER/KLUGER — CONSOLE BOX & BRACKET
3312SHIFT LEVER & RETAINER
55011BGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1
55012BGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
GREY, GREY,TRIM1#
BLACK, GREY,TRIM2#
BLACK/BLACK,TRIM42
OCHER, BROWN,TRIM41
NEUTRAL BEIGE, IVORY,TRIM40
NEUTRAL BEIGE, IVORY,TRIM4#
GRAY,TRIM1#
GRAY,TRIM10
BLACK,TRIM2#
BLACK,TRIM13,2#
NEUTRAL BEIGE,TRIM4#
55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
GREY, GREY,TRIM1#
BLACK, GREY,TRIM2#
BLACK/BLACK,TRIM42
OCHER, BROWN,TRIM41
NEUTRAL BEIGE, IVORY,TRIM4#
NEUTRAL BEIGE, IVORY,TRIM40
GRAY,TRIM10
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM13,2#
NEUTRAL BEIGE,TRIM4#
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/GRAY,TRIM1#,20
BLACK/GRAY,TRIM1#,2#
BLACK/GRAY,TRIM1#,2#,4#
BLACK/GRAY,TRIM10,2#
BLACK/GRAY,TRIM1#,2#,40
BLACK/GRAY,TRIM1#,2#,40,41
BLACK/BLACK,TRIM42
BLACK/BLACK,TRIM13
BLACK/BLACK,TRIM20
BLACK,TRIM1#,2#,4#
58810JBOX ASSY, CONSOLE
BLACK/GRAY,TRIM1#
BLACK/GRAY,TRIM10
BLACK/BLACK,TRIM13,2#
BLACK/BLACK,TRIM2#
BLACK/NEUTRAL BEIGE,TRIM40
BLACK/NEUTRAL BEIGE,TRIM4#
BLACK/OCHER,TRIM41
NOBLE BROWN/BEIGE,TRIM40
NOBLE BROWN/BEIGE,TRIM4#
NOBLE BROWN/OCHER,TRIM41
BLACK/GRAY,TRIM1#
BLACK,TRIM2#,42
BLACK,TRIM2#
BLACK/BEIGE,TRIM4#
BLACK/BEIGE,TRIM40
BLACK/OCHER,TRIM41
58816BINSERT, CONSOLE BOX
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM4#
58818ACOVER, CONSOLE BOX, FR
GRAY,TRIM1#
GRAY,TRIM10
BLACK,TRIM13,2#
BLACK,TRIM2#
BLACK,TRIM2#,42
BLACK,TRIM10,2#
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
OCHER,TRIM41
58821CPANEL, CONSOLE, UPPER
58825APOCKET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58841ACOVER, SHIFTING HOLE
58843BEZEL, SHIFTING HOLE
58849COVER, CONSOLE BOX HOLE, NO.2
58856CHOLDER, CONSOLE
58871CUSHION, CONSOLE BOX
GRAY/GRAY,TRIM1#
GRAY/GRAY,TRIM10
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM20
BLACK/OCHRE,TRIM13
BLACK/MD GRAY,TRIM20
OCHER/BROWN,TRIM41
NEUTRAL BEIGE/IVORY,TRIM4#
NEUTRAL BEIGE/IVORY,TRIM40
58872ACUSHION, CONSOLE BOX, NO.2
GRAY/GRAY,TRIM10
GRAY/GRAY,TRIM1#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM20
BLACK/OCHRE,TRIM13
BLACK/MD GRAY,TRIM20
OCHER/BROWN,TRIM41
NEUTRAL BEIGE/IVORY,TRIM4#
NEUTRAL BEIGE/IVORY,TRIM40
58906DOOR SUB-ASSY, UPPER CONSOLE
GRAY,TRIM1#
GRAY,TRIM10
BLACK,TRIM13,2#
BLACK,TRIM2#
BLACK,TRIM2#,42
NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
OCHER,TRIM41
58912BBOX, REAR CONSOLE, LOWER
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM4#
58917MAT, BOX BOTTOM, NO.2
58923APANEL, CONSOLE REAR END
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
58944ACOVER, CONSOLE, REAR
GRAY,TRIM10
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM13,2#
BLACK,TRIM10,2#
BLACK,TRIM2#,42
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
OCHER,TRIM41
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9008011699
main90080-11699
9008015073
main90080-15073
90119A0455
main90119-A0455
9046705171
main90467-05171
9046705172
main90467-05172
9167380616
main91673-80616
9356014014
main93560-14014
35 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota HIGHLANDER/KLUGER
This section contains 35 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HIGHLANDER/KLUGER. Key components include: SHIFT LEVER & RETAINER, GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1, GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2.
