Toyota HIGHLANDER/KLUGER — CONSOLE BOX & BRACKET

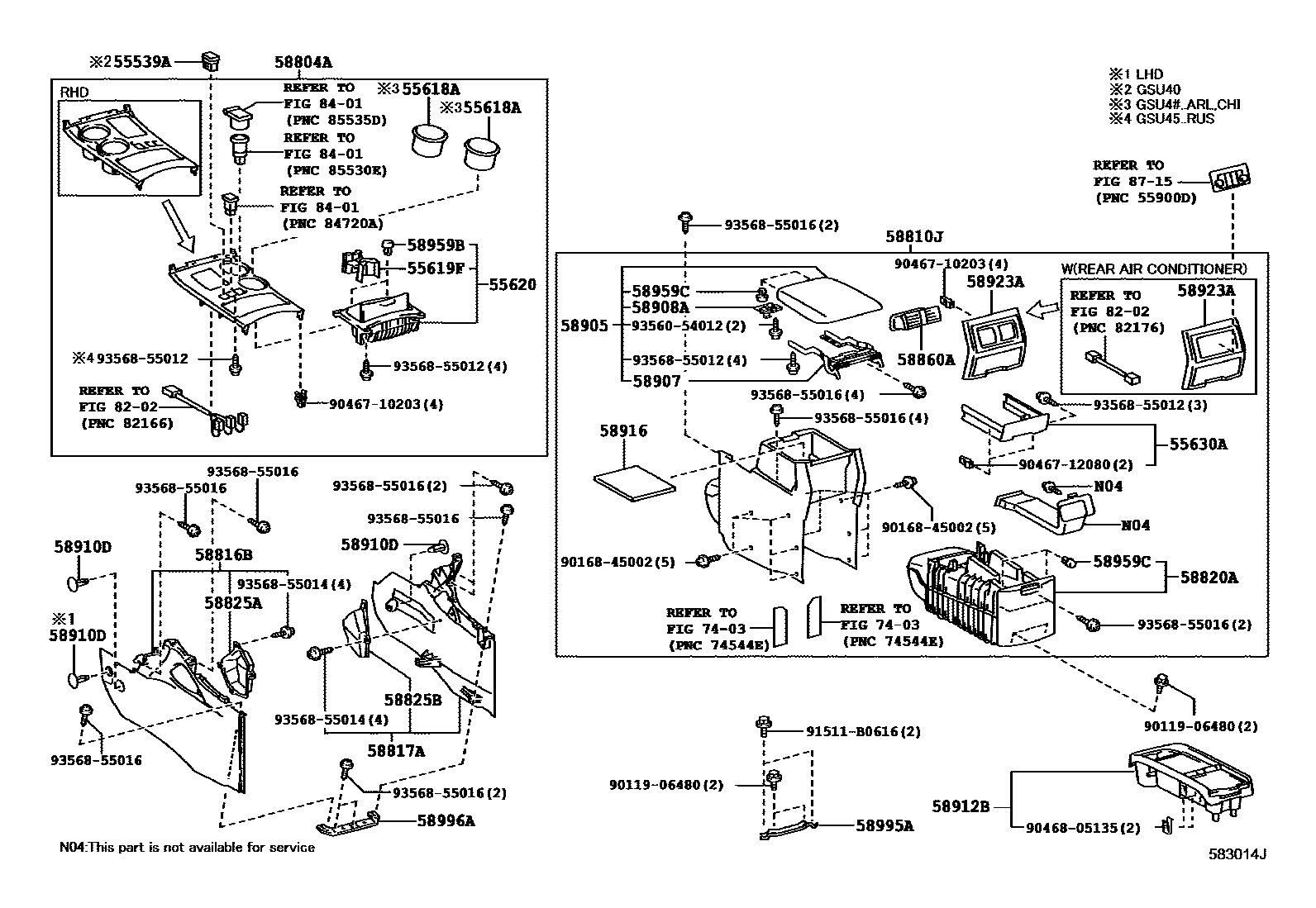

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-28160-C0i201007-201312
BLACK
55618AHOLDER, CONSOLE BOX CUP
main55618-48160-B0×2i201007-201312
GRAY,TRIM1#
main55618-48160-C0×2i201007-201312
BLACK,TRIM2#
main55618-48160-E0×2i201007-201312
SAND BEIGE,TRIM4#
55619FHOLDER, CONSOLE BOX CUP, NO.2
main55618-48150i200705-200901
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-48080-B0i200705-201007
GRAY,TRIM1#
main55620-48080-C0i200705-201007
BLACK,TRIM2#
main55620-48080-E0i200705-201007
SAND BEIGE,TRIM4#
main55620-48090-B0i200705-200901
GRAY,TRIM1#
main55620-48090-C0i200705-201007
BLACK,TRIM2#
main55620-48090-E0i200705-201007
SAND BEIGE,TRIM4#
main55620-48130-B0i201007-201312
GRAY,TRIM1#
main55620-48130-C0i201007-201312
BLACK,TRIM2#
main55620-48130-E0i201007-201312
SAND BEIGE,TRIM4#
main55620-48140-C0i201007-201312
BLACK,TRIM2#
main55620-48140-E0i201007-201312
SAND BEIGE,TRIM4#
55630AHOLDER, REAR CONSOLE BOX, CUP
main55630-48140-B0i200705-201007
GRAY,TRIM1#
main55630-48140-C0i200705-201007
BLACK,TRIM2#
main55630-48140-E0i200705-201007
SAND BEIGE,TRIM4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-48080-B0i200705-201007
GRAY,TRIM1#
main58804-48080-C0i200705-201007
BLACK,TRIM2#
main58804-48080-E0i200705-201007
SAND BEIGE,TRIM4#
main58804-48100-C0i200705-201007
BLACK,TRIM2#
main58804-48100-E0i200705-201007
SAND BEIGE,TRIM4#
main58804-48120-B0i200705-200901
GRAY,TRIM1#
main58804-48120-C0i200705-200901
BLACK,TRIM2#
main58804-48120-E0i200705-200901
SAND BEIGE,TRIM4#
main58804-48130-B0i200705-200901
GRAY,TRIM1#
main58804-48130-C0i200705-200901
BLACK,TRIM2#
main58804-48130-E0i200705-200901
SAND BEIGE,TRIM4#
main58804-48290-C0i201007-201312
BLACK,TRIM2#
main58804-48290-E0i201007-201312
SAND BEIGE,TRIM4#
main58804-48300-C0i201007-201312
BLACK,TRIM2#
main58804-48300-E0i201007-201312
SAND BEIGE,TRIM4#
main58804-48320-B0i201007-201312
GRAY,TRIM1#
main58804-48320-C0i201007-201312
BLACK,TRIM2#
main58804-48320-E0i201007-201312
SAND BEIGE,TRIM4#
main58804-48330-C0i201007-201312
BLACK,TRIM2#
main58804-48330-E0i201007-201312
SAND BEIGE,TRIM4#
58810JBOX ASSY, CONSOLE
main58810-48451-C0supersedes 58810-48461-C0i200705-201007
BLACK,TRIM2#
main58810-48451-E0supersedes 58810-48461-E0i200705-201007
SAND BEIGE,TRIM4#
main58810-48471-B0supersedes 58810-48451-B0i200705-200901
GRAY,TRIM1#
sub58810-48472
main58810-48471-C0supersedes 58810-48451-C0i201007-201312
REAR AIR CONDITIONER-AUTO,BLACK,TRIM2#
sub58810-48472
main58810-48471-E0supersedes 58810-48451-E0i201007-201312
REAR AIR CONDITIONER-AUTO,SAND BEIGE,TRIM4#
sub58810-48472
58816BINSERT, CONSOLE BOX
main58816-48020-B0i200705-200901
GRAY,TRIM1#
main58816-48020-C0i200705-200901
BLACK,TRIM2#
main58816-48020-E0i200705-200901
SAND BEIGE,TRIM4#
main58816-48040-B0i201007-201312
GRAY,TRIM1#
main58816-48040-C0i200705-201007
BLACK,TRIM2#
main58816-48040-E0i200705-201007
SAND BEIGE,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
main58817-48020-B0i200705-200901
GRAY,TRIM1#
main58817-48020-C0i201007-201312
BLACK,TRIM2#
main58817-48020-E0i200705-200901
SAND BEIGE,TRIM4#
main58817-48040-B0i200705-201007
GRAY,TRIM1#
main58817-48040-C0i201007-201312
BLACK,TRIM2#
main58817-48040-E0i200705-201007
SAND BEIGE,TRIM4#
58820ABOX ASSY, CONSOLE COMPARTMENT
main58820-48011-B0i200705-201007
GRAY,TRIM1#
main58820-48011-C0i201007-201312
BLACK,TRIM2#
main58820-48011-E0i200705-201007
SAND BEIGE,TRIM4#
58825APOCKET, CONSOLE BOX
main58825-48020-B0i200705-201007
GRAY,TRIM1#
main58825-48020-C0i201007-201312
BLACK,TRIM2#
main58825-48020-E0i201007-201312
SAND BEIGE,TRIM4#
58825BPOCKET, CONSOLE BOX
main58825-48030-B0i200705-201007
GRAY,TRIM1#
main58825-48030-C0i200705-201007
BLACK,TRIM2#
main58825-48030-E0i201007-201312
SAND BEIGE,TRIM4#
58860AREGISTER ASSY, CONSOLE BOX
main58860-48030-B0i200705-201007
GRAY,TRIM1#
main58860-48030-C0i200705-201007
BLACK,TRIM2#
main58860-48030-E0i200705-201007
SAND BEIGE,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-48010-B0i200705-201007
GRAY,TRIM1#
sub58905-48011
main58905-48010-C0i200705-201007
BLACK,TRIM2#
sub58905-48011
main58905-48010-E0i200705-201007
SAND BEIGE,TRIM4#
sub58905-48011
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-33100i200705-200901
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-33030i200705-200901
58910DCLIP(FOR CONSOLE BOX)
main90467-06020-C0×2i201007-201312
BLACK
58912BBOX, REAR CONSOLE, LOWER
main58912-48091-B0supersedes 58912-48101-B0i201007-201312
WITHOUT(REAR NO.2 SEAT),GRAY,TRIM1#
main58912-48091-C0i201007-201312
WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#
main58912-48091-E0i200705-200901
SAND BEIGE,TRIM4#
main58912-48101-B0i201007-201312
GRAY,TRIM1#
main58912-48101-C0i200705-201007
BLACK,TRIM2#
main58912-48101-E0i201007-201312
SAND BEIGE,TRIM4#
58916MAT, BOX BOTTOM
main58916-48030i200705-200901
58923APANEL, CONSOLE REAR END
main58923-48040-C0supersedes 58923-48050-C0i200705-201007
BLACK,TRIM2#
main58923-48040-E0supersedes 58923-48050-E0i200705-201007
SAND BEIGE,TRIM4#
main58923-48060-B0supersedes 58923-48040-B0i201007-201312
REAR AIR CONDITIONER-AUTO,GRAY,TRIM1#
main58923-48060-C0supersedes 58923-48040-C0i200705-200901
BLACK,TRIM2#
main58923-48060-E0supersedes 58923-48040-E0i200705-200901
SAND BEIGE,TRIM4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×2i201007
58959CCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×4i200705-201007
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-48040i200705-200901
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-48030i200705-201007
7403
8202
8401
8715
9011906480
main90119-06480
9016845002
main90168-45002
9046710203
main90467-10203
9046712080
main90467-12080
9046805135
main90468-05135
91511B0616
main91511-B0616
9356054012
main93560-54012
9356855012
main93568-55012
9356855014
main93568-55014
9356855016
main93568-55016

38 parts on this diagram · 1 diagram in section
