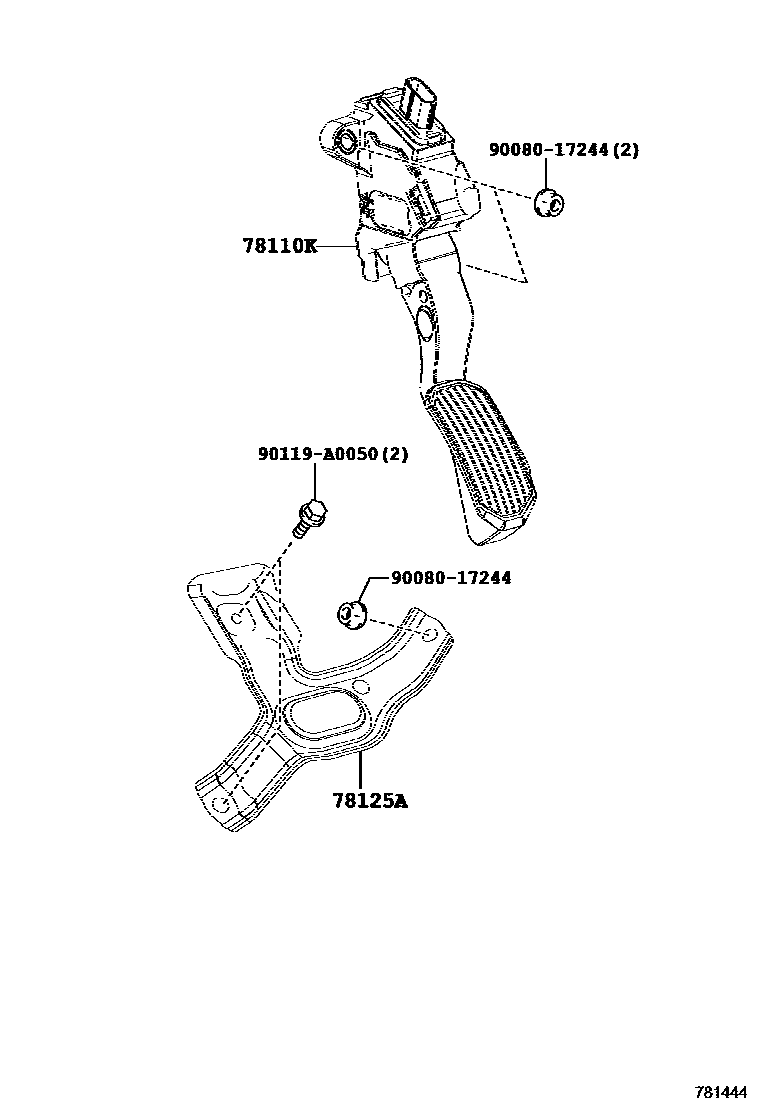

Toyota HIGHLANDER/KLUGER — ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0E010iASU50,GSU55..RUS201312-201611

main78110-33092iGSU5#..ARL201312-201602

sub78110-33093

main78110-33093iGSU5#..ARL201603-201611

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-0E040iASU50,GSU55..RUS201312-201611

9008017244

main90080-17244

90119A0050

main90119-A0050

4 parts on this diagram · 2 diagrams in section
