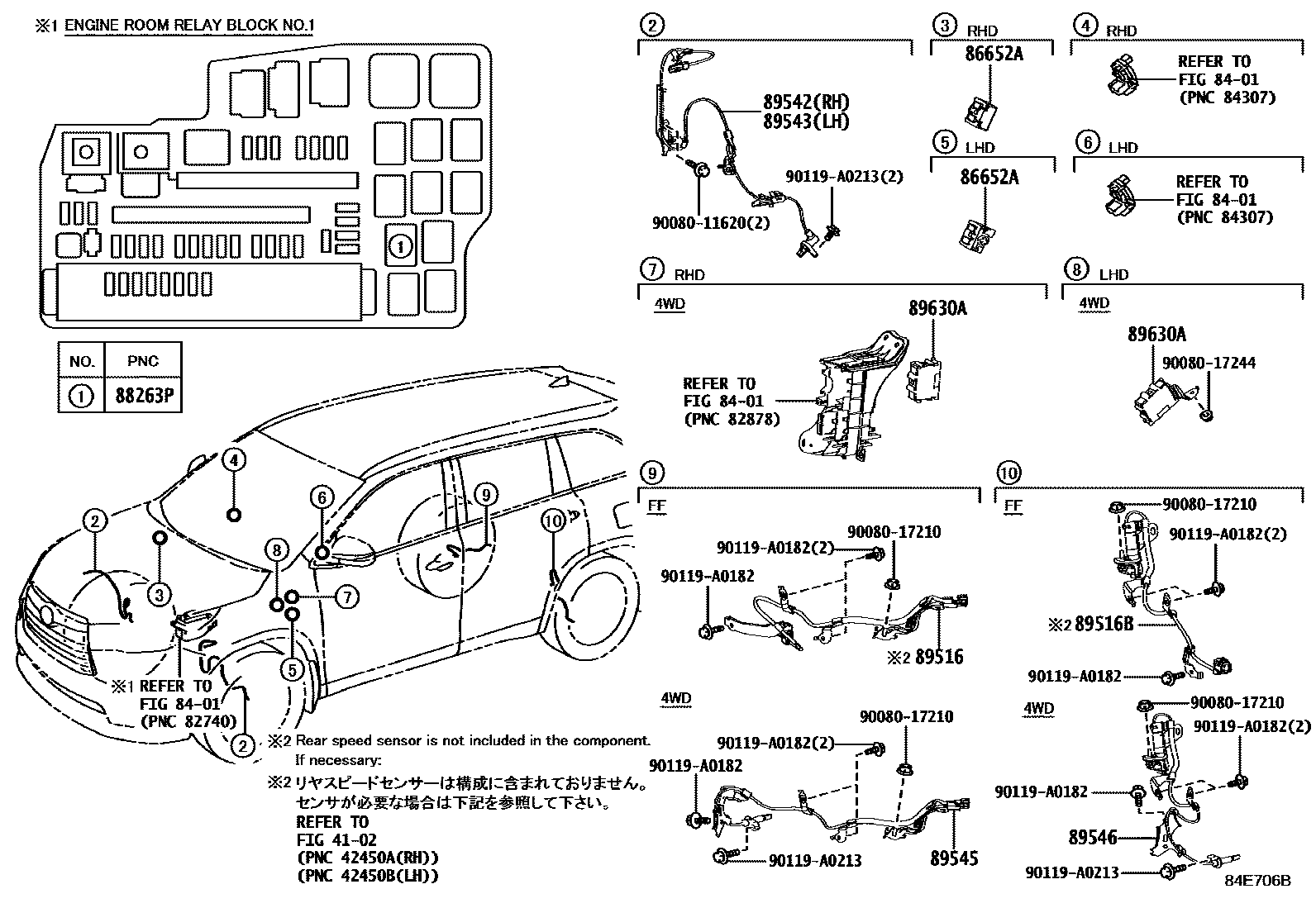

Toyota HIGHLANDER/KLUGER — ABS & VSC

4102

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iASU50,GSU55..LIMD..RUS201611-201911

GSP WITH TSR

main86652-50010iGSU5#..LE..ARL201710-201911

88263PRELAY, STOP LAMP CONTROL

main90084-98032iGSU55201312-201611

PRE-COLLISION SYSTEM-WITH

89516WIRE, SKID CONTROL SENSOR

main89516-0E030iASU50,GSU50201312-201611

89516BWIRE, SKID CONTROL SENSOR

main89516-0E040iASU50,GSU50201312-201611

89542SENSOR, SPEED, FRONT RH

main89542-0E020iASU50,GSU5#201312-201509

sub89542-0E080

main89542-0E080iASU50,GSU5#201510-201611

89543SENSOR, SPEED, FRONT LH

main89543-0E020iASU50,GSU5#201312-201509

sub89543-0E080

main89543-0E080iASU50,GSU5#201510-201611

89545SENSOR, SPEED, REAR RH

main89545-0E020iGSU55201312-201611

89546SENSOR, SPEED, REAR LH

main89546-0E020iGSU55201312-201611

89630ACOMPUTER ASSY, 4WD

main89630-48020iGSU55..RUS201312-201611

main89630-48030iGSU55..ARL201312-201611

9008011620

main90080-11620

9008017210

main90080-17210

9008017244

main90080-17244

90119A0182

main90119-A0182

90119A0213

main90119-A0213

16 parts on this diagram · 1 diagram in section
