Toyota HIGHLANDER/KLUGER — PARTIAL ENGINE ASSEMBLY

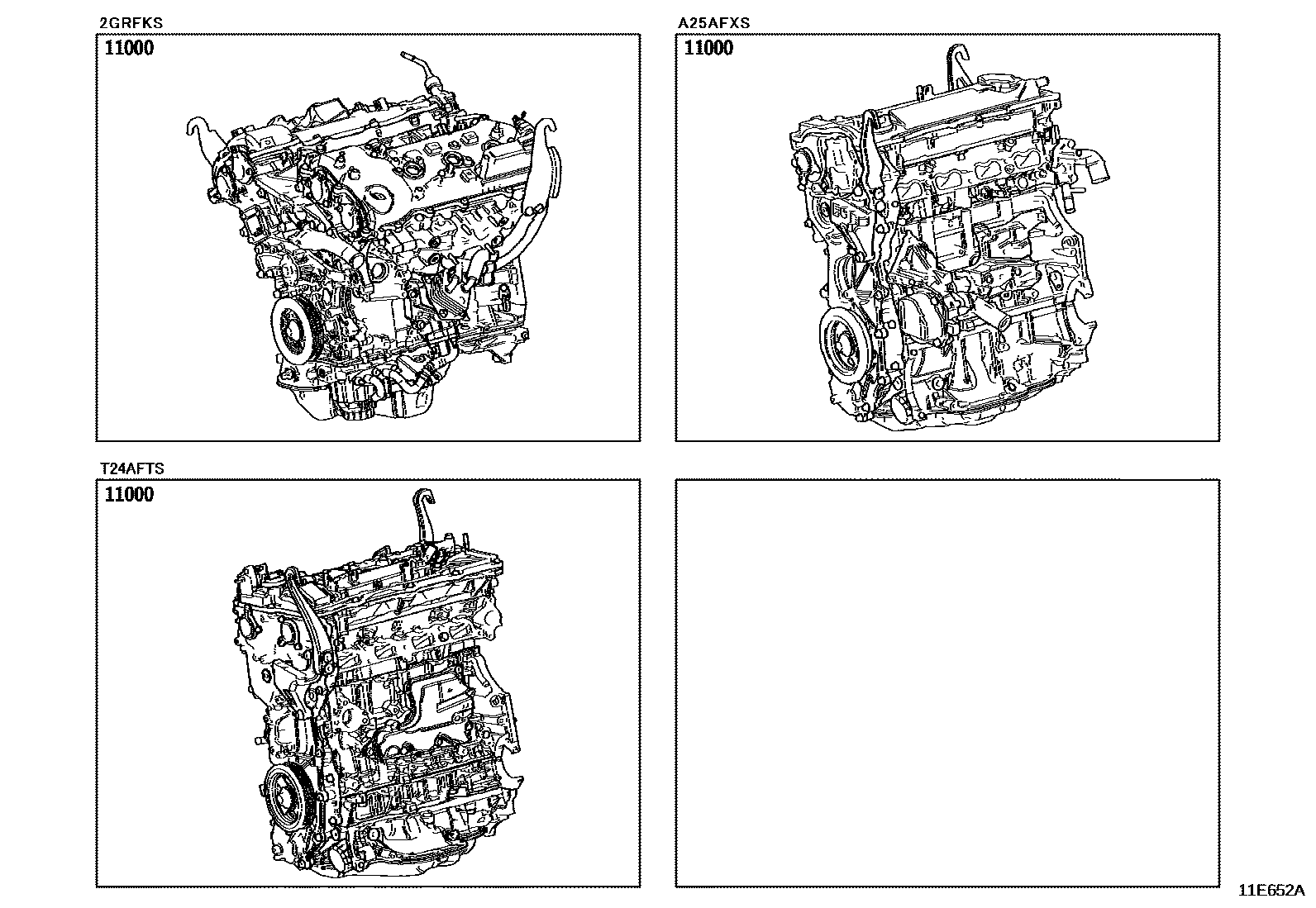

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0P570i202003-202210

main19000-0P590i202012-202210

main19000-F0040i202002-202110

main19000-F0140i202110-202208

main19000-F0150i202311

main19000-F0170i202311

1 parts on this diagram · 1 diagram in section
