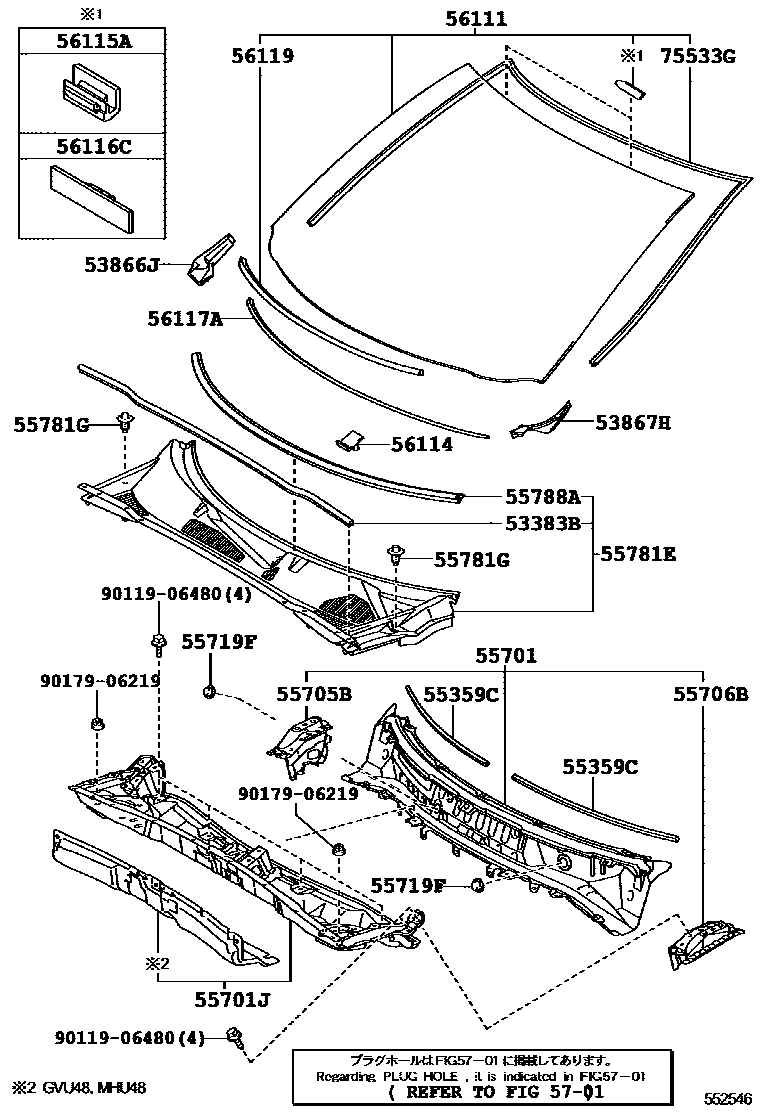

Toyota HIGHLANDER (JPP) — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48040i200705-201008

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-48030i201008

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-48040i200705-201008

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-48040×2i200705-201008

55701PANEL SUB-ASSY, COWL

main55700-48090i200705-201008

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-48080i200705-200811

main55701-48081i200812-201008

main55701-48100i200708-200908

main55701-48101i200909-201004

main55701-48102i201005-201006

main55701-48103i201006-201008

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-48030i200705-201008

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-48030i201008

55719FPACKING, FRONT LOWER PANEL

main55719-33020×2i200705-201008

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-48050i200705-201008

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08180×2i200705-201008

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-48050i200705-201008

56111GLASS, WINDSHIELD

main56101-48274supersedes 56101-48255i201008-201206

*EHL,T=4.76,GREEN; *EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH(WIPER DEICER)

main56101-48275i201207

*EHL,T=4.76,GREEN; *EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH(WIPER DEICER)

main56101-48270supersedes 56101-48251i200705-200805

*LAM,T=4.76,GREEN,WINDOSHIELD DEICER-WITH

main56101-48271supersedes 56101-48251i200806-200812

*LAM,T=4.76,GREEN,WINDOSHIELD DEICER-WITH

main56101-48272supersedes 56101-48254i200812-200905

*LAM,T=4.76,GREEN,WINDOSHIELD DEICER-WITH

main56101-48273supersedes 56101-48254i200906-200907

*EHL,T=4.76,GREEN,WINDOSHIELD DEICER-WITH

56114RETAINER, WINDSHIELD GLASS

main56114-22050i200705-201008

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i200705-201008

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i200705-201008

56117ADAM, WINDOW GLASS ADHESIVE

main56117-48060i201008

L=1551; L=1551,WINDSHIELD DEICER-WITH(WIPER DEICER)

56119SEAL, WINDSHIELD GLASS

main56119-48070i200812-201008

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-48040i200705-201008

9011906480

main90119-06480

9017906219

main90179-06219

22 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota HIGHLANDER (JPP)

This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota HIGHLANDER (JPP). Key components include: SEAL, HOOD TO COWL TOP, SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, COSHION, INSTRUMENT PANEL, NO.5, PANEL SUB-ASSY, COWL.
