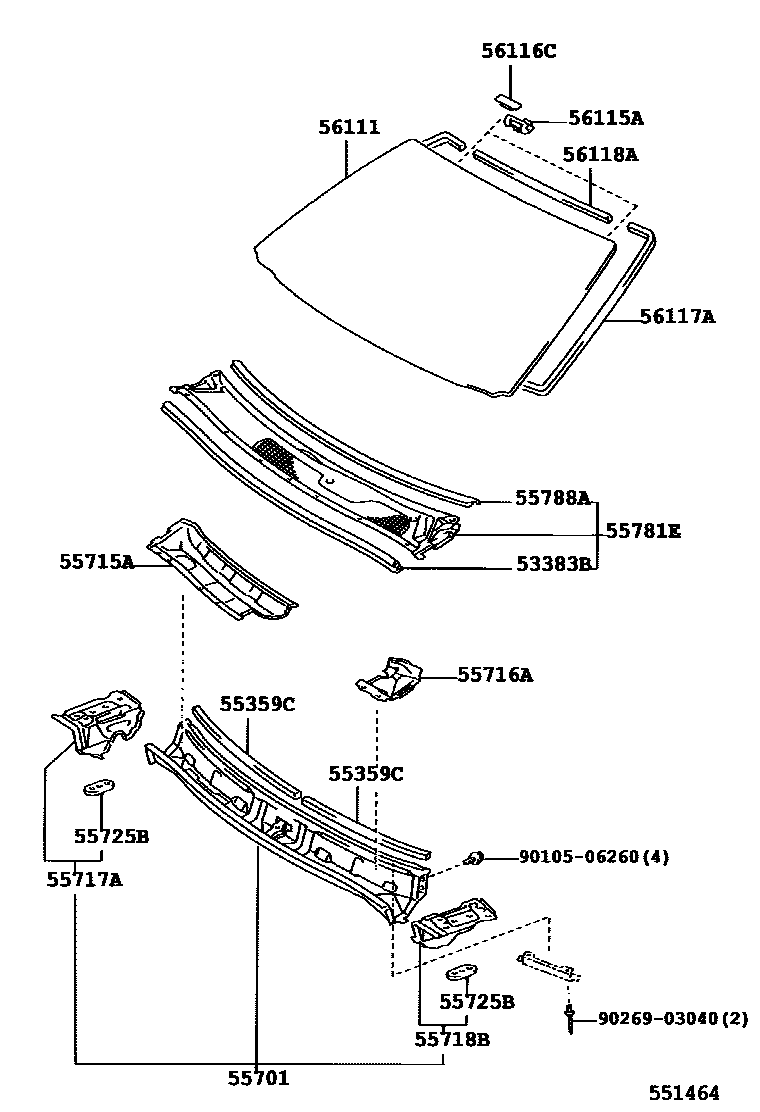

Toyota HIGHLANDER HV — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48020i200503

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-48010×2i200503

55701PANEL SUB-ASSY, COWL

main55700-48040i200503-200705

55715ABRACE, COWL TOP TO APRON, RH

main55715-48030i200503-200705

55716ABRACE, COWL TOP TO APRON, LH

main55716-48030i200503-200705

55717APANEL, COWL TOP SIDE, INNER RH

main55717-48900i200503

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-48900i200503

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010×2i200503

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55781-48050i200503

main55781-48070i200503

CANADA SPEC

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-48030i200503

56111GLASS, WINDSHIELD

main56111-48300supersedes 56111-48290i200503

*EHTL,T=4.76,GREEN,W(WINDSHIELD WIPER DEICER)

main56111-48310supersedes 56111-48290i200503

*TL,T=4.76,GREEN,LIMITED(USA)

main56111-48320supersedes 56111-48290i200503

*EHTL,T=4.76,GREEN,LIMITED(USA)&W(WINDSHIELD WIPER DEICER)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2i200503

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200503

56117ADAM, WINDOW GLASS ADHESIVE

main56117-48040i200503

L=3372; L=3372,LIMITED(USA); L=3372,LIMITED(USA)&W(WINDSHIELD WIPER DEICER); L=3372,W(WINDSHIELD WIPER DEICER)

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-48040i200503

L=595; L=595,LIMITED(USA); L=595,LIMITED(USA)&W(WINDSHIELD WIPER DEICER); L=595,W(WINDSHIELD WIPER DEICER)

9010506260

main90105-06260

9026903040

main90269-03040

17 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota HIGHLANDER HV

This section contains 17 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota HIGHLANDER HV. Key components include: SEAL, HOOD TO COWL TOP, COSHION, INSTRUMENT PANEL, NO.5, PANEL SUB-ASSY, COWL, BRACE, COWL TOP TO APRON, RH, BRACE, COWL TOP TO APRON, LH.
