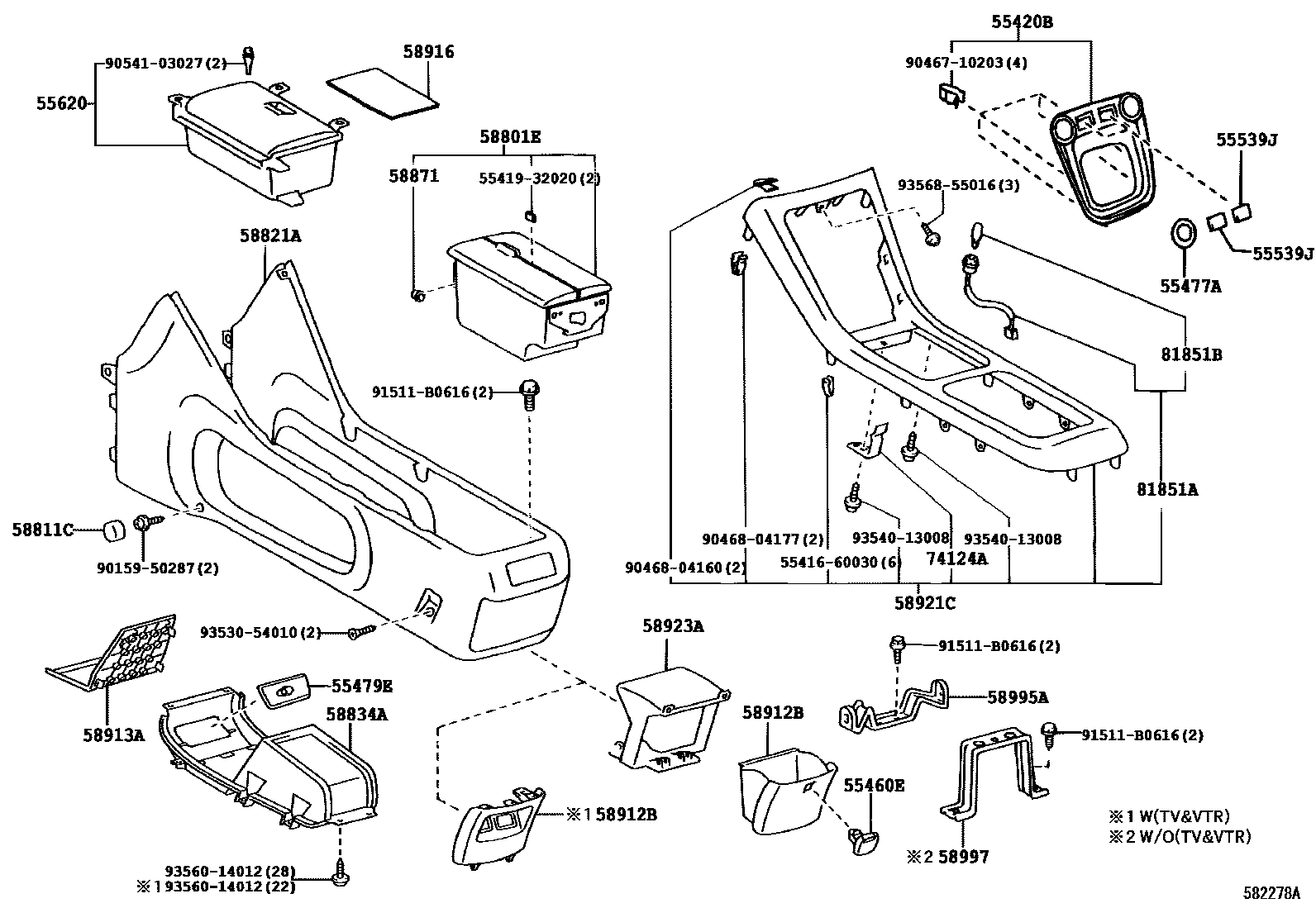

Toyota HIGHLANDER HV — CONSOLE BOX & BRACKET

55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55420-48080-E0supersedes 55420-48070-B0iMHU2#200503-200705

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

55460ELOCK ASSY, INSTRUMENT PANEL BOX

main55460-33010-A1iMHU2#200503-200705

IVORY,TRIM0#

main55460-33010-B8iMHU2#200503-200705

GRAY,TRIM1#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-48020iMHU2#200503-200705

55479ECOVER, INSTRUMENT, LOWER CENTER

main55479-48010-A0iMHU2#200503-200705

IVORY,TRIM0#

main55479-48010-B0iMHU2#200503-200705

GRAY,TRIM1#

55539JCOVER, SPARE SWITCH HOLE

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-48020-E1supersedes 55620-48060-B0iMHU2#200503-200705

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

58801EBOX SUB-ASSY, CONSOLE, UPPER

main58801-48040-A0iMHU2#200503-200705

IVORY,TRIM0#

main58801-48040-B1iMHU2#200503-200705

GRAY,TRIM1#

58811CCAP(FOR CONSOLE)

main90339-10014-A0×2iMHU2#200503-200705

IVORY,TRIM0#

main90339-10014-B5×2iMHU2#200503-200705

GRAY,TRIM1#

58821APANEL, CONSOLE

main58821-48020-A0iMHU2#200503-200705

IVORY,TRIM0#

main58821-48020-B2iMHU2#200503-200705

GRAY,TRIM1#

58834ACOVER, CONSOLE, LOWER

main58834-48060-A0iMHU2#200503-200705

IVORY,TRIM0#

main58834-48060-B0iMHU2#200503-200705

GRAY,TRIM1#

58871CUSHION, CONSOLE BOX

main58871-30050×4iMHU2#200503

58912BBOX, REAR CONSOLE, LOWER

main58912-48050-A0supersedes 58912-48030-A0iMHU2#200503-200705

LIMITED(USA)&W(TELEVISION & VTR),IVORY,TRIM0#

main58912-48050-B0supersedes 58912-48030-B1iMHU2#200503-200705

W(TELEVISION & VTR),GRAY,TRIM1#

58913APANEL, BOX, NO.3

main58913-48020-A0iMHU2#200503-200705

IVORY,TRIM0#

main58913-48020-B0iMHU2#200503-200705

GRAY,TRIM1#

58916MAT, BOX BOTTOM

main58916-48020iMHU2#200503

58921CPLATE, BOX, UPPER NO.1

main58921-48030-A0iMHU2#200503-200705

IVORY,TRIM0#

main58921-48030-B1iMHU2#200503-200705

GRAY,TRIM1#

58923APANEL, CONSOLE REAR END

main58923-48010-A0iMHU2#200503-200705

IVORY,TRIM0#

main58923-48010-B2iMHU2#200503-200705

GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-48030iMHU2#200503

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-48020iMHU2#200503

74124ASPRING, ASH RECEPTACLE

main74124-20120iMHU2#200503

81851ALAMP ASSY, INDICATOR

main81850-48040iMHU2#200503

81851BBULB (FOR INDICATOR LAMP)

main90981-11014iMHU2#200503

5541660030STOPPER,LIGHT CONTROL SWITCH

main55416-60030

5541932020PLATE, SAFETY PAD

main55419-32020

9015950287

main90159-50287

9046710203

main90467-10203

9046804160

main90468-04160

9046804177

main90468-04177

9054103027

main90541-03027

91511B0616

main91511-B0616

9353054010

main93530-54010

9354013008

main93540-13008

9356014012

main93560-14012

9356855016

main93568-55016

33 parts on this diagram · 1 diagram in section
