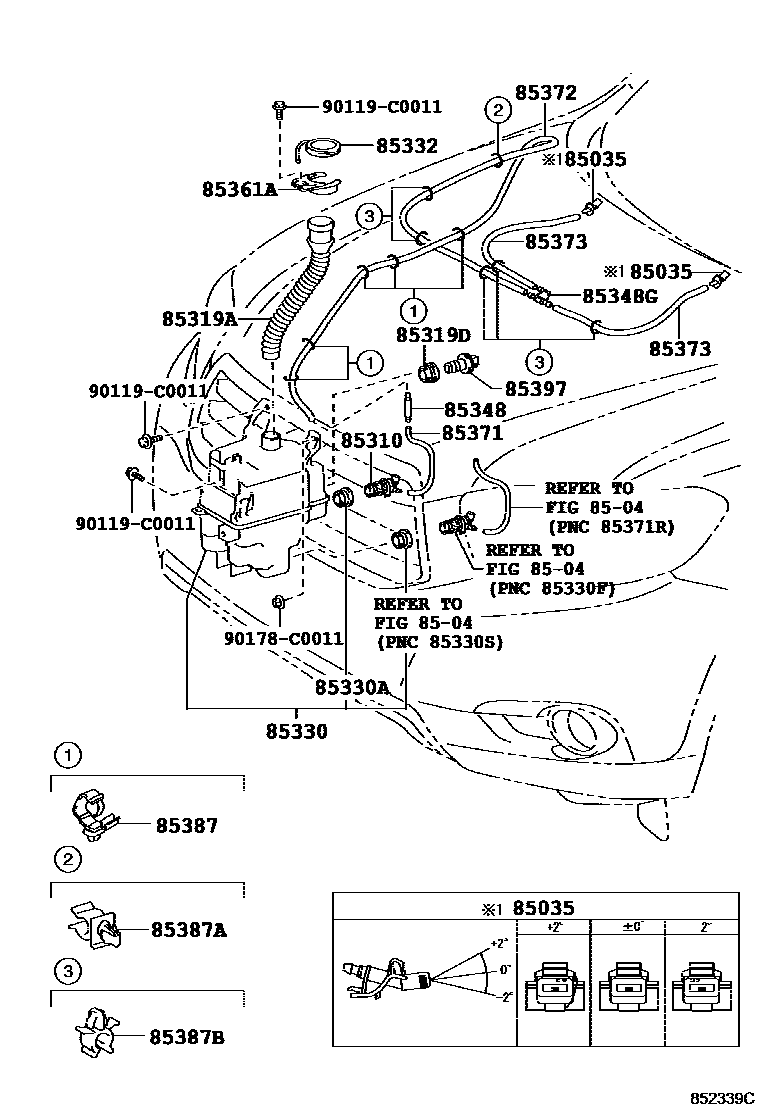

Toyota HIGHLANDER (CHINA) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i200905-201205

ANGLE 0

main85381-12310×2i201205

ANGLE -2

main85381-12320×2i200905-201205

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010i201402

main85330-60190i200905-201205

85319AHOSE, INLET

main85319-0E050i200905-201205

85319DPACKING, FRONT WASHER

main85319-33230i200905-201205

85330JAR ASSY, WINDSHIELD WASHER

main85315-0E050i200905-201205

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200905-201205

85332CAP, WINDSHIELD WASHER JAR

main85316-0E050i200905-201205

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E150i200905-201205

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85321-28020i200905-201205

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-0E050i200905-201205

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33080i200905-201205

L=330

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33114i200905-201205

L=2350

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33113×2i200905-201205

L=550

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350×5i200905-201205

85387ACLAMP, WASHER, NO.2

main85371-0E050i200905-201205

85387BCLAMP, WASHER, NO.3

main90469-07011×5i200905-201205

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i200905-201205

90119C0011

main90119-C0011

90178C0011

main90178-C0011

20 parts on this diagram · 1 diagram in section
