Toyota HIGHLANDER (CHINA) — SWITCH & RELAY & COMPUTER

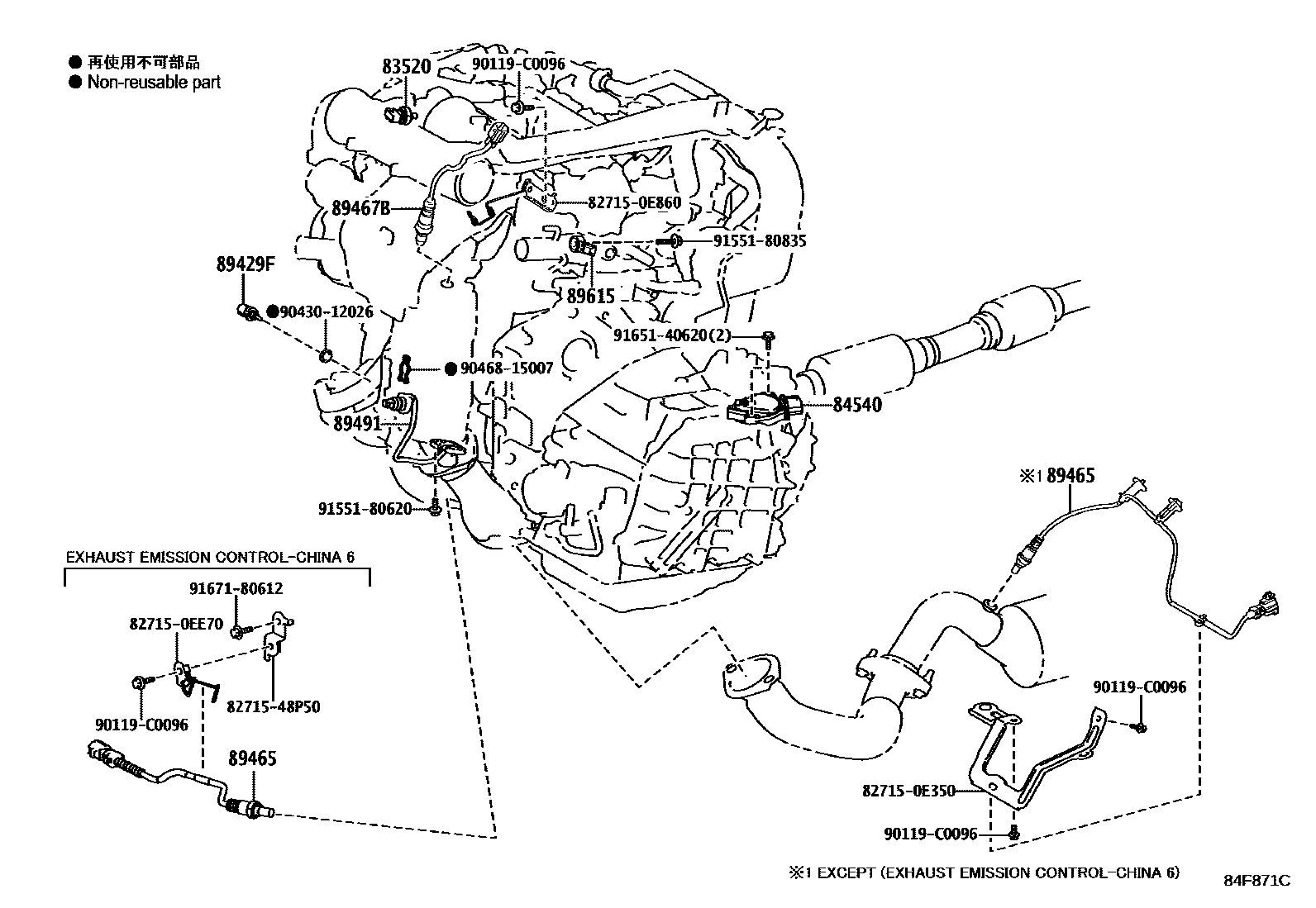

Parts diagram

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060i201503-201803

84540SWITCH ASSY, NEUTRAL START

main84540-33010i201503-201803

89429FSENSOR, TEMPERATURE

main89429-12010i201503-201803

89465SENSOR, OXYGEN

main89465-0E160i201503-201710

main89465-0E190i201503-202004

main89467-0E260i202004

89467BSENSOR, AIR FUEL RATIO

main89467-0E210i201503-201710

main89467-78010i201503-201803

89491SENSOR, ENGINE OIL LEVEL

main89491-48031i202004-202204

main89491-48032i202205

main89491-78020i201503-201808

main89491-78021i201809-202004

89615SENSOR, KNOCK CONTROL

main89615-20090i201503-201803

827150E350BRACKET,WIRING HARNESS CLAMP

main82715-0E350

827150E860BRACKET,WIRING HARNESS CLAMP

main82715-0E860

827150EE70BRACKET,WIRING HARNESS CLAMP

main82715-0EE70

8271548P50BRACKET,WIRING HARNESS CLAMP

main82715-48P50

90119C0096

main90119-C0096

9043012026

main90430-12026

9046815007

main90468-15007

9155180620

main91551-80620

9155180835

main91551-80835

9165140620

main91651-40620

9167180612

main91671-80612

18 parts on this diagram · 10 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota HIGHLANDER (CHINA)

This section contains 177 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota HIGHLANDER (CHINA). Key components include: EXHAUST PIPE, RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, SENSOR ASSY, BATTERY STATE, HOLDER, BATTERY CURRENT SENSOR.
