Toyota HIGHLANDER (CHINA) — PRE-COLLISION SYSTEM

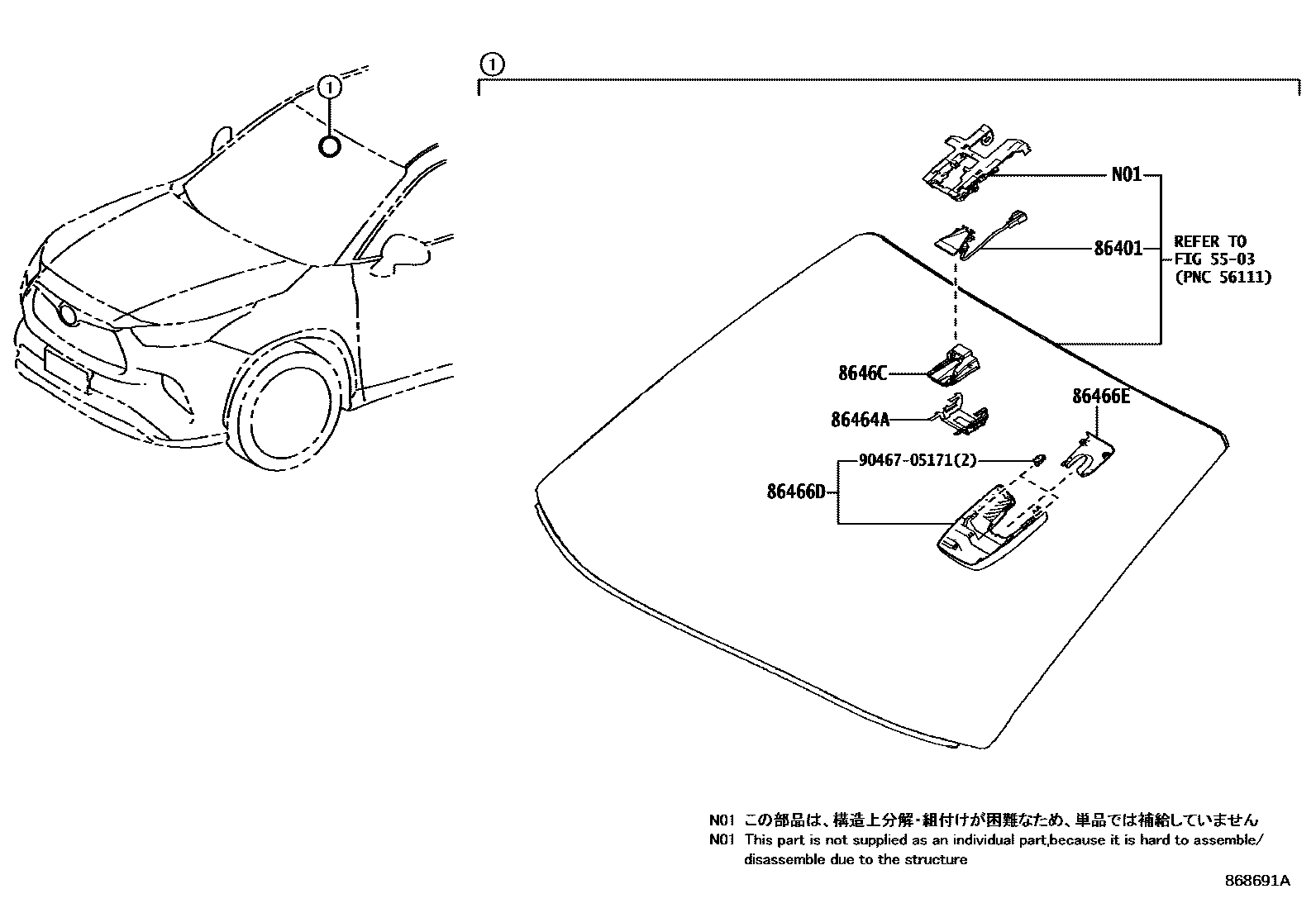

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-0E020i202108-202405

86464ALATCH, FORWARD RECOGNITION

main86464-0E010i202108-202405

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0E060i202108-202405

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-0E070i202108-202405

main86466-0E080i202405

8646CCAMERA, FORWARD RECOGNITION

main8646C-0E080i202108-202405

main8646C-0E220i202405-202408

main8646C-0E221i202408-202411

main8646C-0E340i202412

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota HIGHLANDER (CHINA)

This section contains 7 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota HIGHLANDER (CHINA). Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
