Toyota HIGHLANDER (CHINA) — MIRROR

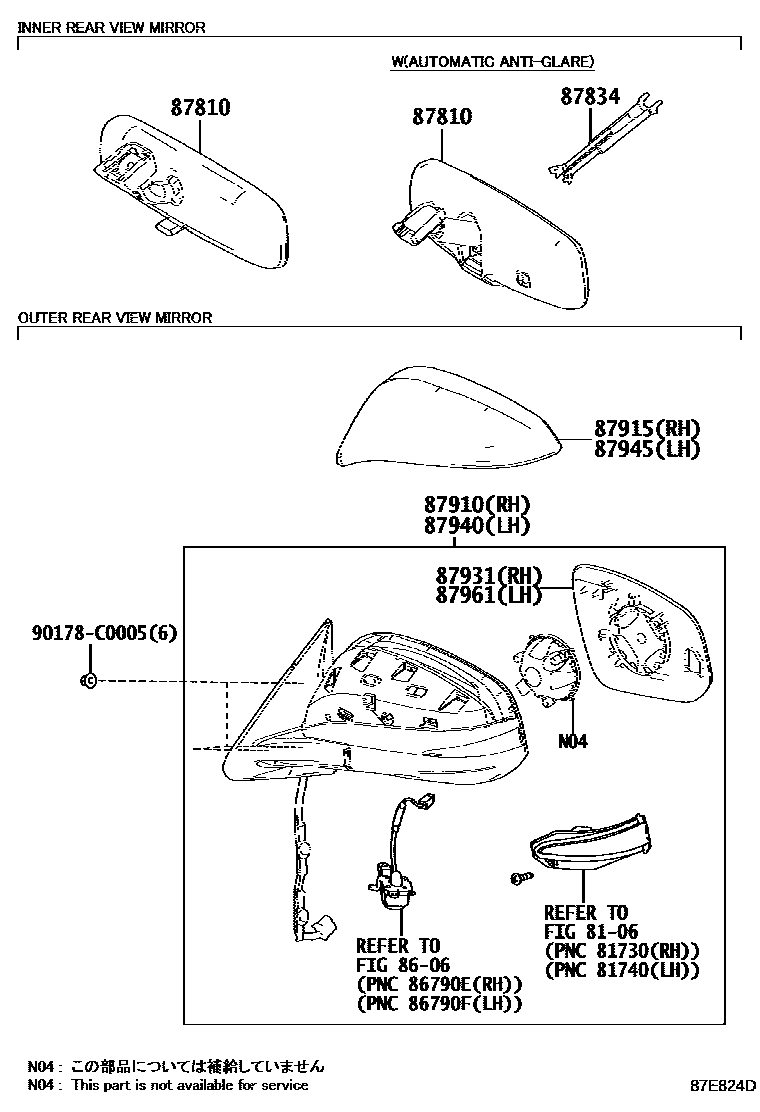

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-0E080i201503-201704
main87810-0E110i201704-201710
main87810-0E180i201803
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0E020i201503-201704
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0E200i201503-201710
NO PAINT REQ.
main87910-0E210i201503-201710
NO PAINT REQ.
main87910-0E220i201503-201710
NO PAINT REQ.
main87910-0E320i201803
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
main87915-0E901i201503-201710
PAINT REQ.
87931OUTER MIRROR, RH
main87931-0E210i201503-201803
main87931-0E220i201503-201803
main87931-0E320i201803
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0E190i201503-201710
NO PAINT REQ.
main87940-0E200i201503-201710
NO PAINT REQ.
main87940-0E210i201503-201803
NO PAINT REQ.
main87940-0E310i201803
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
main87945-0E901i201503-201803
PAINT REQ.
87961MIRROR OUTER, LH
main87961-0E200i201803
main87961-0E210i201503-201710
main87961-0E310i201803
90178C0005
main90178-C0005

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota HIGHLANDER (CHINA)

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota HIGHLANDER (CHINA). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
