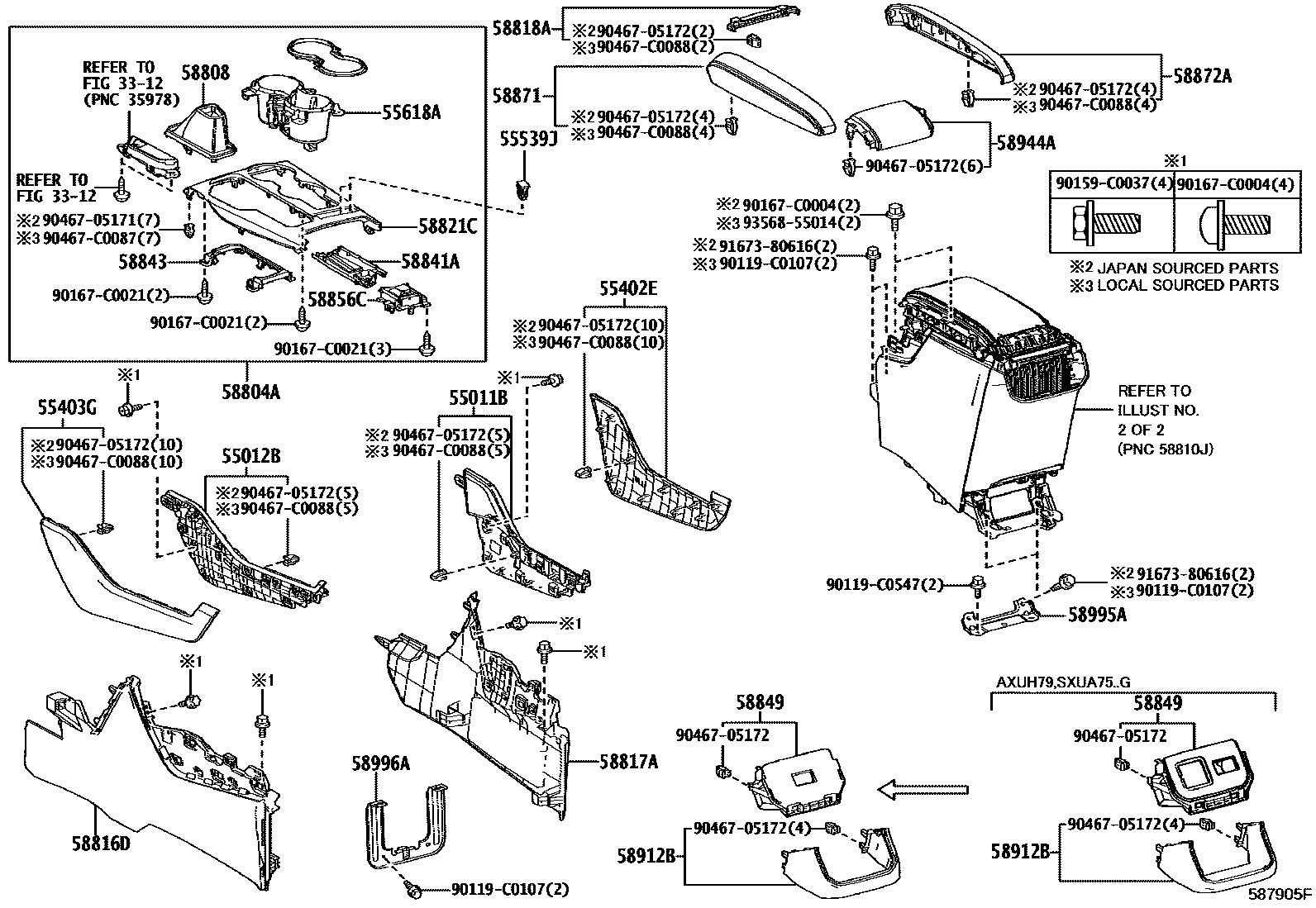

Toyota HIGHLANDER (CHINA) — CONSOLE BOX & BRACKET
3312SHIFT LEVER & RETAINER
55011BGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1
BLACK EDITION
55012BGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
BLACK EDITION
55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM40
OCHER,TRIM42
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
OCHER,TRIM42
SEAT COVER MATERIAL-NAPPA LEATHER(FOR WHITE EDITION(SPORT)),WHITE,TRIM0#
55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
OCHER,TRIM42
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM40
OCHER,TRIM4#
SEAT COVER MATERIAL-NAPPA LEATHER(FOR WHITE EDITION(SPORT)),WHITE,TRIM0#
55539JCOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
BLACK/GRAY,TRIM2#,4#
BLACK/GRAY,TRIM2#,4#
BLACK;GRAY,TRIM0#,2#,4#
BLACK;GRAY,TRIM0#,2#,4#
BLACK EDITION,BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#; BLACK,TRIM2#,4#
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
BLACK,TRIM0#,2#; BLACK,TRIM2#
NOBLE BROWN,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
58818ACOVER, CONSOLE BOX, FR
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM40
OCHER,TRIM42
WHITE EDITION,WHITE,TRIM0#
58821CPANEL, CONSOLE, UPPER
58841ACOVER, SHIFTING HOLE
58843BEZEL, SHIFTING HOLE
58849COVER, CONSOLE BOX HOLE, NO.2
58856CHOLDER, CONSOLE
58871CUSHION, CONSOLE BOX
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM40
OCHER,TRIM4#
BLACK EDITION,BLACK/BEIGE,TRIM2#
WHITE EDITION,WHITE,TRIM0#
58872ACUSHION, CONSOLE BOX, NO.2
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
OCHER,TRIM42
BLACK EDITION,BLACK/BEIGE,TRIM2#
SEAT COVER MATERIAL-NAPPA LEATHER(FOR WHITE EDITION(SPORT)),WHITE,TRIM0#
58912BBOX, REAR CONSOLE, LOWER
BLACK,TRIM0#,2#; BLACK,TRIM2#
NOBLE BROWN,TRIM4#
58944ACOVER, CONSOLE, REAR
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
OCHER,TRIM42
WHITE EDITION,WHITE,TRIM0#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
90119C0107
main90119-C0107
90119C0547
main90119-C0547
90159C0037
main90159-C0037
90167C0004
main90167-C0004
90167C0021
main90167-C0021
9046705171
main90467-05171
9046705172
main90467-05172
90467C0087
main90467-C0087
90467C0088
main90467-C0088
9167380616
main91673-80616
9356855014
main93568-55014
34 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota HIGHLANDER (CHINA)
This section contains 42 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HIGHLANDER (CHINA). Key components include: SHIFT LEVER & RETAINER, GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1, GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2.
