Toyota HIGHLANDER (CHINA) — ACCELERATOR LINK

78010FPEDAL ASSY, ACCELERATOR

main78110-06020i200905-201110

main78110-06021i201111-201205

(L)

main78110-33110i201111-201205

(J)

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-0E020i200905-201205

90119C0363

main90119-C0363

9017906274

main90179-06274

9165160620

main91651-60620

5 parts on this diagram · 1 diagram in section

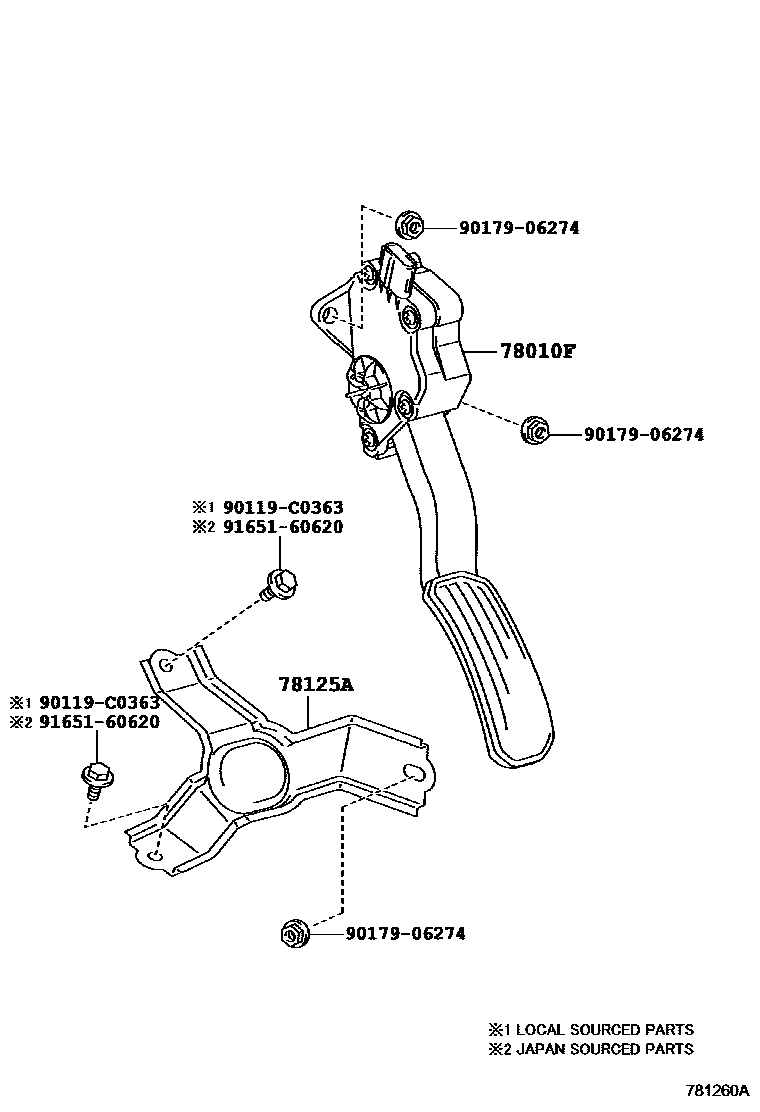

ACCELERATOR LINK for Toyota HIGHLANDER (CHINA)

This section contains 5 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HIGHLANDER (CHINA). Key components include: PEDAL ASSY, ACCELERATOR, BRACKET, ACCELERATOR PEDAL ROD, NO.2.
