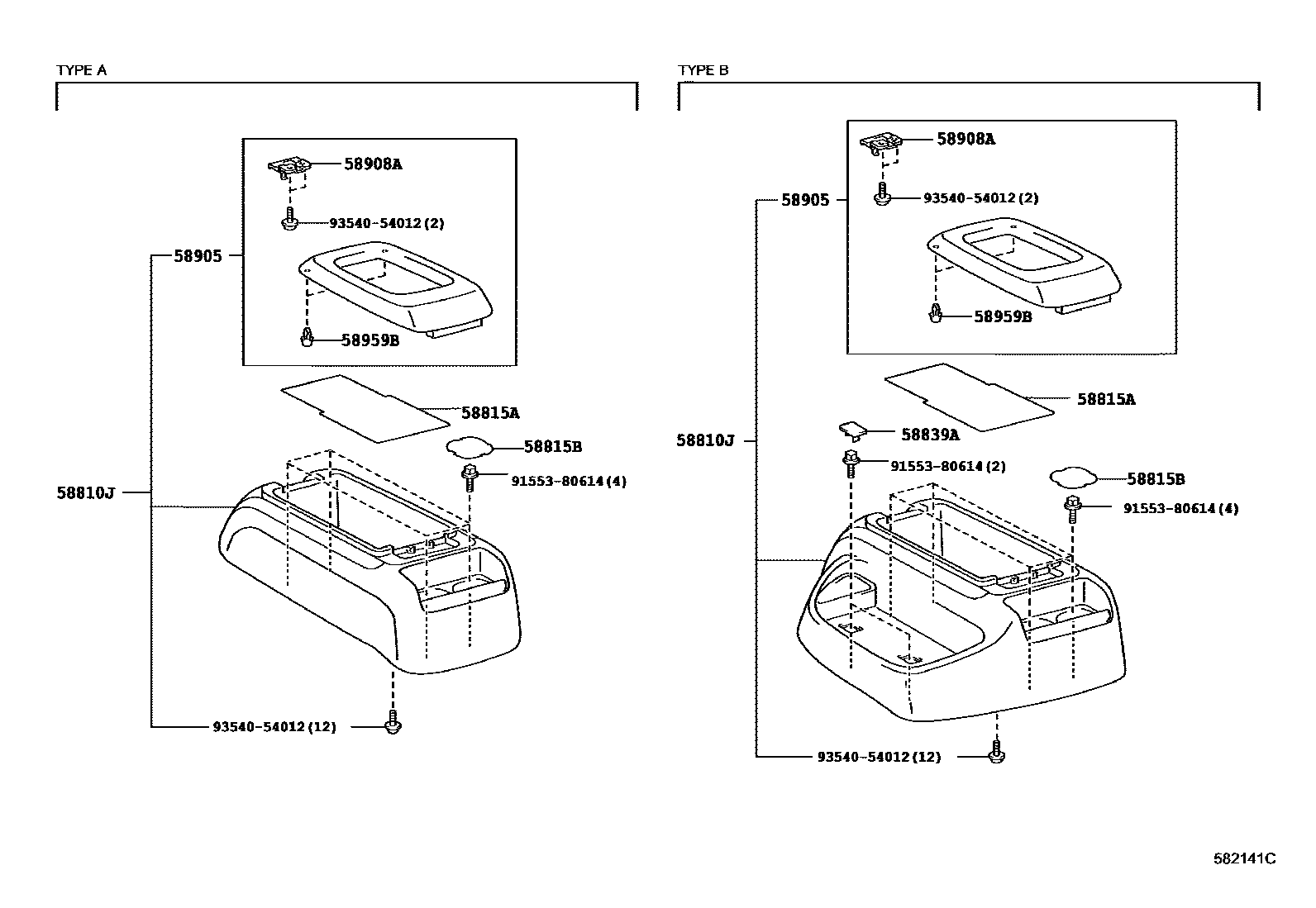

Toyota HIACE — CONSOLE BOX & BRACKET

58810JBOX ASSY, CONSOLE

main58810-26210-B0iKDH203200610-201008

GRAY,TRIM1#,TYPE A:REFER ILLUST.

main58810-26210-B1iKDH203..14S201008-201312

FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM,DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.

main58810-26220-B0iTRH213..4FC200501-201008

GRAY,TRIM1#,TYPE B:REFER ILLUST.

main58810-26220-B1iKDH223,TRH223..ARL201008-201312

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

58815ACARPET, CONSOLE BOX

main58815-26070iTRH213..4FC..GL200501-201312

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

58815BCARPET, CONSOLE BOX

main58815-26080×2iTRH213..4FC..GL200501-201312

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

58839ACOVER, CONSOLE BOX HOLE

main58839-26030-B0×2iTRH213..4FC200501-201008

GRAY,TRIM1#

main58839-26030-B1×2iKDH223,TRH223..ARL201008-201312

DK.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-26200-B0iTRH213..GL..VN;TRH223..GL..SA;KDH223,TRH213..RHD..(10S,11S,14S);KDH203,212,222..(10S,11S,14S)..(GEN,SA)200501-201008

GRAY,TRIM1#

main58905-26200-B1iKDH223,TRH223..ARL201008-201312

DK.GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-58010iTRH213..4FC..GL200501-201312

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

sub58908-12080

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iTRH213..4FC..GL200501-201312

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

9155380614

main91553-80614

9354054012

main93540-54012

9 parts on this diagram · 1 diagram in section
