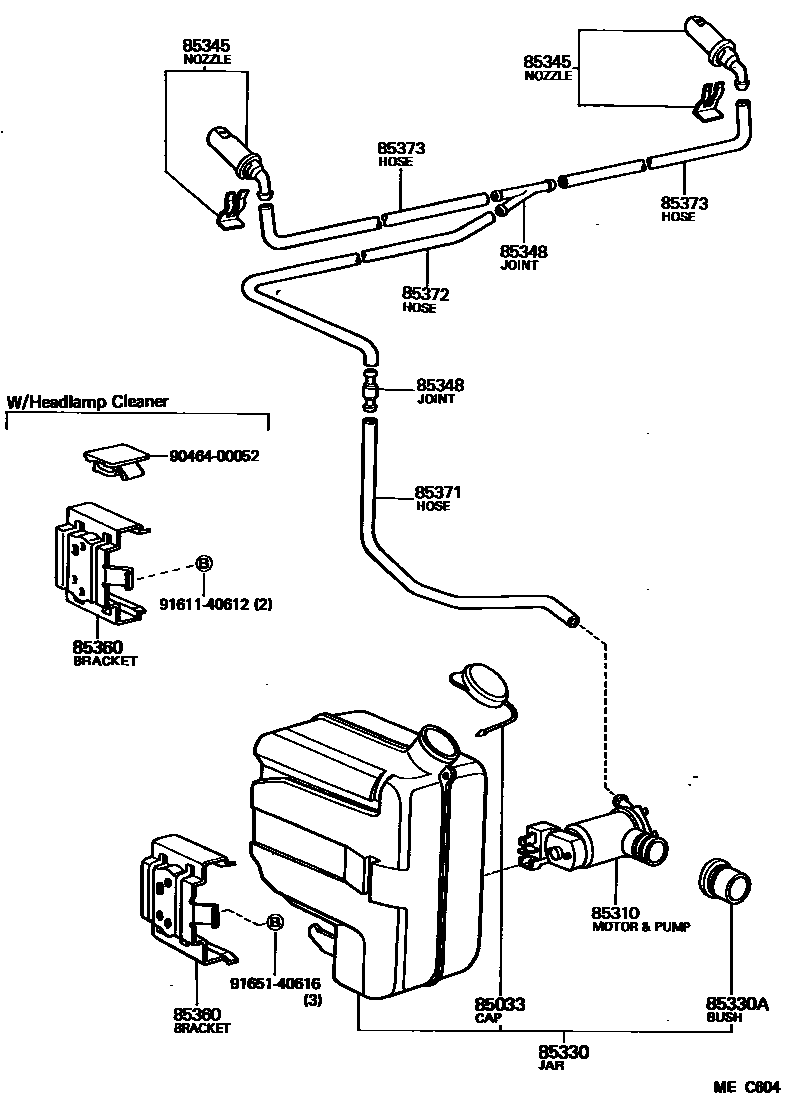

Toyota HIACE — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120i198211-198507

W/COOLER

main85332-95A01i198211-198507

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100i198211-198507

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040i198211-198507

main85330-95A02i198211-198507

W/COOLER

main85330-95A03i198211-198507

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i198211-198507

85345NOZZLE, WINDSHIELD WASHER

main85035-95A02×2i198211-198507

*FRG

main85035-95A05×2i198211-198507

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-14010i198211-198507

3 WAY TYPE

main85355-87201×2i198211-198507

2 WAY TYPE

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95A00i198211-198507

main85361-95A02i198211-198507

W/COOLER; W/HEADLAMP CLEANER

main85361-95A07i198211-198507

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-00613i198211-198507

L=2000(*H,L=400),W/COOLER

main90446-06013i198211-198507

L=1000(*H,L=280),W/HEAD LAMP CLENER; L=1450(*H,L=200)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013i198211-198507

L=1800(*H,L=950)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013×2i198211-198507

L=2000(*H,L=400)

9046400052

main90464-00052

9161140612

main91611-40612

9165140616

main91651-40616

13 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota HIACE

This section contains 13 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HIACE. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, NOZZLE, WINDSHIELD WASHER.
