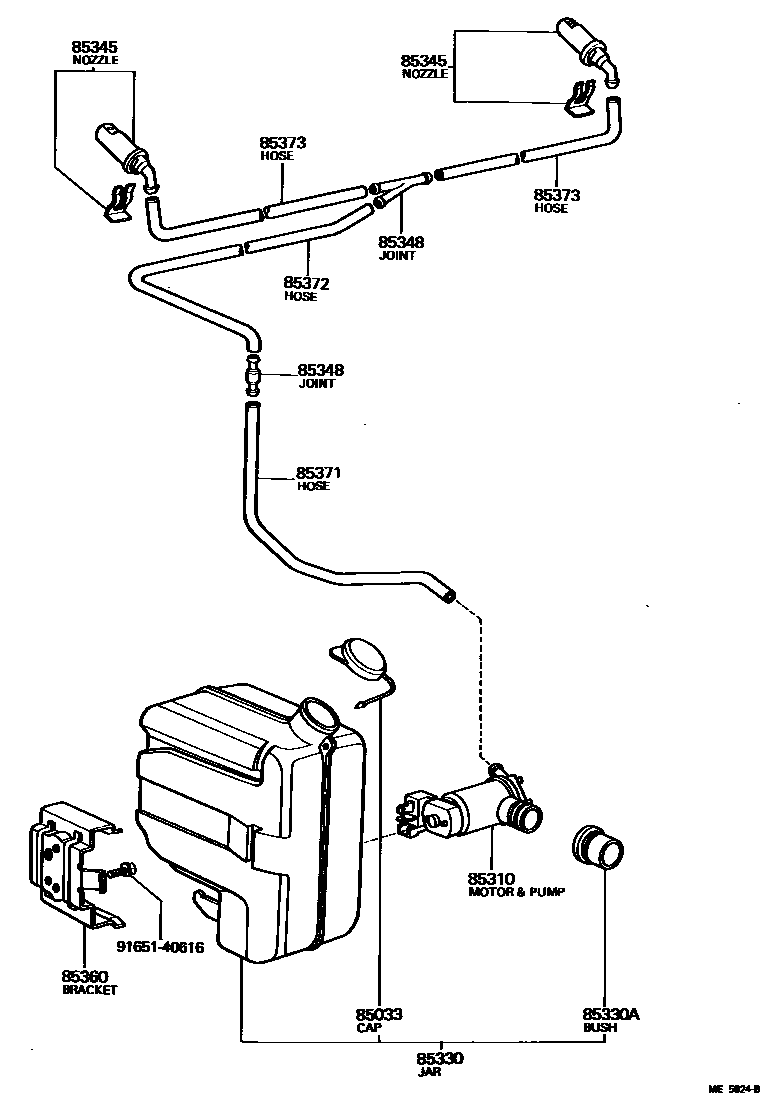

Toyota HIACE — WINDSHIELD WASHER
85033CAP ASSY, WINDSHIELD WASHER
main85033-36120iLH11,20,30,RH11,2#,3#..LHD; RH32..ARL;RH32..RHD..(06S,15S)..GEN;LH20,30,RH11,20,22,30,42..RHD..(ARL,GEN,IDN,SA)198012-198211
W/COOLER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
W/COOLER
85330ABUSH, WINDSHIELD WASHER JAR
85345NOZZLE, WINDSHIELD WASHER
WEST GERMANY SPEC
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
3 WAY TYPE
2 WAY TYPE
85360BRACKET ASSY, WINDSHIELD WASHER
main85361-95A02iLH11,20,30,RH20,25,3#..LHD..EUR; RH20..V5D..ARL;RH20..RHD..BUS..GEN;RH20..RHD..V4D..(ARL,GEN);RH11,22,3#,42..RHD..(ARL,GEN,IDN,SA)198012-198211
W/COOLER; W/HEADLAMP CLEANER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-06013iLH11,20,30,RH11,20,22,3#,42..RHD; LH11,20,30,RH11,20,22,3#..LHD; LH11,20,30,RH20,25,3#..LHD..EUR; RH32..ARL;RH32..RHD..(06S,15S)..GEN;LH20,30,RH11,20,22,30,42..RHD..(ARL,GEN,IDN,SA)198012-198211
L=1000(*H,L=400),W/COOLER; L=1450(*H,L=280); L=1450(*H,L=280),W/HEAD LAMP CLEANER; L=1800(*H,L=200)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=950)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=400)
9165140616
main91651-40616
11 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota HIACE
This section contains 11 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HIACE. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, NOZZLE, WINDSHIELD WASHER.
