Toyota HIACE — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 1/2 0007 1ENGINE ROOM 1/2 0008 1ENGINE ROOM 1/2 0009 1ENGINE ROOM 2/2 0010 1ENGINE ROOM 2/2 0011 1ENGINE ROOM 2/2 0012 1ENGINE ROOM 2/2 0013 1ENGINE ROOM 2/2 0014 1COWL 0015 1COWL 0016 1COWL 0017 1COWL 0018 1INSTRUMENT PANEL 0019 1INSTRUMENT PANEL 0020 1STEERING 0021 1STEERING 0022 1DOOR,ROOF,FLOOR & LUGGAGE

1702

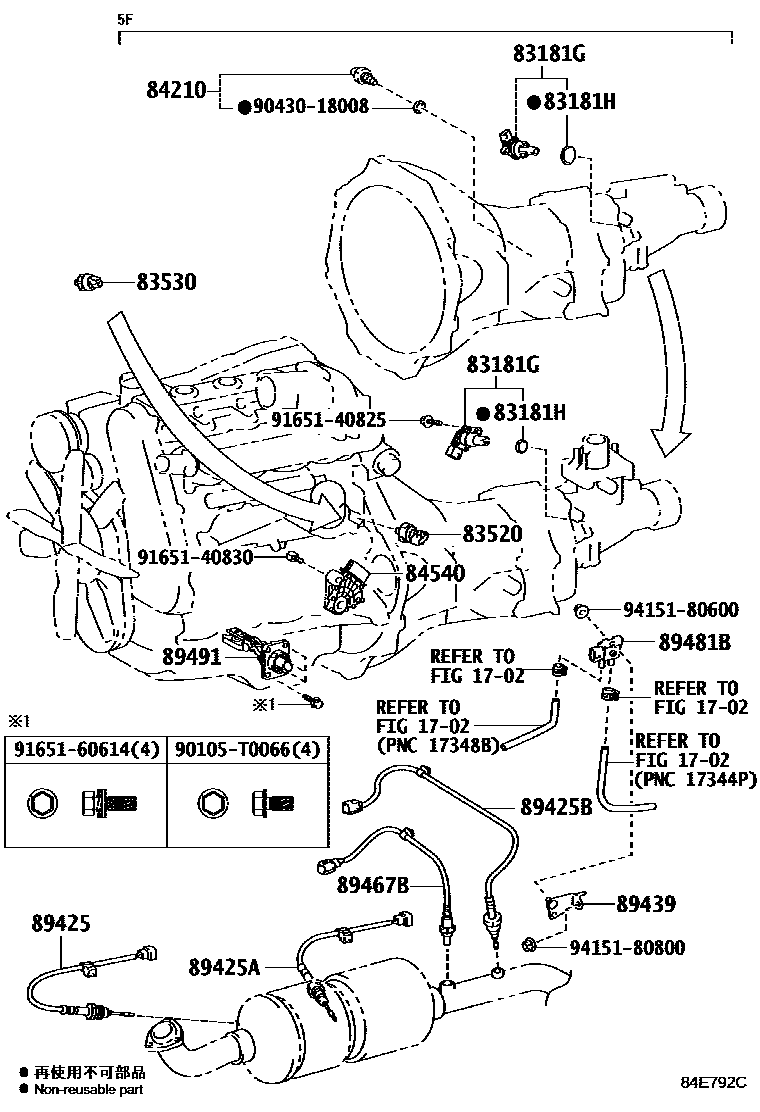

83181GSENSOR, SPEEDOMETER

main83181-24060iKDH200..LHD..4D;TRH221..SP..GEN;TRH223..GL..GEN;KDH200,TRH223..RHD..GEN201908-202507

main83181-28010iKDH213,TRH223..4FC201911-202004

main83181-35040iLH20#,212,222..4D201312-202506

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iTRH223..4FC..ARL;KDH221,222,TRH201,213,221..4FC;KDH213,223,TRH223..COM..4FC..GL;KDH201,212..(02S,05S,06S,13S)..4FC201312-202004

main90301-18018iLH200..5D201312-201901

main96711-24030iKDH222..KEN201312-202212

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iKDH201..SP..06S201312-201612

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iTRH200..6FC201312-202107

DENSO,*369

main83530-60010iKDH201..SG;KDH201..ARL;KDH221,223..RHD..(ARL,GEN)201312-201606

SINGAPORE SPEC

main83530-60020iTRH200..6FC201312-202107

YAZAKI,*369

main83530-60030iLH200..5D201908-202506

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iLH20#,212,222201312-201508

main84210-52050iLH212;LH222..RHD201508

84540SWITCH ASSY, NEUTRAL START

main84540-60050iKDH221..4FC;KDH201..(02S,05S,06S)..4FC201606

main84540-71010iKDH201,213,223..(03S,11S,13S,14S)..4FC..GEN201712-202301

main84540-71020iTRH200201312-201501

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-26172iKDH223..RUS201501-201602

main89425-26173iKDH201,203..RHD..(02S,03S)..GEN201603-202005

main89425-26176iKDH201,203,223..02S,03S,14S202005-202301

main89425-71070iGDH201201701-201901

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-26182iKDH213..5F201312-201906

main89425-71080iGDH201,223..03S,14S201701

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-26200iKDH223..RUS201501-201607

main89425-26201iKDH223..RUS201608-201701

main89425-71090iGDH201201701-201901

89439BRACKET, SENSOR

main89439-26060iKDH201..SG201606-202004

89467BSENSOR, AIR FUEL RATIO

main89465-26150supersedes 89467-26050iTRH213,223..GL..SA201911-202107

main89467-26030iKDH203..12S..GEN201312-201712

PERU SPEC

main89467-26050supersedes 89467-26050iTRH221..SG;TRH223..4FC..STD..GCC201312-201902

MEXICO SPEC&EXHAUST EMISSION CONTROL-GASOLINE TIER1.5

main89467-26060iTRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)201501-202005

main89467-26080iTRH200..03S..6FC202005-202507

main89467-60150iGDH201,223201701

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-12050iKDH201..SG201606-202004

main89481-71010iGDH201,223..03S,14S201701

89491SENSOR, ENGINE OIL LEVEL

main89491-25030iTRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)201312-201902

main89491-26160iLH200..5D201312-201901

main89491-26170supersedes 89491-26180iKDH203..12S..GEN201712

main89491-26180iKDH223..RUS201501-201701

main89491-60180iGDH201,223201701

90105T0066

main90105-T0066

9043018008

main90430-18008

9165140825

main91651-40825

9165140830

main91651-40830

9165160614

main91651-60614

9415180600

main94151-80600

9415180800

main94151-80800

21 parts on this diagram · 22 diagrams in section
