Toyota HIACE — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 1/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 1/2 0007 1ENGINE ROOM 2/2 0008 1ENGINE ROOM 2/2 0009 1ENGINE ROOM 2/2 0010 1COWL 0011 1COWL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1STEERING 0015 1STEERING 0016 1DOOR,ROOF,FLOOR,SEAT & LAGGAG

1701

1702

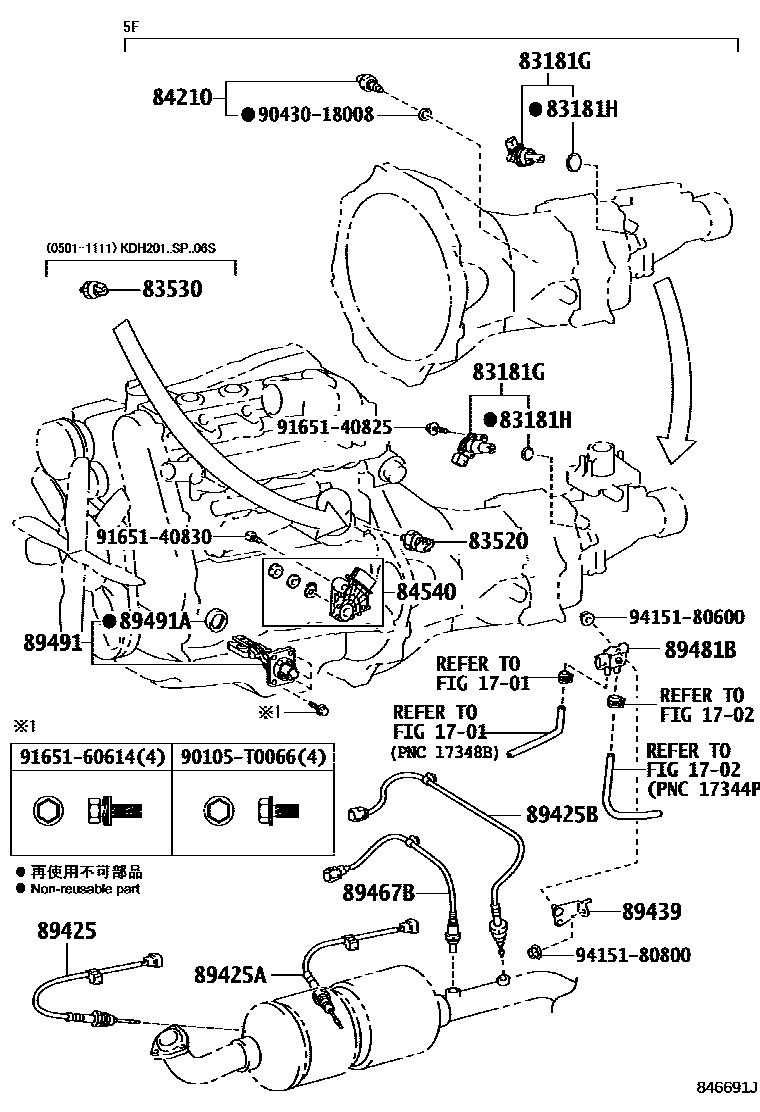

83181GSENSOR, SPEEDOMETER

main83181-24060iKDH222,223..5F..(ARL,GCC,GEN,RUS,SA);KDH20#,212,220,221,TRH201,203,213,22#..5F200501-201402

main83181-28010iKDH212..4FC200501-201008

main83181-35040iLH20#,212,222200501-201312

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iKDH212..4FC200501-201008

main90301-18018iLH20#,212,222200501-201312

main96711-24030iKDH20#,212,220,221,TRH201,203,22#..5F;KDH222,223,TRH213..5F..(ARL,GCC,GEN,RUS,SA)200501

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iKDH201,203..LHD201212-201312

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iTRH203,213,223..4FC..GCC201111-201402

DENSO

main83530-60010iKDH202..GL..TH200501-201205

main83530-60020iTRH203..5F;TRH200,201,221;TRH213,223..5F..GCC;TRH213,223..ARL,CIS,GEN,SA,TH,VN200501-201402

YAZAKI

main83530-60030iLH20#,212,222200501-201312

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iTRH203..12S..GEN;KDH202,221,TRH201..RHD..4D..(03S,12S)..5F..STD..(GEN,TH)201005-201312

main84210-12040iLH20#,212,222201005-201008

main84210-52050iKDH20#,212,22#,TRH201,203,213,22#..5F201206-201402

84540SWITCH ASSY, NEUTRAL START

main84540-35050iTRH201,213,22#..4FC200501-200709

main84540-71010iTRH213,223..4FC..(GCC,TH);KDH200,201,202,212,22#,TRH203..4FC200501-201312

main84540-71020iTRH200201308-201312

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-26171iKDH201,203..LHD201212-201304

main89425-26172iKDH201,203..LHD;KDH201..SP..06S201305-201312

sub89425-26173

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-26181iKDH201..SP..06S201111-201307

main89425-26182iKDH201,203..LHD;KDH201..SP..06S201308-201312

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-26200iKDH201,203..LHD201212-201312

sub89425-26201

89439BRACKET, SENSOR

main89439-26060iKDH201,203..LHD201212-201312

89467BSENSOR, AIR FUEL RATIO

main89465-26120supersedes 89465-26120iTRH203..HRF;TRH201,203,213,22#..5F..(GCC,SA,VN)200501-201402

main89467-26020iTRH213,223..(10S,13S)..GEN200501-201205

main89467-26030iKDH201,203..LHD201212-201312

main89467-26050iTRH213,223..(10S,13S)..GEN201205-201312

CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-12050iKDH201..SP..06S201110-201312

89491SENSOR, ENGINE OIL LEVEL

main89491-25030iTRH203,213,223..4FC..GCC201111-201402

main89491-26160iLH20#,212,222200501-201312

main89491-26170iKDH202..GL..TH200501-201205

main89491-26180iKDH201..SP..06S201111-201312

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iKDH221..5D;TRH201..SG..4FC;TRH203..15S..GEN;TRH201,203..4D..(ARL,GCC,MA,SA);TRH213..(10S,16S)..(GCC,GEN,SA);KDH202,TRH213..(HRF,SMRF)..(MA,TH);KDH212..(10S,11S,16S)200501-201402

90105T0066

main90105-T0066

9043018008

main90430-18008

9165140825

main91651-40825

9165140830

main91651-40830

9165160614

main91651-60614

9415180600

main94151-80600

9415180800

main94151-80800
