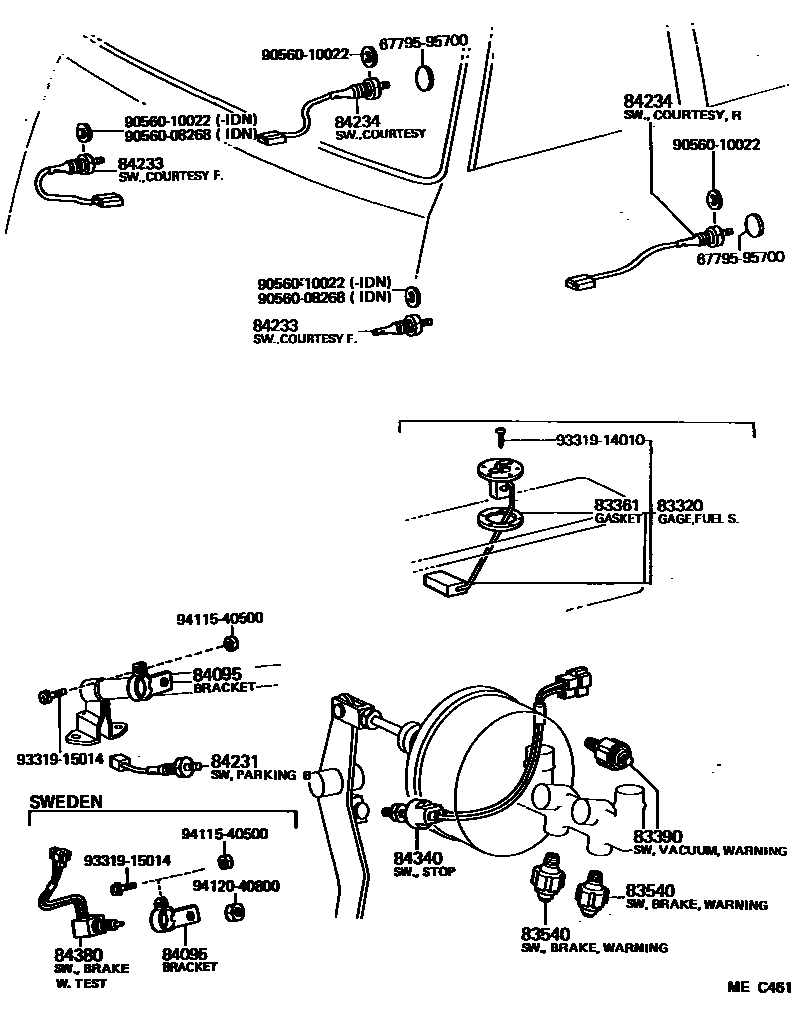

Toyota HIACE — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

83320GAGE ASSY, FUEL SENDER

main83320-29345iLH11,RH11198211-198507

83361GASKET, FUEL SENDER GAGE

main83361-20030iLH11,RH11198211-198507

83390SWITCH ASSY, VACUUM WARNING

main83390-30020iLH11198211-198507

83540SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)

main84390-30011×2iRH11..LHD..(T1,TW)..EUR198211-198507

SWEDEN SPEC

84095BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH

main84956-26020iLH11,RH11198211-198507

main84956-30021iLH11..LHD..EUR..IV198211-198507

SWEDEN SPEC

84231SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)

main84550-20030iLH11,RH11198211-198507

84233SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

main84231-20010×2iLH11..IDN198211-198507

sub84230-12080

main84231-95A00×2iLH11,RH11..ARL,EUR,GEN198211-198507

84234SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

main84231-95A03×2iLH11,RH11..TW198211-198507

84340SWITCH ASSY, STOP LAMP

main84340-12012iLH11..LHD..EUR..IV198211-198507

SWEDEN SPEC

main84340-22072iLH11,RH11198211-198507

84380SWITCH ASSY, BRAKE WARNING TEST

main84380-20010iLH11..LHD..EUR..IV198211-198507

SWEDEN SPEC

6779595700BUMPER, FRONT DOOR SWITCH

main67795-95700

9056008268

main90560-08268

9056010022

main90560-10022

9331914010

main93319-14010

9331915014

main93319-15014

9411540500

main94115-40500

9412040800

main94120-40800

17 parts on this diagram · 4 diagrams in section
