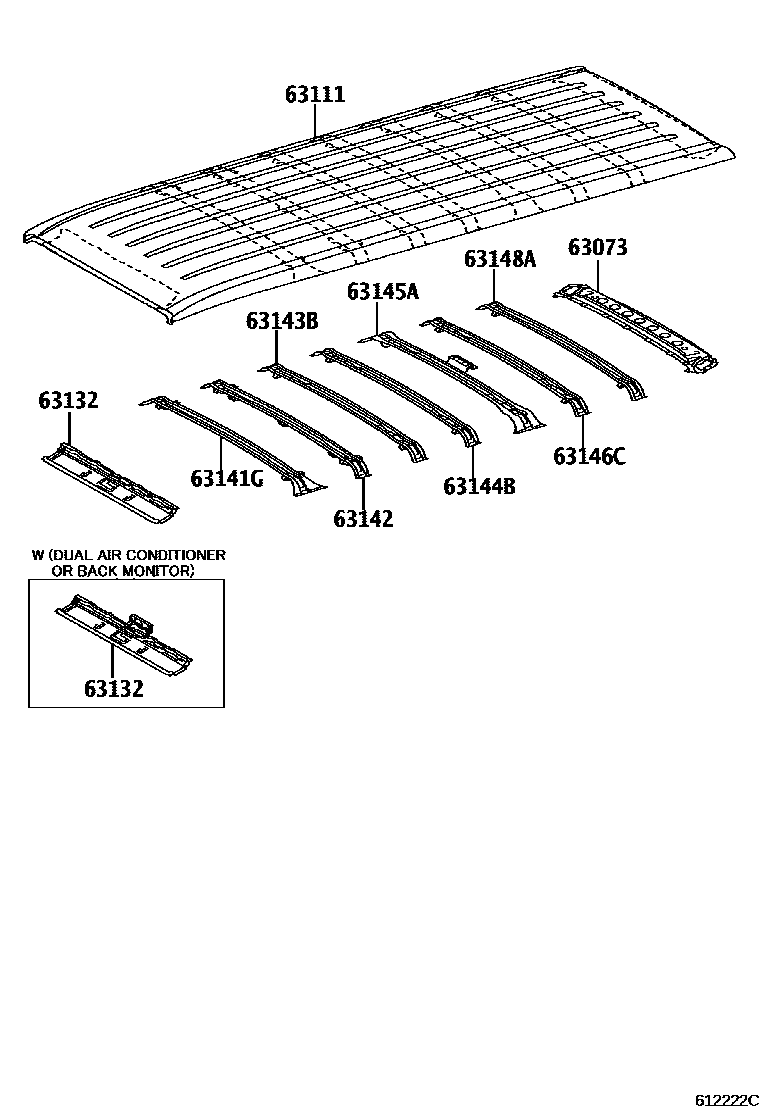

Toyota HIACE — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

63073FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER

main63073-26070iKDH20#,LH20#,TRH20#..SRF200501-201401

main63073-26090iKDH202,TRH201,203..HRF200505-201401

main63073-26110iKDH212,LH212,TRH213200501-201312

main63073-26120iKDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA)200501-201402

main63073-26130supersedes 63073-26120iKDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS200501-201401

63111PANEL, ROOF

main63111-26470iKDH20#,LH20#,TRH20#..SRF200501-200910

main63111-26471iKDH20#,LH20#,TRH20#..SRF200911-201401

main63111-26480iKDH202,TRH201,203..HRF200505-201401

main63111-26490iKDH212,LH212,TRH213200501-201312

main63111-26500iTRH223..STD..SA200501-200904

main63111-26530iKDH222,TRH223..STD..SA200904-201402

63132PANEL, WINDSHIELD HEADER, INNER

main63102-26090supersedes 63132-26080iKDH201..SP..06S;KDH202..SRF..(MA,TH);KDH203,TRH200..RHD..(06S,12S)200602-201401

main63102-26140iKDH202,TRH201,203..HRF200505-201401

main63102-26150iKDH212,LH212,TRH213200501-201312

main63102-26160iKDH222..TH200501-201205

main63132-26080iKDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)200501-201401

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-26260iKDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)200501-201401

main63103-26270supersedes 63103-26270iKDH201..SP..06S;KDH202..SRF..(MA,TH);KDH203,TRH200..RHD..(06S,12S)200602-201401

main63103-26280iTRH201..SG..03S200505-201312

main63103-26290iKDH202,TRH203..HRF200602-201401

main63103-26300supersedes 63141-26200iKDH212,TRH213..GL;KDH212,TRH213..STD..VN200501-201312

AIR CONDITIONER-DUAL AIR CONDITIONER

main63103-26310iKDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA)200501-201402

main63103-26320supersedes 63103-26310iKDH222,TRH223..TH201212-201401

main63141-26210iKDH222,TRH223..16S..GL200501-201008

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-26170supersedes 63104-26280iKDH201..SP..06S;KDH202..SRF..(MA,TH);KDH203,TRH200..RHD..(06S,12S)200602-201401

main63104-26180iTRH201..SG..03S200505-201312

main63104-26190iKDH202,TRH203..HRF200602-201401

main63104-26200supersedes 63104-26230iKDH212,TRH213..GL;KDH212,TRH213..STD..VN200501-201312

AIR CONDITIONER-DUAL AIR CONDITIONER

main63104-26220supersedes 63104-26250iKDH222,TRH223..16S..5F..GL201008-201401

main63104-26240iKDH222,TRH223..16S..GL200501-201008

main63104-26250iKDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA)200501-201402

main63104-26280iKDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)200501-201401

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63105-26140iKDH20#,LH20#,TRH20#..SRF200501-201401

main63105-26150iKDH202,TRH201,203..HRF200505-201401

main63105-26170iKDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA)200501-201312

main63105-26230iKDH222,LH222,TRH22#..SG..STD..(GCC,GEN)200501-200512

AIR CONDITIONER-DUAL AIR CONDITIONER

main63105-26250iKDH222,TRH223..STD..SA200904-201402

main63143-26160iKDH212,LH212,TRH213200501-201312

main63143-26170supersedes 63105-26170iKDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS200512-201401

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63105-26140iKDH20#,LH20#,TRH20#200408-200505

main63106-26040iKDH202,TRH201,203..HRF200505-201401

main63106-26070iKDH212,LH212,TRH213200501-201312

main63106-26090iTRH223..STD..SA200501-200904

main63106-26100supersedes 63106-26090iKDH222,TRH223..TH201212-201401

main63106-26110iKDH222,223,TRH223..GL200501-201312

main63106-26120iKDH20#,LH20#,TRH20#..SRF200506-201401

main63109-26010iKDH222,TRH223..STD..SA200904-201402

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63107-26040iKDH20#,LH20#,TRH20#..SRF200501-201401

main63107-26070iKDH202,TRH201,203..HRF200505-201401

main63107-26090iKDH212,LH212,TRH213..STD200501-201312

main63107-26100iKDH212,TRH213..GL200501-201312

main63107-26120iKDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA)200501-201402

main63107-26130supersedes 63107-26120iKDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS200501-201401

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63105-26140iKDH20#,LH20#,TRH20#..SRF200501-201401

main63106-26040iKDH202,TRH201,203..HRF200505-201401

main63106-26070iKDH212,LH212,TRH213200501-201312

main63106-26080iKDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA)200501-201402

main63106-26110supersedes 63106-26080iKDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS200501-201401

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63104-26160iKDH20#,LH20#,TRH20#..SRF200501-201401

main63105-26190iKDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA)200501-201402

main63105-26230iKDH222,LH222,TRH22#..SG..STD..(GCC,GEN)200501-200512

AIR CONDITIONER-DUAL AIR CONDITIONER

main63143-26170supersedes 63105-26190iKDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS200512-201401

main63207-26040iKDH202,TRH201,203..HRF200505-201401

main63207-26070iKDH212,LH212,TRH213200501-201312
