Toyota HIACE — REAR BODY ASSEMBLY

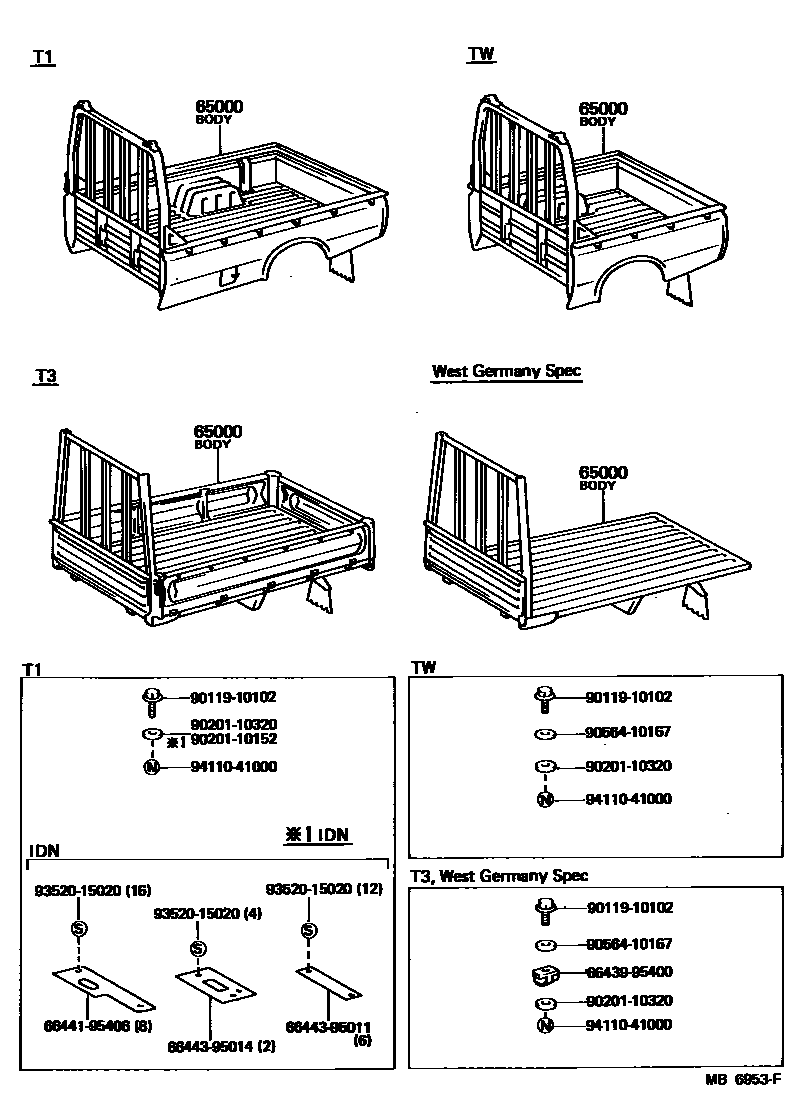

Parts diagram

65000BODY ASSY, REAR

main65000-95A06i197702-198211

main65000-95A07i197702-198211

main65000-95A08i197702-198211

main65000-95A09i197702-198211

main65000-95A10i197702-198211

main65000-95A15i197803-197810

WEST GERMANY SPEC

main65000-95A19i197912-198211

main65000-95A20i198003-198211

6643995400SHIM, SUPPORT

main66439-95400

6644195406SHIM, MOUNTING, NO.1

main66441-95406

6644395011SHIM, MOUNTING, NO.3

main66443-95011

6644395014SHIM, MOUNTING, NO.3

main66443-95014

9011910102

main90119-10102

9020110152

main90201-10152

9020110320

main90201-10320

9056410167

main90564-10167

9352015020

main93520-15020

9411041000

main94110-41000

11 parts on this diagram · 1 diagram in section

REAR BODY ASSEMBLY for Toyota HIACE

This section contains 11 genuine Toyota parts for the REAR BODY ASSEMBLY system of the Toyota HIACE. Key components include: BODY ASSY, REAR, SHIM, SUPPORT, SHIM, MOUNTING, NO.1, SHIM, MOUNTING, NO.3.
