Toyota HIACE — PARTIAL ENGINE ASSEMBLY

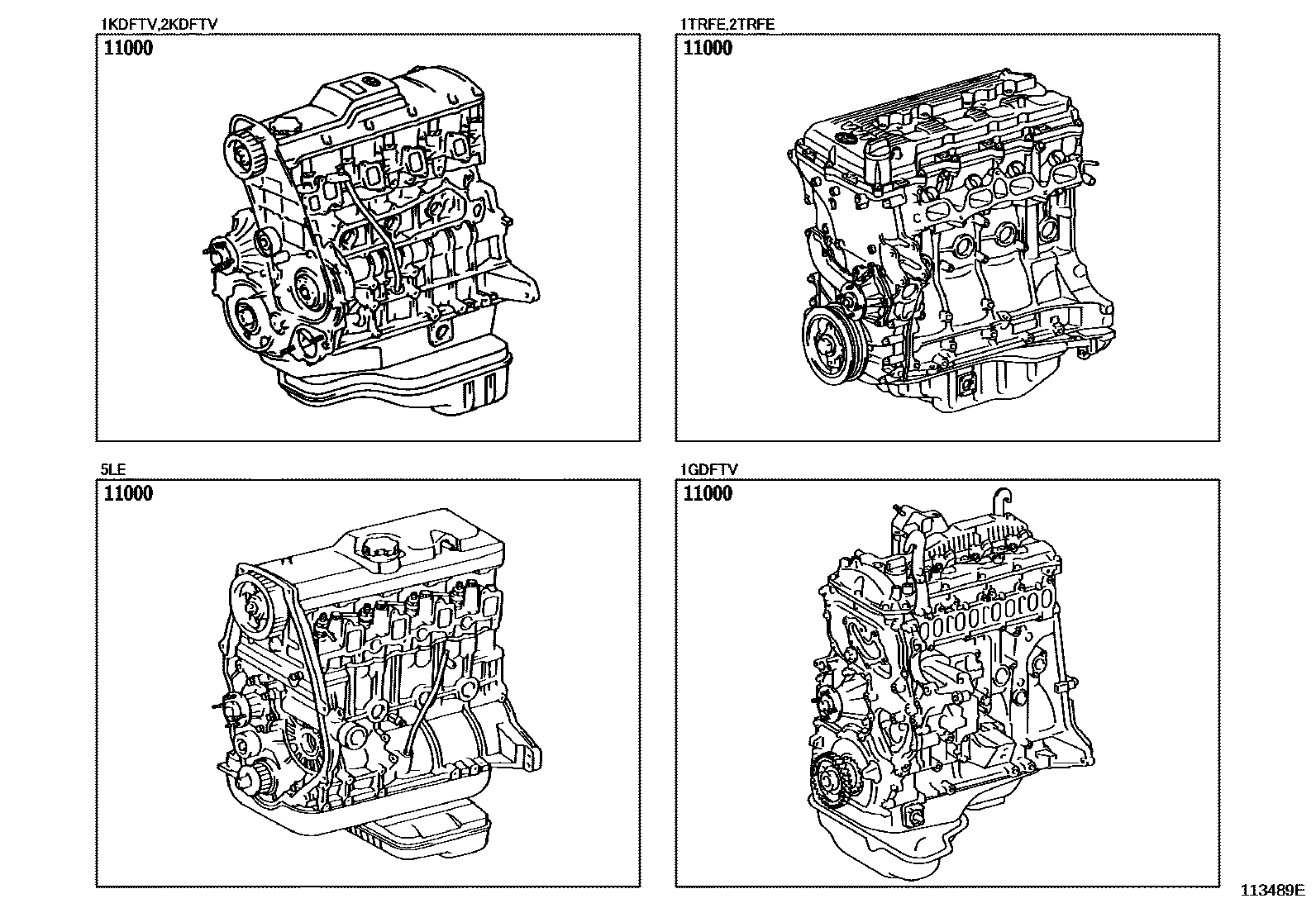

11000ENGINE ASSY, PARTIAL

main19000-0C141i2TRFE..TRH203..MA201401-201611

main19000-0L160i2KDFTV..KDH200,202..MA201401-202312

main19000-0L250i1KDFTV..KDH203,223..TH,VN201401-201904

sub19000-30A70

main19000-11A50i1GDFTV..GDH201,223201701

main19000-30170i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-201902

main19000-30640i1KDFTV..KDH201..SG;1KDFTV..KDH201..TH;1KDFTV..KDH201..02S;1KDFTV..KDH213,221,223..02S,03S,11S,12S,14S201312-201411

sub19000-30641

main19000-30740i1KDFTV..KDH203..GEN;1KDFTV..KDH201..SP..(03S,06S)..GEN201312-201411

SINGAPORE SPEC

sub19000-30741

main19000-30870i1KDFTV..KDH223..GEN;1KDFTV..KDH203,213..11S,13S,15S;1KDFTV..KDH201..4D..5F..(GEN,TH)201411-201702

CBU PACKAGE

sub94151-80600

main19000-30871supersedes 19000-30A30i1KDFTV..KDH201,223..4D..5F..GEN201702-201711

PHILIPPINE SPEC

main19000-30880i1KDFTV..KDH223..RUS201501-201612

sub94151-80600

main19000-30881i1KDFTV..KDH201..02S..ARL;1KDFTV..KDH203,213,221..(02S,03S,10S,12S)..(ARL,GEN);1KDFTV..KDH201,223..(03S,05S,06S,14S)..STD..(ARL,GEN)201702-201711

main19000-30A30supersedes 19000-30A40i1KDFTV..KDH223..GEN,KEN,RUS;1KDFTV..KDH201..4D..5F..(GEN,MA,TH);1KDFTV..KDH203,213..(11S,13S,15S)..GEN201711

main19000-30A40i1KDFTV..KDH201..02S..ARL;1KDFTV..KDH203,213,221..02S,03S,10S;1KDFTV..KDH201,223..(03S,05S,06S,14S)..STD..(ARL,GEN)201711-202301

main19000-54B40i5LE..LH200..5D201908-202506

main19000-75F81i1TRFE..TRH200201312-201501

sub19000-75F83

sub12261-75150

main19000-75J01i2TRFE..TRH223..TH201401-201607

sub12261-75150

main19000-75J03i2TRFE..TRH223..TH201607-201904

main19000-75L21i2TRFE..TRH223..LHD..STD..GEN201312-201405

NIGERIA SPEC

main19000-75L22supersedes 19000-75L32i2TRFE..TRH22#..(06S,16S)..SA;2TRFE..TRH201,203,213..4D..5F..STD..(GCC,SA)201405-202005

main19000-75L31i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GL..GEN201312-201405

PAKISTAN SPEC

main19000-75L32supersedes 19000-75L32i2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS)201405-201501

LPG CONVERSION PACKAGE

main19000-75L41i2TRFE..TRH201,203,223..(03S,15S,16S)..5F..STD..GCC201312-201405

IRAQ SPEC

main19000-75L42i2TRFE..TRH201,203,223..(03S,15S,16S)..5F..STD..GCC201405-201501

IRAQ SPEC

sub19000-75L43

main19000-75M40i1TRFE..TRH200201501-202010

main19000-75M41i1TRFE..TRH200202010-202107

*525

main19000-75M60i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)201501-201902

LPG CONVERSION PACKAGE

sub19000-75N50

main19000-75N30i2TRFE..TRH201,203,223..STD..(GEN,SA)202005

*525

main19000-75N40supersedes 19000-75N30i2TRFE..TRH213..RHD..GEN202005-202312

*525

main19000-75M50i2TRFE..TRH201,22#..ARL201501-201902

LPG CONVERSION PACKAGE

1 parts on this diagram · 1 diagram in section
