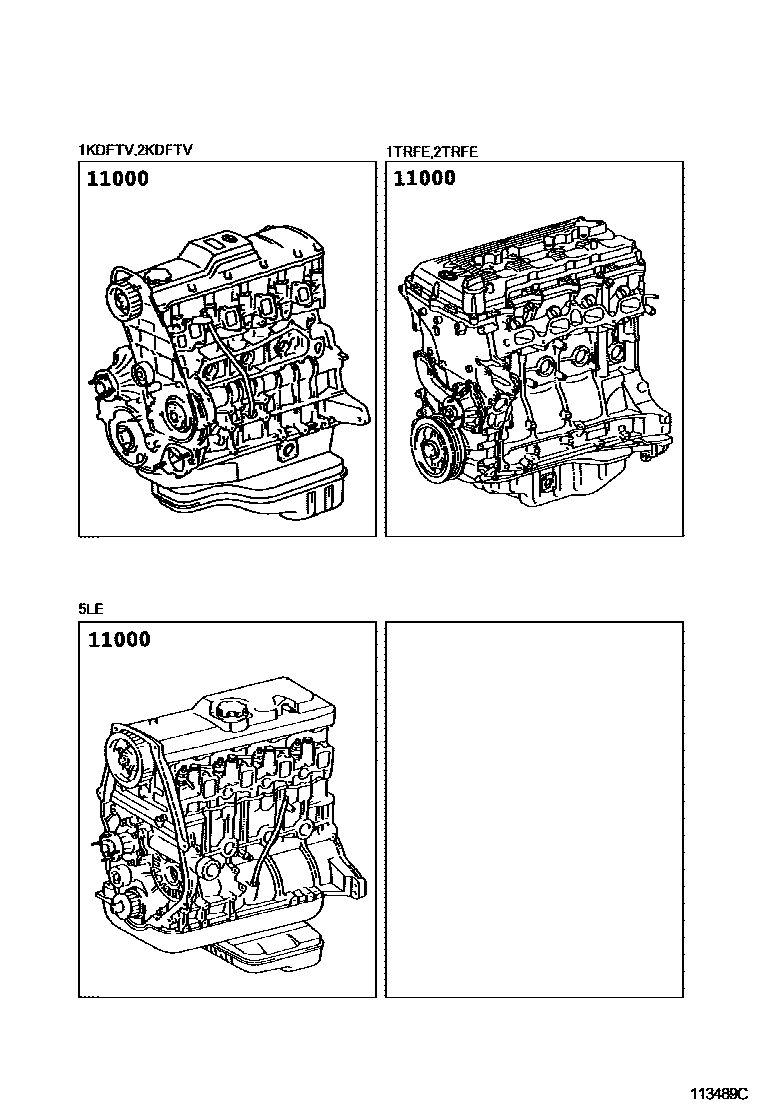

Toyota HIACE — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0C140i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201107

sub15330-75010

main19000-0C141i2TRFE..TRH203,213..MA,VN201107-201401

main19000-0L160i2KDFTV..KDH212..STD200508-200512

main19000-0L250i1KDFTV..KDH203..TH201309-201401

sub19000-30A70

main19000-30170i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).200501-200903

main19000-30530i1KDFTV..KDH201,203,221,223200610-200801

main19000-30531i1KDFTV..KDH201,203,221,223200801-201008

sub19000-30532

main19000-30640i1KDFTV..KDH201,203..LHD201008-201212

sub19000-30641

main19000-30740i1KDFTV..KDH201,203..LHD201212-201312

sub19000-30741

main19000-54B40i5LE..LH20#,212,222200501-201312

main19000-75F81i1TRFE..TRH200201308-201312

sub19000-75F83

sub12261-75150

main19000-75F90supersedes 19000-75G80i2TRFE..TRH20#..LHD..SRF..GEN;2TRFE..TRH223..LHD..STD..GEN200501-200709

EL SALVADOR SPEC

main19000-75G00i2TRFE..TRH201,221..5D..03S..GEN200501-200709

MEXICO SPEC

main19000-75G80i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH213..RHD..STD..GEN;2TRFE..TRH20#..SRF..(03S,12S,15S)..GEN200501-200709

main19000-75J00i2TRFE..TRH223..TH200610-201008

sub15330-75010

main19000-75J01i2TRFE..TRH223..TH201008-201401

sub19000-75J03

sub12261-75150

main19000-75L20i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH20#,213..LHD..(SMRF,SRF)..(03S,12S,16S)..GEN200709-201008

EL SALVADOR SPEC

sub15330-75010

main19000-75L21i2TRFE..TRH201,203,213,22#..5F..(GCC,SA)201008-201402

sub19000-75L22

main19000-75L30i2TRFE..TRH201,221..5D..03S..GEN200709-201008

PERU SPEC

sub15330-75010

main19000-75L31i2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..SP..03S..GEN201008-201312

PERU SPEC

sub19000-75L32

main19000-75L40i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200709-201008

sub15330-75010

main19000-75L41i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH201,203,213..(SMRF,SRF)..(03S,15S,16S)..GEN201008-201312

sub19000-75L42

1 parts on this diagram · 1 diagram in section
