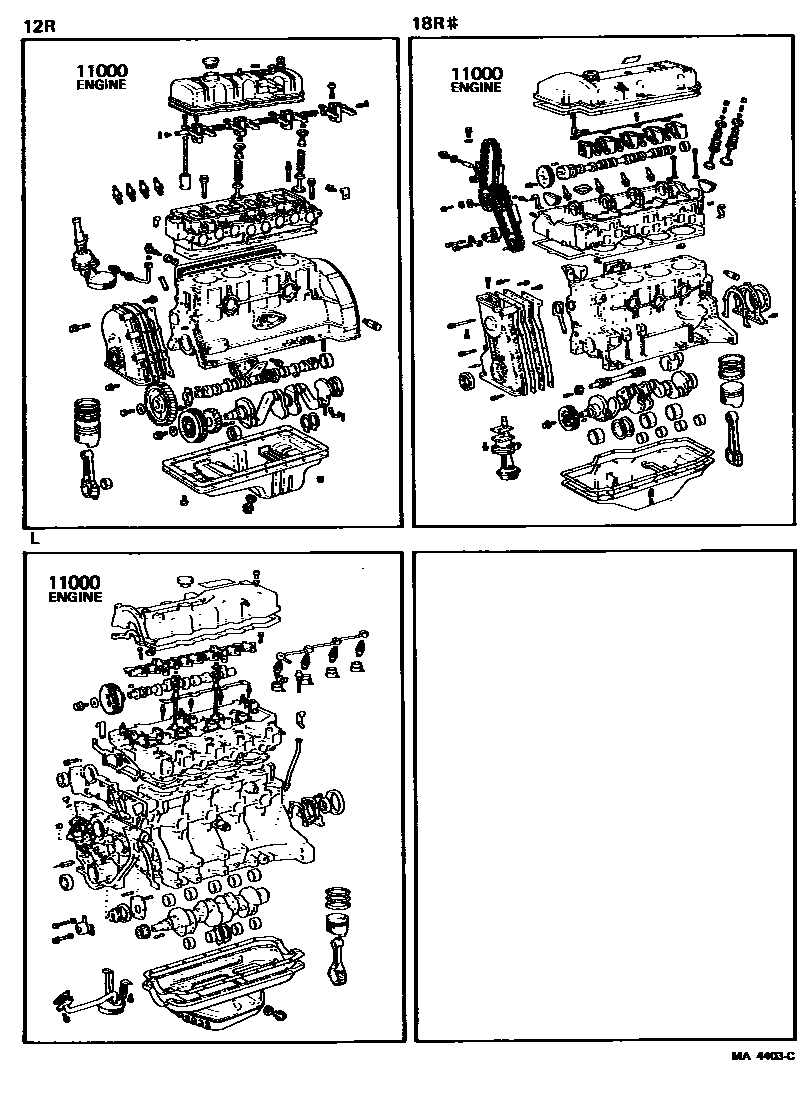

Toyota HIACE — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-31221i12R..RH11,20,30197702-197808

sub15301-31050

main19000-31250i12R..RH11,20..ARL197702-197808

NEW SOUTH WALES & VICTORIA

main19000-31251i12R..RH11,20..ARL197808-198001

NEW SOUTH WALES & VICTORIA

main19000-31252i12R..RH11,20..ARL198001-198211

NEW SOUTH WALES & VICTORIA

main19000-31270i12R..RH11,20,30197808-198001

main19000-31271i12R..RH11,20,30198001-198211

sub19000-31272

main19000-34380i18R..RH22,32,42..ARL,GEN,SA197702-197807

sub90344-53011

main19000-34390i18R..RH22,32..ARL197706-198104

18RC

sub25601-34021

sub25601-34041

main19000-34391i18R..RH22,32..ARL198104-198211

18RC

main19000-34450i18R..RH32..EUR197708-197807

main19000-54030iL..LH11,20197901-197909

main19000-54040iL..LH11,20,30197909-198105

sub11321-54013

main19000-54041iL..LH11,20,30198105-198107

main19000-54042iL..LH11,20,30198107-198108

sub11354-54010

sub11355-54030

sub91611-40814

main19000-54093iL..LH11,20,30198108-198202

main19000-54094iL..LH11,20,30198202-198204

sub11321-54014

sub13568-54050

sub13613-54020

sub90109-08087

sub90170-08184

sub94611-10800

main19000-54095iL..LH11,20,30198204-198205

sub11321-54014

sub13568-54050

sub13613-54020

main19000-54096iL..LH11,20,30198205-198211

sub19000-54410

1 parts on this diagram · 1 diagram in section
