Toyota HIACE — METER

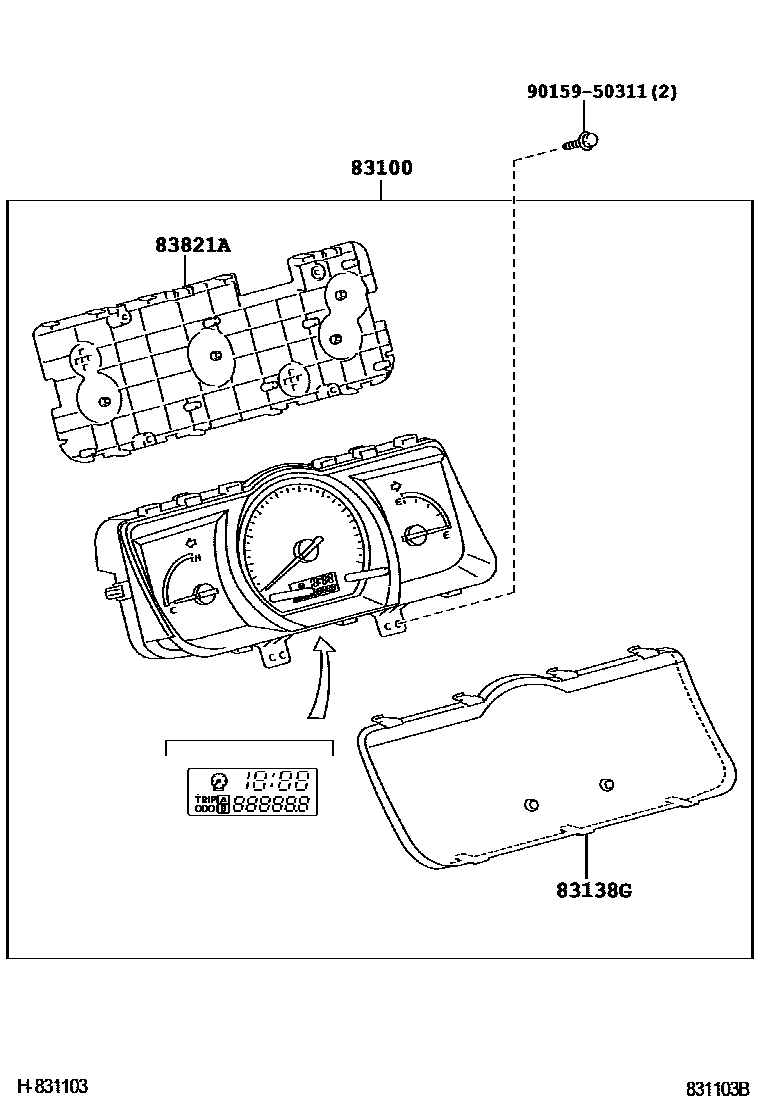

83100METER ASSY, COMBINATION
main83800-26A50supersedes 83800-26B20iTRH201,22#..5F..ARL; TRH223..CIS;TRH213..RHD..STD;TRH20#,22#..(03S,12S,15S,16S)..STD..GEN200501-200609
SOUTH AFRICA SPEC
main83800-26A51iTRH223..CIS;TRH20#,213,22#..(03S,12S,14S,15S,16S)..5F..STD..(ARL,GEN,MA,SA)200610-200801
main83800-26A52iTRH223..CIS;TRH201,203,213,22#..(03S,12S,14S,15S,16S)..5F..STD..(ARL,GEN,MA,SA)200802-201402
main83800-26A60iTRH223..5F..ARL; TRH223..5F..GL..GEN;TRH201,213..(06S,09S,10S)..5F..GEN200501-200609
NEW ZEALAND SPEC
main83800-26A61iTRH213,223..STD..(TH,VN);TRH223..5F..GL..(GEN,SA);TRH201,213..(06S,09S,10S)..5F..(GEN,SA,VN)200610-201401
main83800-26A80supersedes 83800-26B40iKDH200,22#..5F..ARL; KDH202..15S..GEN;KDH202,212..RHD..(HRF,SMRF);KDH202,222..LHD..(12S,16S)..5F..GEN;KDH200,LH20#,212,222..(03S,10S,12S,15S,16S)..5F..(GEN,MA)200501-200609
SOUTH AFRICA SPEC
ALGERIA SPEC
main83800-26A82iKDH201,221..5F..ARL;KDH200,202,212,220,222,223,LH20#,212,222..5F..STD..(ARL,GEN,MA,SA); KDH222..GL..GCC200802-201008
ALGERIA SPEC
main83800-26A83iKDH201..LHD;KDH222..STD..(GEN,SA);KDH201,221,223..5F..ARL;KDH200,202,203,212,220,LH20#,212,222..(03S,12S,15S,16S)..(GEN,MA,SA); KDH222..GL..GCC201008-201205
ALGERIA SPEC
main83800-26A84iKDH201,221,223..5F..(ARL,RUS);KDH200,202,212,220,222,LH20#,212,222..STD..(GEN,MA,SA)201205-201402
main83800-26A90iKDH202..RHD..15S;KDH200..RHD..5D..03S; KDH220..5F..GEN;KDH200,212..(06S,11S)..5F..GEN; KDH222..5F..ARL200501-200609
NEW ZEALAND SPEC; SINGAPORE SPEC
NEW ZEALAND SPEC; SINGAPORE SPEC
NEW ZEALAND SPEC
main83800-26C61iKDH201..RHD..03S..5F..(GEN,TH);KDH201,203,221,223..RHD..SG..5F..(GEN,TH)201008-201401
NEW ZEALAND SPEC
main83800-26C71iKDH201,221..SG..4FC;KDH201..03S..4FC..GEN; KDH221,223..4FC..ARL; KDH223..4FC201008-201312
NEW ZEALAND SPEC; SINGAPORE SPEC
main83800-26B80iTRH223..STD..GEN;TRH213..RHD..STD..GEN;TRH201,203..SRF..(03S,12S,15S)..GEN200501-201312
SPEEDOMETER-ANALOG(MILE/H , KM/H)
SPEEDOMETER-ANALOG(MILE/H , KM/H)
SPEEDOMETER-ANALOG(MILE/H , KM/H)
NIGERIA SPEC
NIGERIA SPEC
TUNISIA SPEC
83138GGLASS, COMBINATION METER
main83852-26A00iKDH212..5F;KDH20#,22#,LH20#,212,222,TRH201,203,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S200501-201402
83821ACOVER, COMBINATION METER, NO.1
9015950311
main90159-50311
4 parts on this diagram · 1 diagram in section
METER for Toyota HIACE
This section contains 4 genuine Toyota parts for the METER system of the Toyota HIACE. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, COVER, COMBINATION METER, NO.1.
