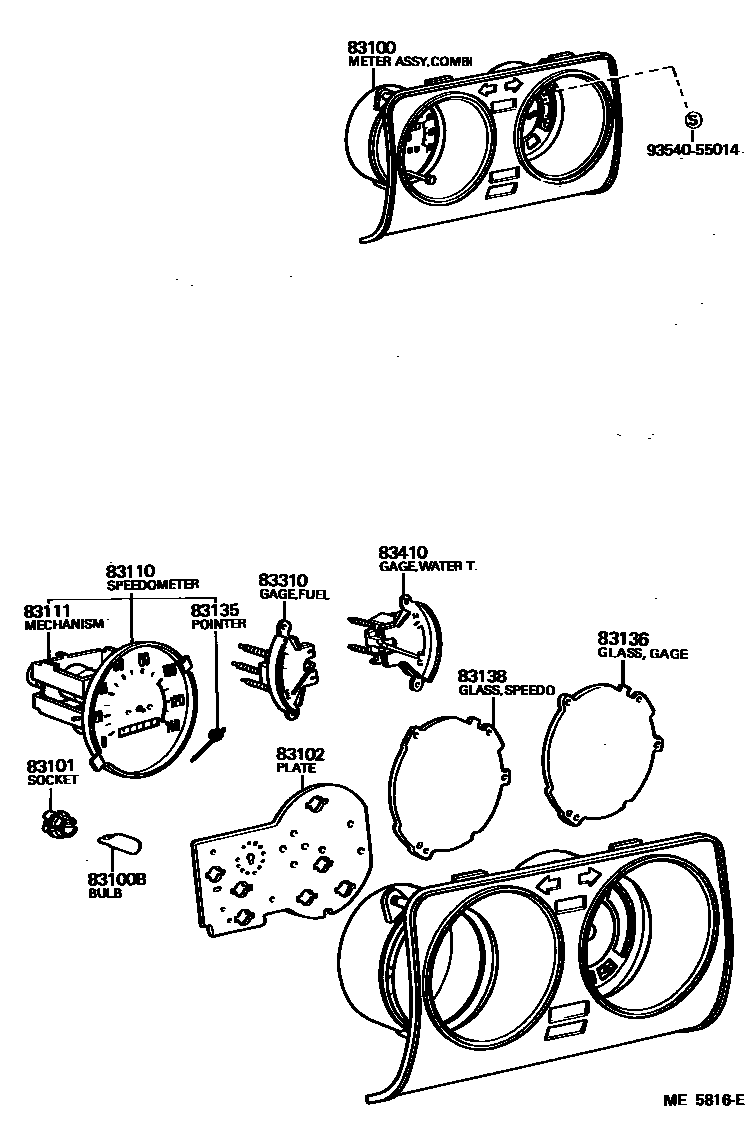

Toyota HIACE — METER

83100METER ASSY, COMBINATION

main83100-95A03i197805-197905

main83100-95A04i197702-197708

MILE

main83100-95A05i197805-197908

KM,W/SPEED SENSOR

main83100-95A09i197708-197908

MILE & KM

main83100-95A10i197803-197908

KM,WEST GERMANY SPEC

main83100-95A12i197901-197908

main83100-95A13i197901-197908

KM/MILE

main83100-95A17i197904-197906

main83100-95A50i197905-197912

main83100-95A51i197908-197912

KM,W/SPEED SENSOR

main83100-95A53i197908-197912

MILE & KM

main83100-95A55i197908-197912

KM,WEST GERMANY SPEC

main83100-95A56i197908-197912

main83100-95A57i197908-197912

KM/MILE

main83100-95A60i197906-197912

main83100-95A61i197905-197912

83100BBULB, COMBINATION METER, NO.1

main90981-11018i197901-198211

12V 1.2W W/O SOCKET,TIMING BELT

main99132-12034×11i197702-198211

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×11i197702-198211

main83101-22010i197901-198211

TIMING BELT

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-95A00i197912-198110

main83247-95A01i197702-197912

W/SPEED SENSOR

main83247-95A02i197901-197912

main83247-95A05i198012-198211

main83247-95A06i197912-198012

main83247-95A08i198012-198211

main83247-95A22i197912-198012

WEST GERMANY SPEC

main83247-95A23i197912-198012

83110SPEEDOMETER ASSY

main83110-95A03i198012-198110

main83110-95A04i198012-198110

MILE & KM

main83110-95A05i198004-198110

main83110-95A06i197912-198110

KM,W/PUSH SW

main83110-95A07i197912-198110

MILE/KM,W/PUSH SW

main83110-95A08i198110-198211

KM,W/TRIP METER; KM,W/TRIPMETER

main83110-95A09i198004-198110

MILE & KM

main83110-95A10i198110-198211

MILE & KM,W/TRIP METER; MILE & KM,W/TRIPMETER

main83110-95A11i198110-198211

*NSW,W/TRIP METER; KM,W/TRIP METER

main83110-95A12i198110-198211

KM,W/PUSH SW & TRIPMETER

main83110-95A13i198110-198211

MILE/KM,W/PUSH SW & TRIPMETER

main83110-95A14i198110-198211

MILE & KM,W/TRIP METER

main83241-95A02i197912-198110

main83241-95A03i197702-197708

MILE

main83241-95A04i197702-197912

*NSW

main83241-95A05i197708-197912

MILE & KM

main83241-95A07i197901-198108

KM,W/PUSH SW

main83241-95A08i197901-197912

KM/MILE,W/PUSH SW

main83241-95A10i198110-198110

KM,W/TPIPMETER

main83241-95A11i198202-198211

KM,W/PUSH SW & TRIPMETER

main83241-95A15i198108-198202

KM,W/PUSH SW & TRIPMETER

83111MECHANISM, SPEEDOMETER

main83112-95012i197912-198110

main83112-95013i197912-198110

main83112-95016i198004-198110

MILE & KM

main83112-95017i197912-198110

MILE & KM

main83112-95A02i197702-197912

main83112-95A03i197702-197708

MILE

main83112-95A04i197702-197912

main83112-95A08i197912-198110

main83112-95A09i198004-198110

MILE & KM

main83112-95A11i197912-198110

83135POINTER, SPEEDOMETER

main83135-95A03i197702-198211

83136GLASS, GAGE METER

main83138-95A00i197901-197912

83138GLASS, SPEEDOMETER

main83138-95A00i197912-198110

main83138-95A01i198110-198110

main83138-95A02i197901-197912

main83138-95A03i198110-198211

83310GAGE ASSY, FUEL RECEIVER

main83243-95A00i197702-197912

main83243-95A01i197912-198211

main83243-95A02i197912-198211

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-95A00i197702-197908

main83244-95A01i197912-198012

main83244-95A02i197912-198012

main83244-95A03i197908-197912

main83244-95A04i197912-198211

MIDDLE EAST COUNTRY SPEC

main83244-95A05i197912-198211

main83244-95A06i198012-198211

main83244-95A07i198012-198211

9354055014

main93540-55014

12 parts on this diagram · 4 diagrams in section

METER for Toyota HIACE

This section contains 45 genuine Toyota parts for the METER system of the Toyota HIACE. Key components include: SPEEDOMETER DRIVEN GEAR (MTM), METER ASSY, COMBINATION, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB.
