Toyota HIACE — FRONT VENTILATOR

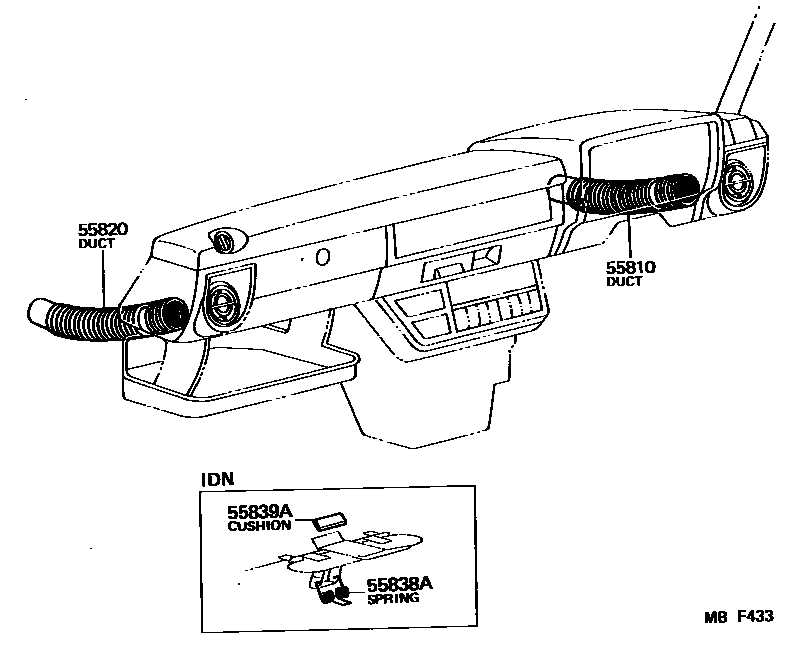

Parts diagram

55810DUCT ASSY, SIDE VENTILATOR, RH

main55863-95A00i198211-198507

55820DUCT ASSY, SIDE VENTILATOR, LH

main55863-95A00i198211-198507

55838ASPRING, FRONT VENTILATOR, SUPPORT

main55838-95A00i198307-198507

55839ACUSHION, FRONT VENTILATOR

main55839-95A00i198307-198507

4 parts on this diagram · 1 diagram in section
