Toyota HIACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

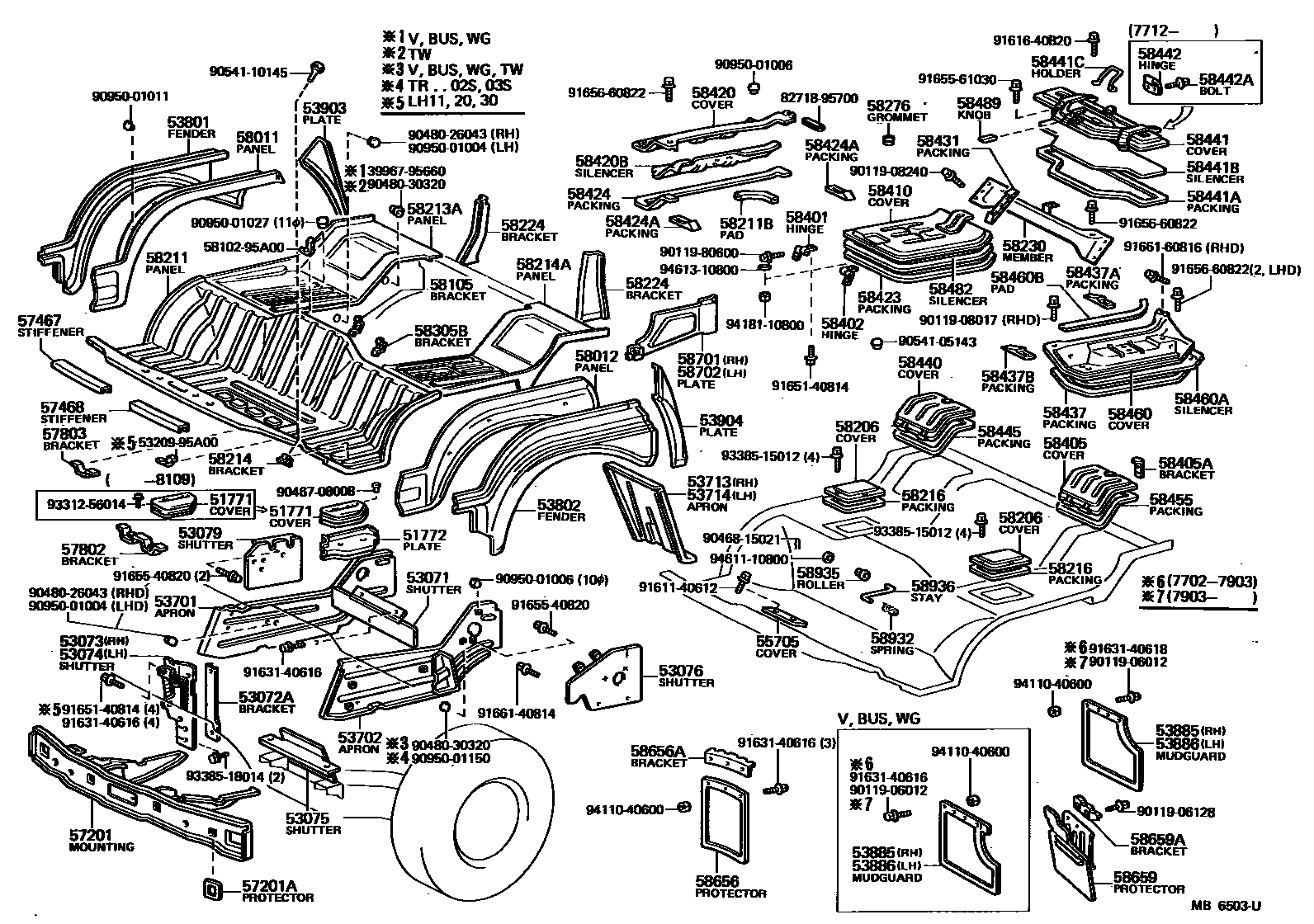

Parts diagram
51771COVER, STEP PLATE, INNER
main51701-95A00i197702-197710
RH
main51701-95A01i197710-198109
RH
main51702-95A00i197702-197710
LH
main51702-95A01i197710-198109
LH
main51771-95A01i198109-198211
RH
main51772-95A01i198109-198211
LH
51772PLATE, STEP
main61403-95A00i197702-197710
RH
main61403-95A01i197710-198105
RH
main61403-95A02i198105-198211
RH
main61404-95A00i197702-197710
LH
main61404-95A01i197710-198105
LH
main61404-95A02i198105-198211
LH
53071SHUTTER SUB-ASSY, HOT AIR, UPPER
main53071-95A00i197702-198211
53072ABRACKET, HOT AIR SHUTTER, SIDE
main88688-95A12i198105-198211
W/TWIN COOLER
53073SHUTTER SUB-ASSY, HOT AIR SIDE, RH
main53073-95A00i197702-198211
main88578-95A01i198105-198211
W/TWIN COOLER
53074SHUTTER SUB-ASSY, HOT AIR SIDE, LH
main53074-95A00i197702-198211
main53074-95A03i197901-198211
53075SHUTTER SUB-ASSY, HOT AIR, LOWER
main53075-95600i197702-198211
main53075-95A00i197901-198211
53076SHUTTER SUB-ASSY, HOT AIR, REAR
main53076-95A00i197804-197808
HONG KONG SPEC
main53076-95A01i197702-198211
HOT AIR INTAKE; NEW SOUTH WALES SPEC
main53076-95A02i197702-198211
main53076-95A03i197804-197808
HONG KONG SPEC
main53076-95A04i197707-198211
CYCLONE TYPE AIR CLEANER
main53076-95A05i197808-198211
HONG KONG SPEC; NEW SOUTH WALES SPEC
main53076-95A06i197808-197912
HONG KONG SPEC
main53076-95A11i197912-198211
HONG KONG SPEC
main53076-95A17i198204-198211
53079SHUTTER SUB-ASSY, HOT AIR, REAR RH
main53079-95A00i197901-198211
main53079-95A01i197912-198211
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-95A00i197702-197905
main53701-95A01i197702-197808
main53701-95A04i197808-197905
main53701-95A06i197901-197905
main53701-95A09i197905-198211
main53701-95A11i197905-198211
main53701-95A14i197905-198211
main53701-95A16i197905-198211
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-95A02i197702-197905
main53702-95A09i197707-197905
CYCLONE TYPE AIR CLEANER
main53702-95A11i197707-197905
CYCLONE TYPE AIR CLEANER
main53702-95A13i197901-197905
main53702-95A14i197901-197905
main53702-95A16i197905-198211
main53702-95A17i197905-198211
main53702-95A22i197905-198211
CYCLONE TYPE AIR CLEANER
main53702-95A23i197905-198211
CYCLONE TYPE AIR CLEANER
main53702-95A26i197905-198211
main53702-95A29i197905-198211
main53702-95A30i197912-198211
NEW SOUTH WALES SPEC
53713APRON, FENDER SIDE, RH
main53703-95A00i197702-197808
main53703-95A05i197912-198211
main53703-95A06i197808-197912
main53703-95A07i197912-198211
53714APRON, FENDER SIDE, LH
main53704-95A02i197702-197809
main53704-95A13i197809-198012
main53704-95A19i197901-198211
main53704-95A20i197912-198211
CYCLONE TYPE AIR CLEANER
main53704-95A21i197912-198012
main53704-95A23i198012-198211
main53704-95A24i198012-198211
CYCLONE TYPE AIR CLEANER
main53704-95A26i198012-198211
53801FENDER SUB-ASSY, FRONT RH
main61411-95A00i197702-198012
main61411-95A01i198105-198211
53802FENDER SUB-ASSY, FRONT LH
main61412-95A00i197702-198012
main61412-95A01i198012-198211
53885MUDGUARD, FRONT RH
main53881-95A00i197702-197704
main53881-95A01i197702-198211
main53881-95A02i197704-198211
53886MUDGUARD, FRONT LH
main53881-95A00i197702-197704
main53881-95A01i197702-198211
main53881-95A02i197704-198211
53903PLATE SUB-ASSY, FENDER, REAR RH
main61423-95A00i197702-198105
main61423-95A01i197702-198105
main61423-95A02i198105-198211
main61423-95A03i198105-198211
53904PLATE SUB-ASSY, FENDER, REAR LH
main61424-95A00i197702-198105
main61424-95A01i197702-198105
main61424-95A02i198105-198211
main61424-95A03i198105-198211
55705COVER SUB-ASSY, CAR HEATER AIR INLET HOLE
main58703-95A00i197702-198211
W/O HEATER
57201MOUNTING SUB-ASSY, FRONT FLOOR
main57310-95A00i197702-198211
main57310-95A01i197702-198211
57201APROTECTOR, FRONT FLOOR MOUNTING & FRONT CROSSMEMBER
main17813-95A00i197901-198211
57467STIFFENER, FRONT FLOOR SIDE, RH
main57467-95A00i197702-198211
57468STIFFENER, FRONT FLOOR SIDE, LH
main57468-95A00i197702-198211
57802BRACKET SUB-ASSY, BRAKE TUBE, NO.1
main58105-95A00i197702-198211
57803BRACKET SUB-ASSY, BRAKE TUBE, NO.2
main58106-95A00×5i197702-198211
58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
main61421-95A00i198012-198105
main61421-95A01i198105-198211
58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
main61024-95A00i197907-198012
main61422-95A00i198105-198211
main61422-95A02i198105-198211
58105BRACKET SUB-ASSY, CLAMP SET
main58107-95A00i197702-198211
58206COVER SUB-ASSY, CAMBER SERVICE HOLE
main58215-95700×2i197702-198211
58211PANEL, FRONT FLOOR
main58211-95A00i198012-198211
W/HEATER
main58211-95A01i197702-198012
W/HEATER
main58211-95A02i197702-198012
W/O HEATER
main58211-95A03i198012-198211
W/O HEATER
main58211-95A07i198012-198211
main58211-95A08i198012-198211
58211BPAD, FRONT FLOOR PANEL
main58291-95703i197702-198211
58213APANEL, SEAT FLOOR, RH
main58204-95A00i197702-198012
main58204-95A01i197702-198211
main58204-95A02i197702-198211
main58204-95A03i197702-198211
main58204-95A04i197702-198211
main58204-95A05i197702-198211
58214BRACKET, CLUTCH PEDAL STOPPER
main58316-95A00i197702-198211
58214APANEL, SEAT FLOOR, LH
main58205-95A00i197702-198211
main58205-95A01i197702-198211
main58205-95A02i197702-198211
main58205-95A03i197702-198211
58216PACKING, CAMBER SERVICE HOLE COVER
main58216-95700×2i197702-198211
58224BRACKET, HEADER PANEL
main58223-95A00i197702-198211
RH
main58224-95A00i197702-198211
LH
58230MEMBER ASSY, CENTER FLOOR CROSS
main58203-95A02i198012-198211
main58203-95A03i198012-198211
main58203-95A05i198012-198211
main58203-95A07i198012-198211
NEW ZEALAND SPEC
main58203-95A09i198102-198211
main58203-95A10i198102-198211
main58203-95A11i198012-198211
NEW ZEALAND SPEC
58276GROMMET, SAFETY BAND ANCHORAGE NUT
main90950-01059×2i197702-198211
OD=13,L=15.5
main90950-01126×8i197702-198211
OD=12,L=25
58305BBRACKET ASSY, HEATER HOSE
main58305-95600i197702-198211
58401HINGE SUB-ASSY, ENGINE SERVICE HOLE COVER, RH
main58043-95A00i197702-197912
main58043-95A02i197912-198211
58402HINGE SUB-ASSY, ENGINE SERVICE HOLE COVER, LH
main58044-95A00i197702-197912
main58044-95A02i197912-198211
58405COVER SUB-ASSY, AIR CLEANER SERVICE HOLE
main58202-95A00i197702-198211
main58202-95A01i197901-198211
58405ABRACKET, AIR CLEANER SERVICE HOLE COVER
main58208-95A00i197702-198211
58410COVER, ENGINE SERVICE HOLE
main58401-95A00i197702-197712
main58401-95A01i197702-197712
main58401-95A02i197712-198211
main58401-95A03i197712-198211
58420COVER ASSY, ENGINE SERVICE HOLE, NO.2
main58402-95A00i198102-198211
main58402-95A01i197702-197808
W/O VSV HOLE
main58402-95A02i198102-198211
W/O VSV HOLE
main58402-95A03i197808-198102
W/VSV HOLE OR RESERVER TANK
main58402-95A04i197901-198102
main58402-95A06i197901-198012
main58402-95A08i198102-198211
main58402-95A09i198102-198211
main58402-95A10i198102-198211
main58402-95A11i198102-198211
main58402-95A14i198102-198211
main58402-95A15i198107-198211
main58402-95A16i198102-198211
main58402-95A19i198102-198211
main58402-95A21i198102-198211
main58402-95A22i198102-198211
main58402-95A23i198102-198107
main58402-95A24i198102-198107
58420BSILENCER, ENGINE SERVICE HOLE COVER, NO.2
main58471-95A01i197702-198102
main58471-95A04i198102-198211
58423PACKING, ENGINE SERVICE HOLE COVER, NO.2
main58435-95A00i197702-198211
main58435-95A01i197702-198211
58424PACKING, ENGINE SERVICE HOLE COVER, NO.1
main58436-95A00i197702-198104
L=955
main58436-95A02i198104-198211
L=920
58424APACKING, ENGINE SERVICE HOLE COVER SUB, NO.1
main58423-95A00×2i197702-198211
L=78
58431PACKING, CENTER FLOOR CROSSMEMBER
main58421-95A00×2i197702-198211
L=229
58437PACKING, ENGINE SERVICE HOLE COVER, NO.3
main58436-95A00i197903-198211
main58436-95A02i197903-198211
main58437-95A00i197702-197903
main58437-95A01i197702-197903
58437APACKING, ENGINE SERVICE HOLE COVER SUB, NO.1
main58423-95A00i197702-198211
main58424-95A00i197702-198211
58437BPACKING, ENGINE SERVICE HOLE COVER SUB, NO.2
main58424-95A00i197702-198211
58440COVER ASSY, BATTERY SERVICE HOLE
main58201-95A00i197702-197712
main58201-95A03i197712-197912
58441COVER ASSY, ENGINE, REAR
main58404-95A00i197702-197712
main58404-95A01i197702-197712
main58404-95A02i197702-197712
main58404-95A04i197712-198211
main58404-95A05i197712-198211
main58404-95A07i197901-198211
58441APACKING, ENGINE REAR COVER
main58438-95A00i197702-197712
main58438-95A01i197702-198211
58441BSILENCER, ENGINE REAR COVER
main58464-95A01i197702-197712
main58464-95A02i197712-198211
58441CHOLDER, ENGINE REAR COVER
main58475-95A00i197702-198211
58442HINGE, ENGINE COVER REAR FEMALE
main58419-95A02×2i197712-198211
58442ABOLT, ENGINE REAR COVER HINGE SET
main91616-40820×4i197712-198211
58445PACKING, BATTERY SERVICE HOLE COVER
main58049-95A00i198005-198211
main58445-95A00i197702-198005
58455PACKING, AIR CLEANER SERVICE HOLE
main58049-95A01i198005-198211
main58445-95704i198004-198005
main58446-95A00i197702-198004
58460COVER ASSY, ENGINE SERVICE HOLE, NO.3
main58403-95A05i198102-198211
main58403-95A06i198102-198211
main58433-95A00i197702-198102
main58433-95A01i197702-198102
58460ASILENCER, ENGINE SERVICE HOLE COVER, NO.3
main58472-95A02i197702-198211
main58472-95A03i197702-198211
58460BPAD, ENGINE COVER
main58411-95A00i197706-198211
58482SILENCER, ENGINE COVER
main58463-95A00i197702-197710
main58463-95A01i197702-198211
58489KNOB, ENGINE COVER REAR LEVER
main58489-95A00i197702-197708
main58489-95A01i197708-198211
58656PROTECTOR, CONTROL LINK
main58656-95A00i197702-198211
58656ABRACKET, CONTROL LINK PROTECTOR
main58651-95A00i197702-198211
58659PROTECTOR, COOL AIR INTAKE
main53880-95A00i197901-198211
58659ABRACKET, CONTROL LINK PROTECTOR
main58069-95A00i197901-198211
58701PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, RH
main57501-95A00i197702-198211
58702PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, LH
main57502-95A00i197702-198012
main57502-95A02i198012-198211
58932SPRING, ENGINE COVER STAY
main90508-20005i197702-198211
58935ROLLER, ENGINE COVER STAY
main58935-95600i197702-198211
58936STAY, ENGINE COVER
main58936-95A00i197702-198211
3996795660
main39967-95660
5320995A00BRACE SUB-ASSY, HOOD LOCK
main53209-95A00
5810295A00BAFFLE SUB-ASSY, RADIATOR SIDE, RH
main58102-95A00
8271895700
main82718-95700
9011906012
main90119-06012
9011906128
main90119-06128
9011908017
main90119-08017
9011908240
main90119-08240
9011980600
main90119-80600
9046708008
main90467-08008
9046815021
main90468-15021
9048026043
main90480-26043
9048030320
main90480-30320
9054105143
main90541-05143
9054110145
main90541-10145
9095001004
main90950-01004
9095001006
main90950-01006
9095001011
main90950-01011
9095001027
main90950-01027
9095001150
main90950-01150
9161140612
main91611-40612
9161640820
main91616-40820
9163140616
main91631-40616
9163140618
main91631-40618
9165140814
main91651-40814
9165540820
main91655-40820
9165561030
main91655-61030
9165660822
main91656-60822
9166140814
main91661-40814
9166160816
main91661-60816
9331256014
main93312-56014
9338515012
main93385-15012
9338518014
main93385-18014
9411040600
main94110-40600
9418110800
main94181-10800
9461110800
main94611-10800
9461310800
main94613-10800

114 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HIACE

This section contains 126 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HIACE. Key components include: FRONT SPRING & SHOCK ABSORBER, COVER, STEP PLATE, INNER, PLATE, STEP, SHUTTER SUB-ASSY, HOT AIR, UPPER, BRACKET, HOT AIR SHUTTER, SIDE.
