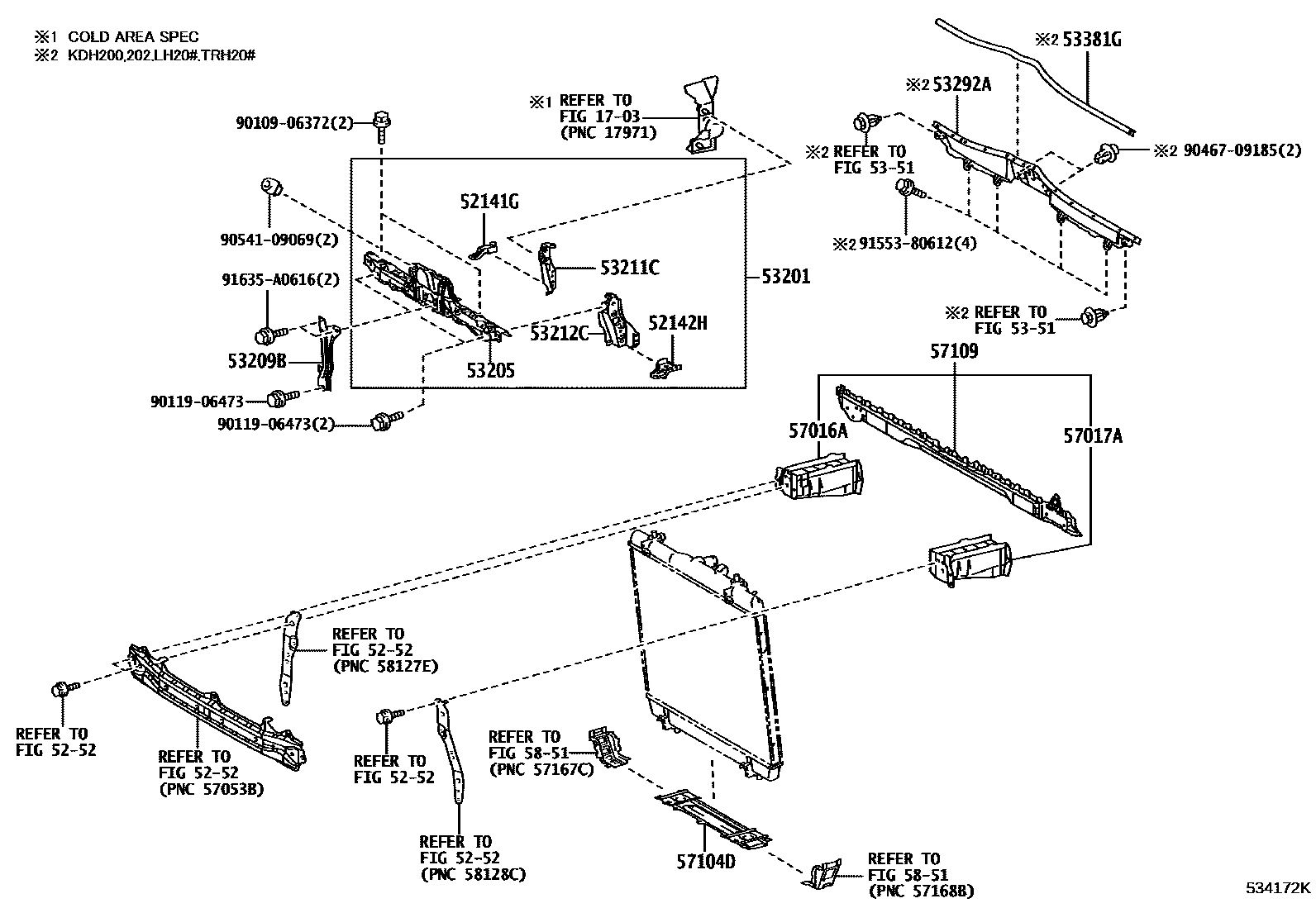

Toyota HIACE — FRONT FENDER APRON & DASH PANEL
1703AIR CLEANER
52141GSTAY, FRONT BUMPER, RH
52142HSTAY, FRONT BUMPER, LH
5252FRONT BUMPER & BUMPER STAY
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
main53209-26100iKDH200..GCC,MA;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203,LH202,TRH200,201201312-202005
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
53292ASEAL, RADIATOR SUPPORT, UPPER
53381GSEAL, HOOD TO RADIATOR SUPPORT, NO.1
5351RADIATOR GRILLE
57016AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
main57017-26010iTRH201;KDH200,201..LHD..5D;KDH201..4D..03S..5F;GDH201,KDH202,203..03S,06S,10S,12S,15S;KDH201,TRH200,203..(02S,05S,06S,10S,15S)..(4FC,5F)..(ARL,GEN,MA)201312
57104DMEMBER SUB-ASSY, FRONT CROSS
57109REINFORCEMENT SUB-ASSY, DASH PANEL CROSSMEMBER
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
9010906372
main90109-06372
9011906473
main90119-06473
9046709185
main90467-09185
9054109069
main90541-09069
9155380612
main91553-80612
91635A0616
main91635-A0616
23 parts on this diagram · 6 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota HIACE
This section contains 39 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota HIACE. Key components include: AIR CLEANER, STAY, FRONT BUMPER, RH, STAY, FRONT BUMPER, LH, FRONT BUMPER & BUMPER STAY, SUPPORT SUB-ASSY, RADIATOR.
