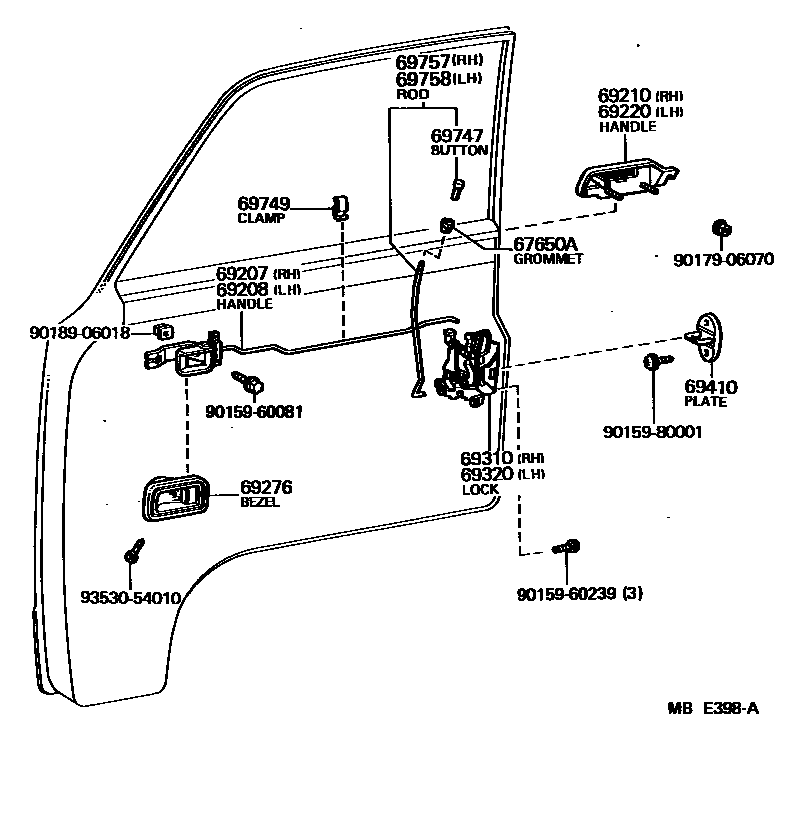

Toyota HIACE — FRONT DOOR LOCK & HANDLE
67650AGROMMET(FOR DOOR PANEL LOCK BUTTON)
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69747BUTTON, DOOR LOCKING
BLACK
69749CLAMP, FRONT DOOR LOCK LINK
69757ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH
69758ROD, FRONT DOOR LOCKING CONTROL, NO.2 LH
9015960081
main90159-60081
9015960239
main90159-60239
9015980001
main90159-80001
9017906070
main90179-06070
9018906018
main90189-06018
9353054010
main93530-54010
19 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota HIACE
This section contains 19 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota HIACE. Key components include: GROMMET(FOR DOOR PANEL LOCK BUTTON), HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
