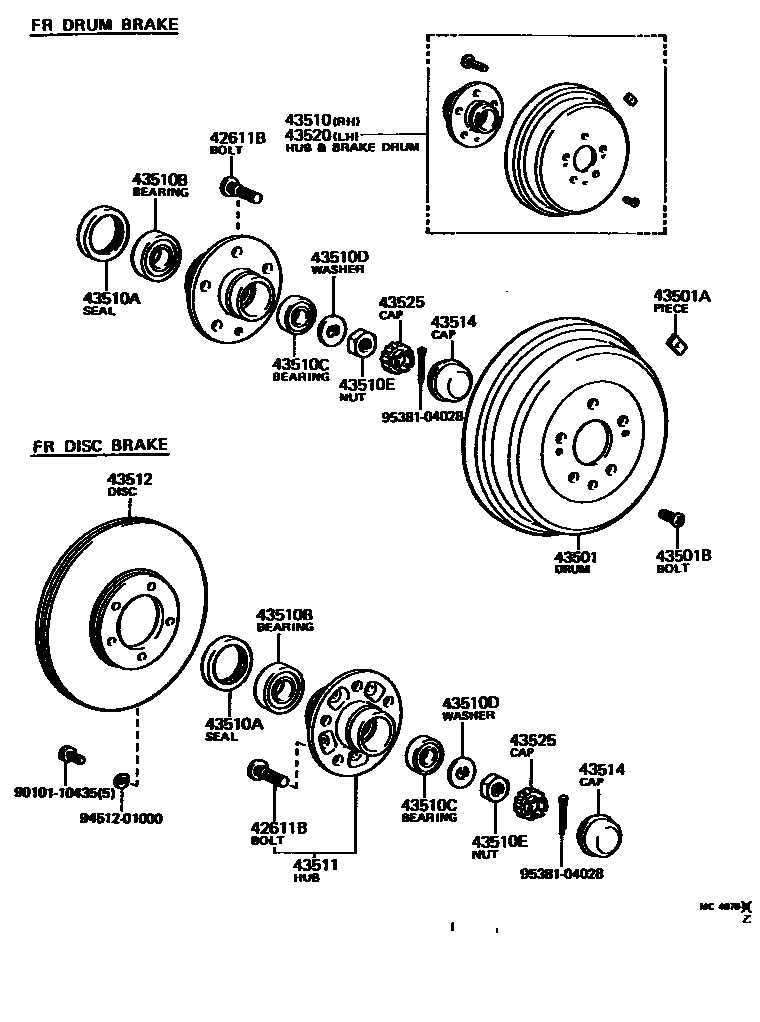

Toyota HIACE — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035×10i197702-198112

FR DISC BRAKE

main90942-02037×10i197702-198211

FR DRUM BRAKE

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-26020×2i197702-198211

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100i197702-198211

40.5G,40G

main90937-01117i197702-198211

10G,10G

main90937-01118i197702-198211

20G,20G

main90937-01119i197702-198211

30G,30G

main90937-01146i197702-198211

25G,50G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035i197702-198211

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-26020i197702-198210

main43510-26040i198210-198211

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005×2i198210-198211

main90311-50136×2i197702-198210

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001×2i198210-198211

main90368-34039×2i197702-198210

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001×2i198210-198211

main90368-21065×2i197702-198210

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007×2i197702-198211

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2i197702-198211

43511HUB, FRONT AXLE

main43502-26010×2i197702-198112

DISC BRAKE

43512DISC, FRONT

main43512-26030×2i197702-197909

main43512-26031×2i197909-198112

43514CAP, FRONT HUB GREASE

main43514-35010×2i197702-198211

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-26020i197702-198211

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2i197702-198211

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

18 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota HIACE

This section contains 18 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota HIACE. Key components include: BOLT, HUB (FOR FRONT AXLE), DRUM SUB-ASSY, FRONT BRAKE, PIECE, BALANCE (FOR FRONT BRAKE DRUM), BOLT, SET (FOR FRONT BRAKE DRUM SETTING), HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH.
