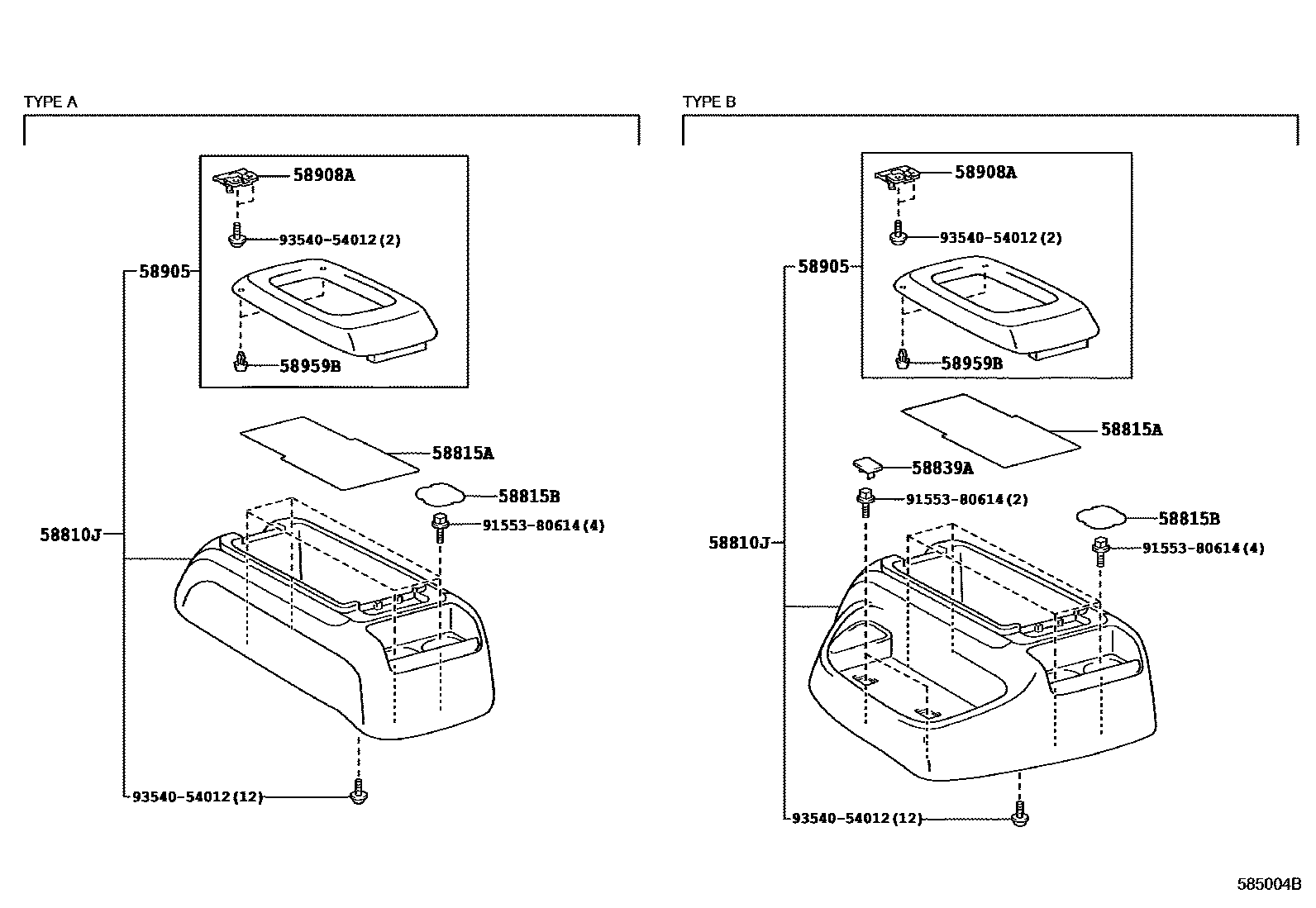

Toyota HIACE — CONSOLE BOX & BRACKET

58810JBOX ASSY, CONSOLE

main58810-26210-B1iKDH201,TRH201..SG..06S..GEN201501-202301

DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.

main58810-26220-B1iKDH212,TRH213..SA201312-201901

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

58815ACARPET, CONSOLE BOX

main58815-26070iKDH223,TRH223..(4FC,5F)..ARL201312-202301

NEW ZEALAND SPEC

58815BCARPET, CONSOLE BOX

main58815-26080×2iKDH212,TRH213..SA201312-201901

58839ACOVER, CONSOLE BOX HOLE

main58839-26030-B1×2iKDH221..ARL201312-201902

DK.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-26200-B1iKDH212,TRH213..SA201312-201901

DK.GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080iKDH212,TRH213..SA201504-201901

main58908-58010iKDH201,221,TRH201..SG..(4FC,5F)..GEN201501-201504

LUXURIOUS WGN BASE PACKAGE

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iKDH221..ARL201312-201902

SINGAPORE SPEC

9155380614

main91553-80614

9354054012

main93540-54012

9 parts on this diagram · 1 diagram in section
