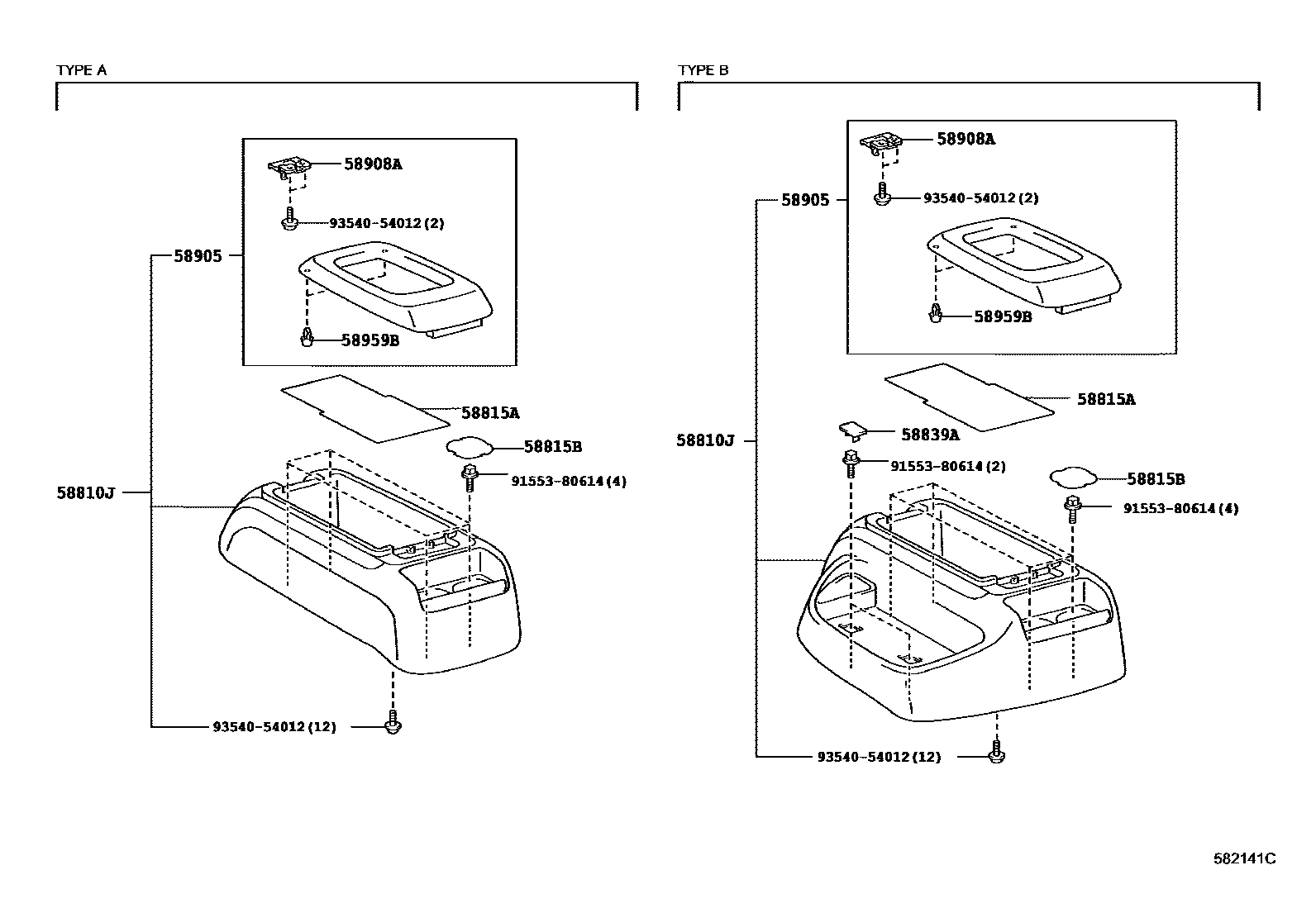

Toyota HIACE — CONSOLE BOX & BRACKET
58810JBOX ASSY, CONSOLE
GRAY,TRIM1#,TYPE A:REFER ILLUST.
DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.
main58810-26220-B0iTRH213..GL..VN;KDH223,TRH213..RHD..(10S,11S,14S);KDH212,222,TRH223..(10S,11S,14S)..GL200501-201008
GRAY,TRIM1#,TYPE B:REFER ILLUST.
main58810-26220-B1iTRH223..ARL;KDH212,223..10S,11S,14S;KDH222,TRH213,223..GL..(SA,TH,VN)201008-201312
DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.
58815ACARPET, CONSOLE BOX
3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)
58815BCARPET, CONSOLE BOX
main58815-26080×2iTRH213..GL..VN;KDH222,TRH213,223..RHD..GL;KDH203,212,223..10S,11S,14S200501-201312
3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)
58839ACOVER, CONSOLE BOX HOLE
main58839-26030-B0×2iTRH213..GL..VN;KDH223,TRH213..RHD..(10S,11S,14S);KDH212,222,TRH223..(10S,11S,14S)..GL200501-201008
3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GRAY,TRIM1#
main58839-26030-B1×2iTRH223..ARL;KDH212,223..10S,11S,14S;KDH222,TRH213,223..GL..(SA,TH,VN)201008-201312
3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),DK.GRAY,TRIM1#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-26200-B0iTRH213..GL..VN;TRH223..GL..SA;KDH223,TRH213..RHD..(10S,11S,14S);KDH203,212,222..(10S,11S,14S)..(GEN,SA)200501-201008
3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GRAY,TRIM1#
main58905-26200-B1iTRH223..ARL;KDH203,212,223..10S,11S,14S;KDH222,TRH213,223..GL..(SA,TH,VN)201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM,DK.GRAY,TRIM1#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)
sub58908-12080
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×2iTRH213..GL..VN;KDH222,TRH213,223..RHD..GL;KDH203,212,223..10S,11S,14S200501-201312
3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)
9155380614
main91553-80614
9354054012
main93540-54012
9 parts on this diagram · 1 diagram in section
