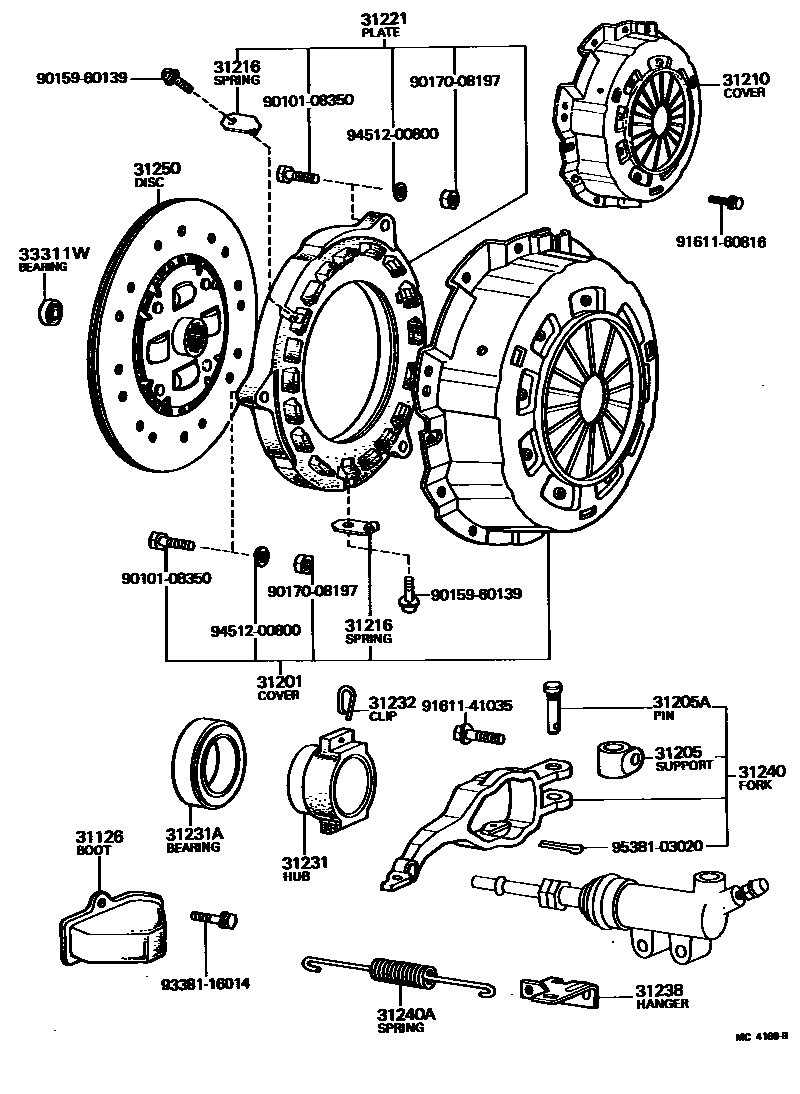

Toyota HIACE — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31201COVER SUB-ASSY, CLUTCH
31205SUPPORT SUB-ASSY, RELEASE FORK
31205APIN, W/SERRATION(FOR RELEASE FORK SUPPORT)
31210COVER ASSY, CLUTCH
31216SPRING, CLUTCH RETRACTING
31221PLATE, CLUTCH PRESSURE
31231HUB, CLUTCH RELEASE BEARING
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
31232CLIP OR SPRING, RELEASE BEARING HUB
31238HANGER, RELEASE FORK RETRACTING SPRING
31240FORK ASSY, CLUTCH RELEASE
31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
31250DISC ASSY, CLUTCH
33311WBEARING (FOR INPUT SHAFT)
6201 VV C3
9010108350
main90101-08350
9015960139
main90159-60139
9017008197
main90170-08197
9161141035
main91611-41035
9161160816
main91611-60816
9338116014
main93381-16014
9451200800
main94512-00800
9538103020
main95381-03020
23 parts on this diagram · 2 diagrams in section
CLUTCH & RELEASE FORK for Toyota HIACE
This section contains 24 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota HIACE. Key components include: BOOT, CLUTCH RELEASE FORK, COVER SUB-ASSY, CLUTCH, SUPPORT SUB-ASSY, RELEASE FORK, PIN, W/SERRATION(FOR RELEASE FORK SUPPORT), COVER ASSY, CLUTCH.
