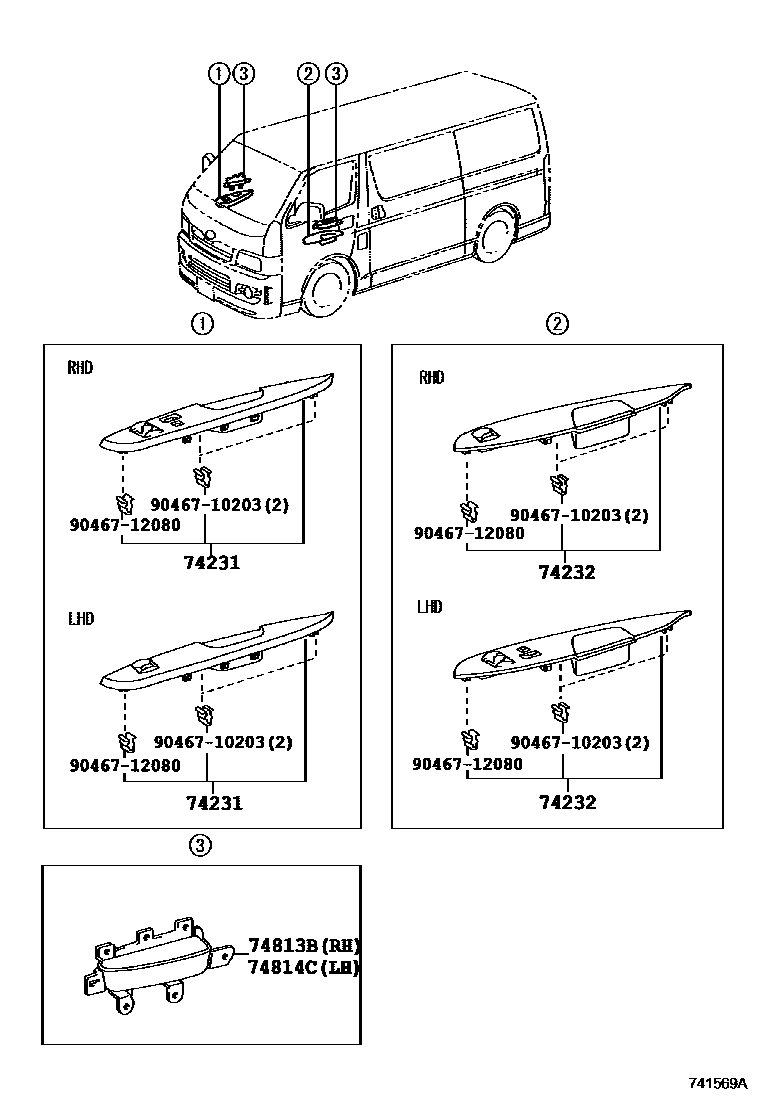

Toyota HIACE — ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-26270-B0iKDH201..ARL,MA,TH;KDH223..RHD..5F..(ARL,GEN);KDH201,222..RHD..SG..STD..GEN;KDH221,TRH201,223..RHD..(02S,03S,05S,06S,14S)..STD;KDH202,220,LH212,222,TRH203,221..RHD..(02S,06S,10S,15S,16S); TRH223..TH;KDH223..4FC..TH;KDH201..4D..03S..5F..GEN;KDH201,TRH200..SP..06S..(4FC,5F);GDH201,223,KDH203,223,TRH213..RHD..(03S,06S,11S,12S,14S)..(GEN,KEN,TH)201312
DK.GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
main74231-26280-B0iKDH223..RUS,VN;TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH21#,222,223,TRH213..LHD..GL..GEN; TRH221..GCC;KDH200..LHD..5D;KDH222,TRH203,223..LHD..STD..GEN;KDH201,202,203,212,220,223,LH212,TRH201,213..LHD..STD..(GCC,GEN)201312
DK.GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
DK.GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
main74232-26130-B0iKDH223..RUS,VN;TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH21#,222,223,TRH213..LHD..GL..GEN; TRH221..GCC;KDH200..LHD..5D;KDH222,TRH203,223..LHD..STD..GEN;KDH201,202,203,212,220,223,LH212,TRH201,213..LHD..STD..(GCC,GEN)201312
DK.GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
74813BHANDLE, FRONT DOOR PULL, RH
main74813-26050-B0iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH213..RHD..STD..(GEN,SA)201312-201901
DK.GRAY,TRIM1#
74814CHANDLE, FRONT DOOR PULL, LH
DK.GRAY,TRIM1#
9046710203
main90467-10203
9046712080
main90467-12080
6 parts on this diagram · 3 diagrams in section
ARMREST & VISOR for Toyota HIACE
This section contains 24 genuine Toyota parts for the ARMREST & VISOR system of the Toyota HIACE. Key components include: BAND ASSY, TOOL BOX, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH, VISOR ASSY, LH.
