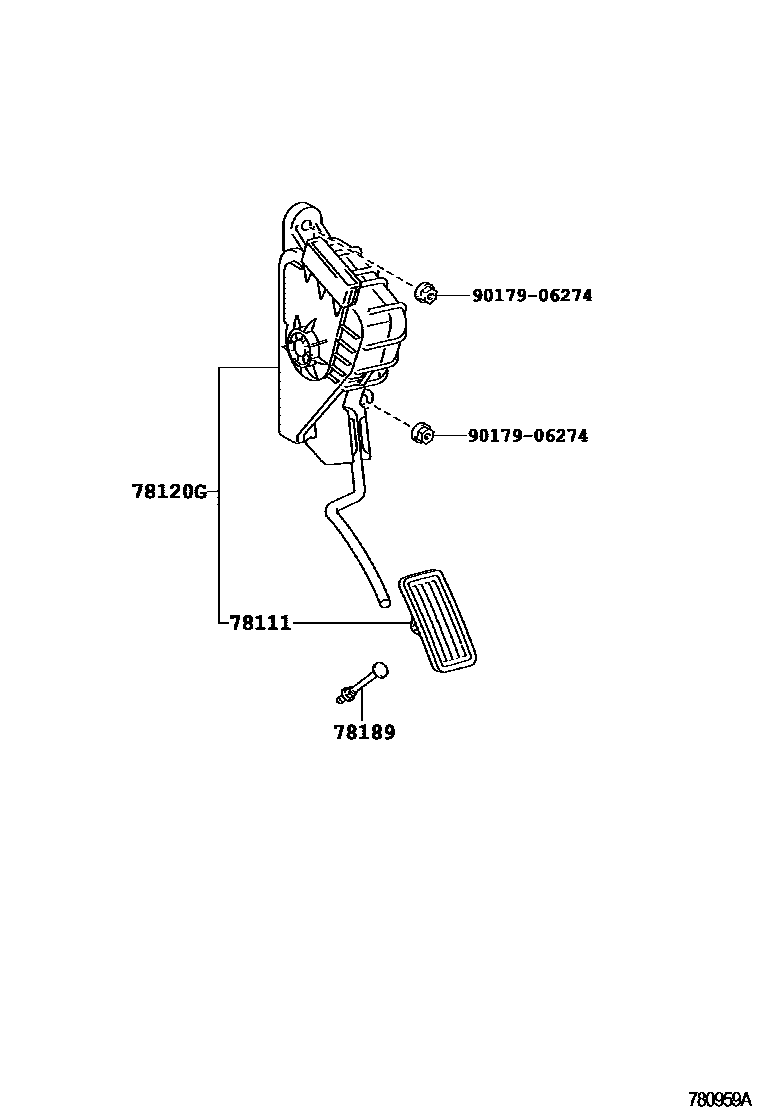

Toyota HIACE — ACCELERATOR LINK
78111PEDAL, ACCELERATOR
main78111-26020iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402
78120GROD ASSY, ACCELERATOR PEDAL
78189BOLT, ACCELERATOR PEDAL STOPPER
9017906274
main90179-06274
4 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota HIACE
This section contains 4 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HIACE. Key components include: PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, BOLT, ACCELERATOR PEDAL STOPPER.
