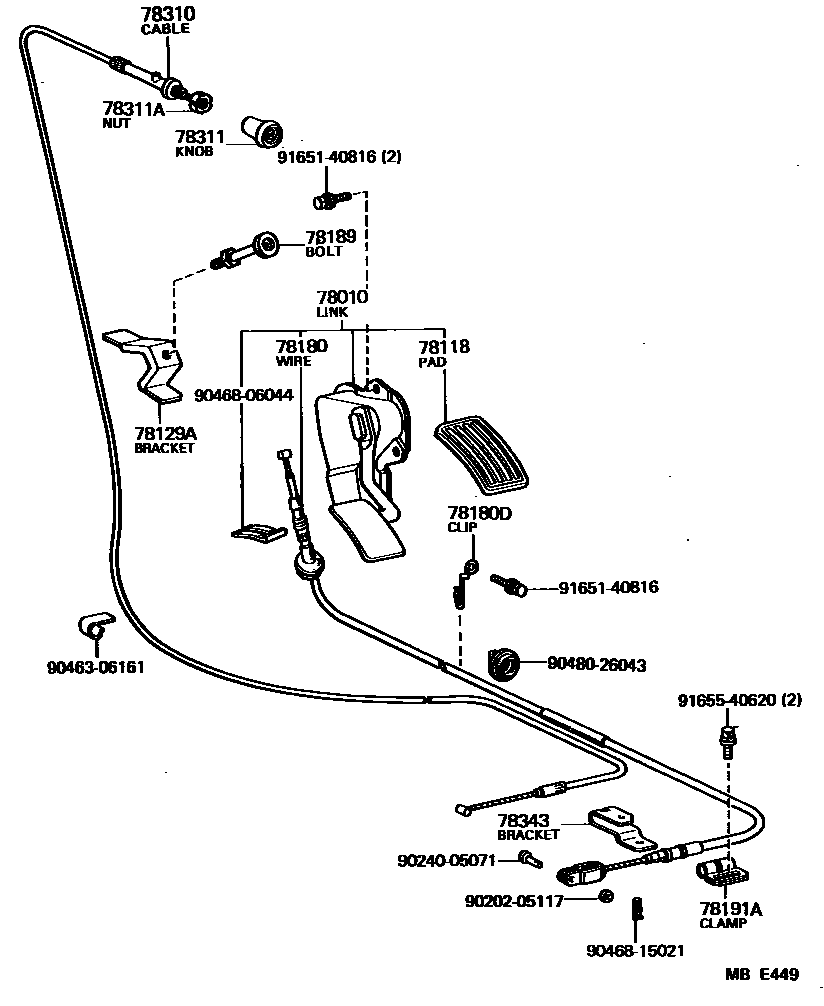

Toyota HIACE — ACCELERATOR LINK
78010LINK, ACCELERATOR
78118PAD, ACCELERATOR PEDAL
78129ABRACKET, ACCELERATOR PEDAL STOPPER
78180WIRE ASSY, ACCELERATOR
78180DCLIP (FOR ACCELERATOR WIRE)
78189BOLT, ACCELERATOR PEDAL STOPPER
78191BRACKET, ACCELERATOR WIRE SUPPORT
78191ACLAMP (FOR ACCELERATOR WIRE SET)
78311KNOB, CHOKE CONTROL CABLE
78311ANUT, CHOKE SHAFT SET
78343BRACKET, CHOKE ROD
9020205117
main90202-05117
9024005071
main90240-05071
9046306161
main90463-06161
9046806044
main90468-06044
9046815021
main90468-15021
9048026043
main90480-26043
9165140816
main91651-40816
9165540620
main91655-40620
20 parts on this diagram · 4 diagrams in section
ACCELERATOR LINK for Toyota HIACE
This section contains 42 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HIACE. Key components include: BRACKET, THROTTLE CABLE, LINK, ACCELERATOR, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, PAD, ACCELERATOR PEDAL.
