Toyota HIACE — ACCELERATOR LINK

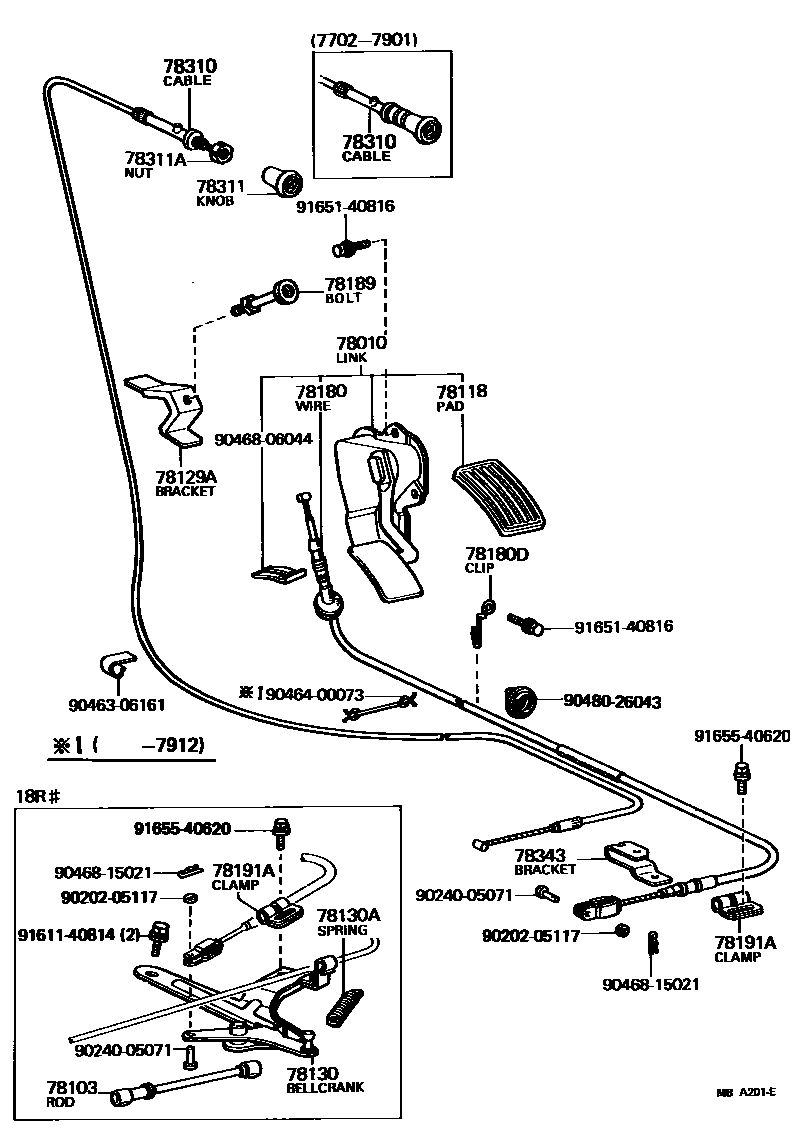

Parts diagram

78010LINK, ACCELERATOR

main78180-95A00i197702-198012

main78180-95A01i197702-198012

main78180-95A02i197702-198012

main78180-95A03i197702-198012

main78180-95A05i197901-198012

main78180-95A06i197901-198012

main78180-95A08i198012-198211

main78180-95A09i198012-198211

main78180-95A11i198012-198105

main78180-95A12i198012-198105

main78180-95A13i198012-198211

main78180-95A14i198012-198211

main78180-95A17i198105-198211

main78180-95A18i198105-198211

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78108-95600i197702-198211

78118PAD, ACCELERATOR PEDAL

main78119-95A00i197702-197801

main78119-95A01i197801-198012

main78119-95A02i198012-198211

78129ABRACKET, ACCELERATOR PEDAL STOPPER

main78109-95A00i197702-198211

78130BELLCRANK ASSY, ACCELERATOR

main78103-95A00i197702-197810

main78103-95A04i197810-197912

main78103-95A08i197912-198211

main78103-95A09i197912-198211

78130ASPRING (FOR ACCELERATOR ROD RETURN)

main78108-95A00i197702-198001

main90507-12008i198001-198008

main90507-12009i198008-198211

78180WIRE ASSY, ACCELERATOR

main78150-95A00i197702-198211

main78150-95A01i197702-198211

main78150-95A02i197702-198211

main78150-95A03i197702-198211

main78150-95A07i197901-198012

main78150-95A08i197901-198012

main78150-95A12i198012-198211

main78150-95A13i198012-198211

78180DCLIP (FOR ACCELERATOR WIRE)

main78169-95A01i197901-198211

main90463-16003×2i197702-198211

78189BOLT, ACCELERATOR PEDAL STOPPER

main78107-95A00i197901-198211

main78107-95A01i197901-198211

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78109-95A01i197901-198012

main78109-95A02i198012-198211

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main90461-10025i197912-198211

main90461-10434i197901-198211

main90461-10438i197912-198211

78310CABLE ASSY, CHOKE

main78301-95A00i197901-198211

main78301-95A01i197901-198211

main78301-95A02i197901-198211

main78301-95A03i197901-198211

main78310-95A01i197702-197901

main78310-95A02i197702-197802

main78310-95A03i197702-197901

main78310-95A04i197702-197802

main78310-95A06i197802-197901

main78310-95A07i197802-197901

78311KNOB, CHOKE CONTROL CABLE

main78302-95A00i197901-198211

78311ANUT, CHOKE SHAFT SET

main78314-95A00i197901-198211

78343BRACKET, CHOKE ROD

main78302-95602i197702-198211

9020205117

main90202-05117

9024005071

main90240-05071

9046306161

main90463-06161

9046400073

main90464-00073

9046806044

main90468-06044

9046815021

main90468-15021

9048026043

main90480-26043

9161140814

main91611-40814

9165140816

main91651-40816

9165540620

main91655-40620

25 parts on this diagram · 4 diagrams in section

ACCELERATOR LINK for Toyota HIACE

This section contains 52 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HIACE. Key components include: BRACKET, THROTTLE CABLE, LINK, ACCELERATOR, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2.
