Toyota HIACE — PARTIAL ENGINE ASSEMBLY

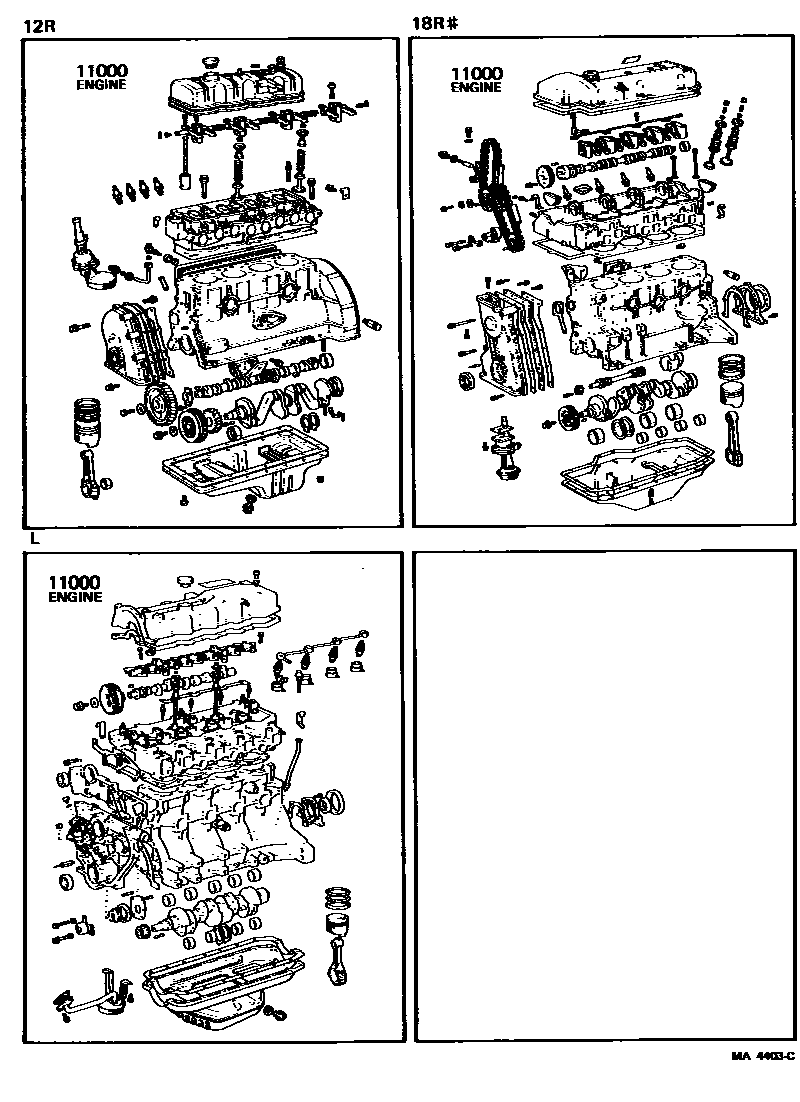

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-31221i197702-197808

main19000-31250i197702-197808

NEW SOUTH WALES & VICTORIA

main19000-31251i197808-198001

NEW SOUTH WALES & VICTORIA

main19000-31252i198001-198211

NEW SOUTH WALES & VICTORIA

main19000-31270i197808-198001

main19000-31271i198001-198211

main19000-34380i197702-197807

main19000-34390i197706-198104

18RC

main19000-34391i198104-198211

18RC

main19000-34450i197708-198211

main19000-54030i197901-197909

main19000-54040i197909-198105

main19000-54041i198105-198107

main19000-54042i198107-198108

main19000-54093i198108-198202

main19000-54094i198202-198204

main19000-54095i198204-198205

main19000-54096i198205-198211

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota HIACE

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota HIACE. Key components include: ENGINE ASSY, PARTIAL.
