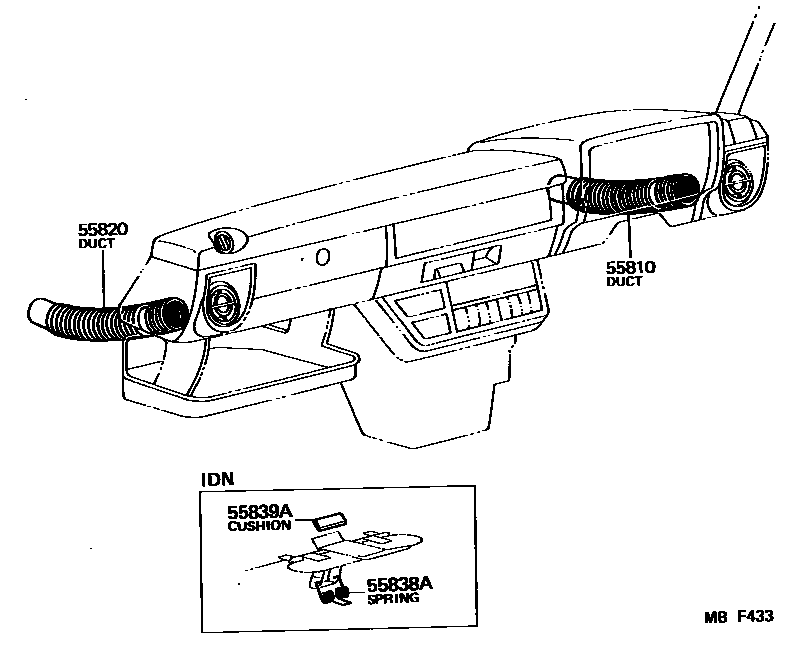

Toyota HIACE — FRONT VENTILATOR

55810DUCT ASSY, SIDE VENTILATOR, RH

main55863-95A00i198211-198507

55820DUCT ASSY, SIDE VENTILATOR, LH

main55863-95A00i198211-198507

55838ASPRING, FRONT VENTILATOR, SUPPORT

main55838-95A00i198307-198507

55839ACUSHION, FRONT VENTILATOR

main55839-95A00i198307-198507

4 parts on this diagram · 1 diagram in section

FRONT VENTILATOR for Toyota HIACE

This section contains 4 genuine Toyota parts for the FRONT VENTILATOR system of the Toyota HIACE. Key components include: DUCT ASSY, SIDE VENTILATOR, RH, DUCT ASSY, SIDE VENTILATOR, LH, SPRING, FRONT VENTILATOR, SUPPORT, CUSHION, FRONT VENTILATOR.
