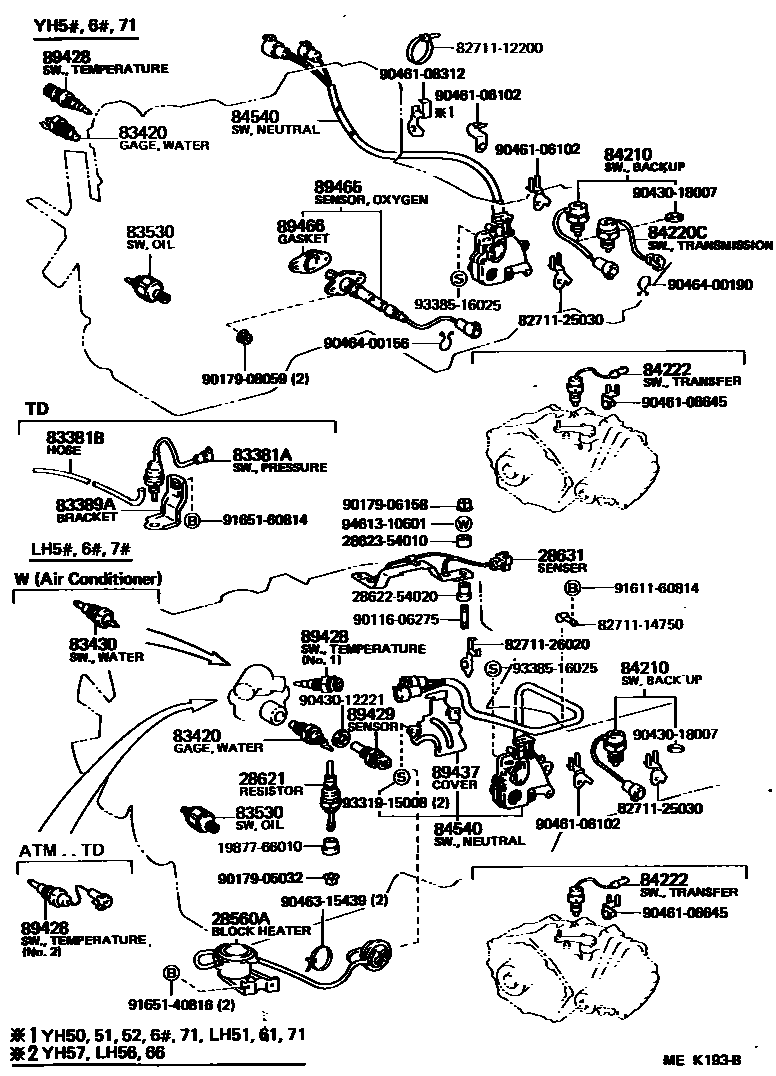

Toyota HIACE VAN,WAGON — SWITCH & RELAY & COMPUTER
28560ABLOCK, HEATER
28621RESISTOR, GLOW PLUG
28631SENSOR, GLOW PLUG CURRENT
83381ASWITCH, PRESSURE
83381BHOSE, VACUUM
83389ABRACKET, PRESSURE SWITCH
83420GAGE ASSY, WATER TEMPERATURE SENDER
83430SWITCH ASSY, WATER LEVEL SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR
84222SWITCH, TRANSFER INDICATOR, NO.1
84540SWITCH ASSY, NEUTRAL START
89428SWITCH, TEMPERATURE DETECT, NO.2
NO.1
NO.2
89429SENSOR, OIL TEMPERATURE
89437COVER, SENSOR
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
1987766010
main19877-66010
2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1
main28622-54020
2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2
main28623-54010
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14750
8271125030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-25030
8271126020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26020
9011606275
main90116-06275
9017905032
main90179-05032
9017906158
main90179-06158
9017908059
main90179-08059
9043012221
main90430-12221
9043018007
main90430-18007
9046106102
main90461-06102
9046106645
main90461-06645
9046108312
main90461-08312
9046315439
main90463-15439
9046400156
main90464-00156
9046400190
main90464-00190
9161160814
main91611-60814
9165140816
main91651-40816
9165160814
main91651-60814
9331915008
main93319-15008
9338516025
main93385-16025
9461310601
main94613-10601
43 parts on this diagram · 7 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota HIACE VAN,WAGON
This section contains 191 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota HIACE VAN,WAGON. Key components include: RELAY ASSY, STARTER, TIMER, PREHEATING, BLOCK, HEATER, RELAY ASSY, INTAKE HEATER OR GLOW PLUG, COVER, GLOW PLUG RELAY.
