Toyota HIACE VAN,WAGON — PARTIAL ENGINE ASSEMBLY

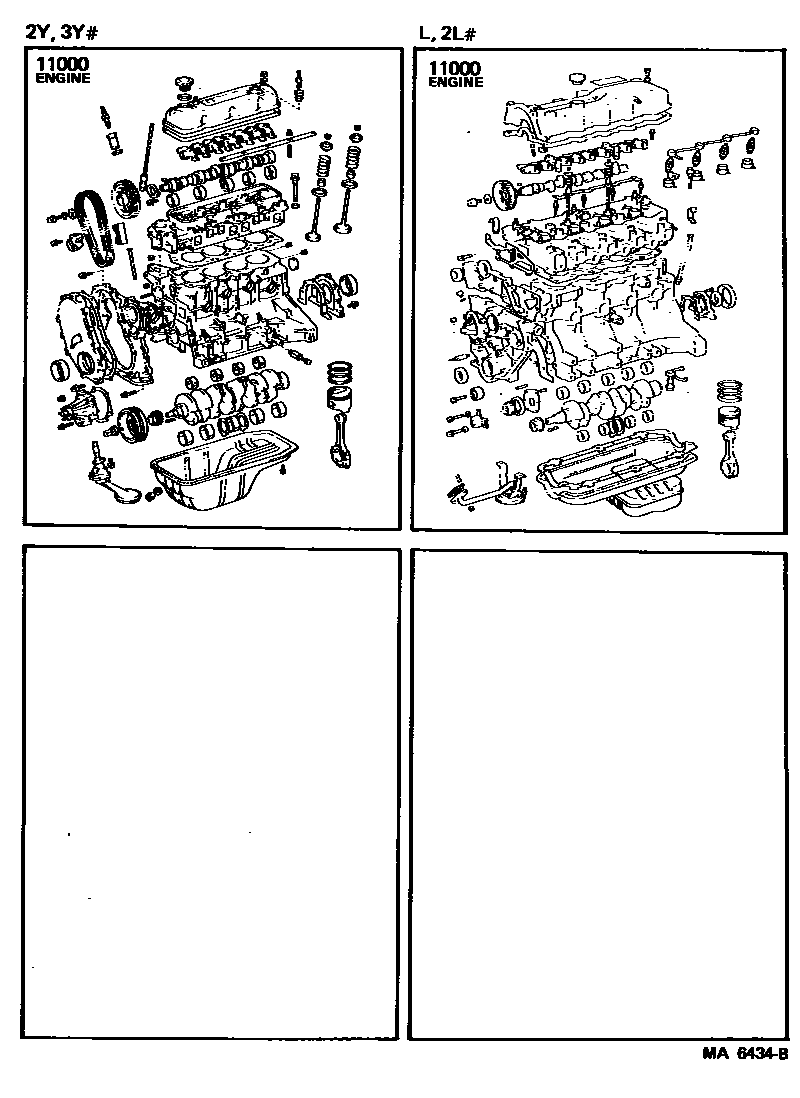

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-54210i198212-198308

main19000-54310i198308-198508

main19000-54371i198508-198708

main19000-54420i198401-198407

main19000-54421i198407-198508

main19000-54590i198508-198704

main19000-54591i198704-198708

main19000-54620i198608-198708

main19000-72060i198212-198403

main19000-72061i198403-198502

main19000-72062i198502-198508

main19000-72220i198508-198708

main19000-73010i198212-198403

main19000-73011i198403-198502

main19000-73012i198502-198508

main19000-73020i198212-198403

main19000-73021i198403-198502

main19000-73022i198502-198508

main19000-73030i198212-198403

main19000-73031i198403-198502

main19000-73032i198502-198508

main19000-73450i198508-198708

main19000-73470i198508-198708

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota HIACE VAN,WAGON

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota HIACE VAN,WAGON. Key components include: ENGINE ASSY, PARTIAL.
