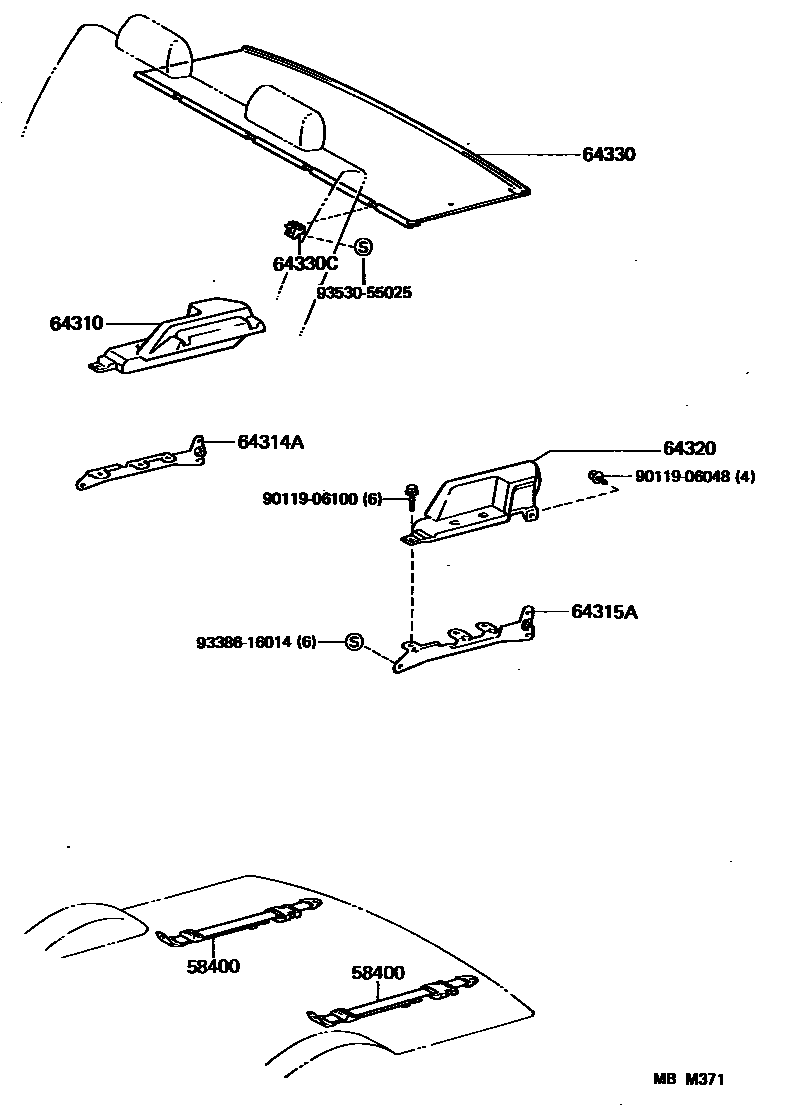

Toyota HIACE VAN,WAGON — PACKAGE TRAY PANEL

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-95J00-06×2i198708-198908

BROWN,TRIM4#

64310BRACKET, PACKAGE TRAY TRIM, RH

main64310-95J01-06i198708-198908

BROWN,TRIM4#

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-95J00i198708-198908

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-95J00i198708-198908

64320BRACKET, PACKAGE TRAY TRIM, LH

main64320-95J01-06i198708-198908

BROWN,TRIM4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-95J01-06i198708-198908

BROWN,TRIM4#

64330CHOOK(FOR PACKAGE TRAY TRIM PANEL)

main74348-12010-06×4i198708-198908

BROWN,TRIM4#

main74348-12010-45×4i198708-198908

GRAIGE,TRIM4#

9011906048

main90119-06048

9011906100

main90119-06100

9338616014

main93386-16014

9353055025

main93530-55025

11 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL for Toyota HIACE VAN,WAGON

This section contains 11 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota HIACE VAN,WAGON. Key components include: BELT ASSY, LUGGAGE HOLD, NO.1, BRACKET, PACKAGE TRAY TRIM, RH, REINFORCEMENT, PACKAGE TRAY BRACKET, RH, REINFORCEMENT, PACKAGE TRAY BRACKET, LH, BRACKET, PACKAGE TRAY TRIM, LH.
