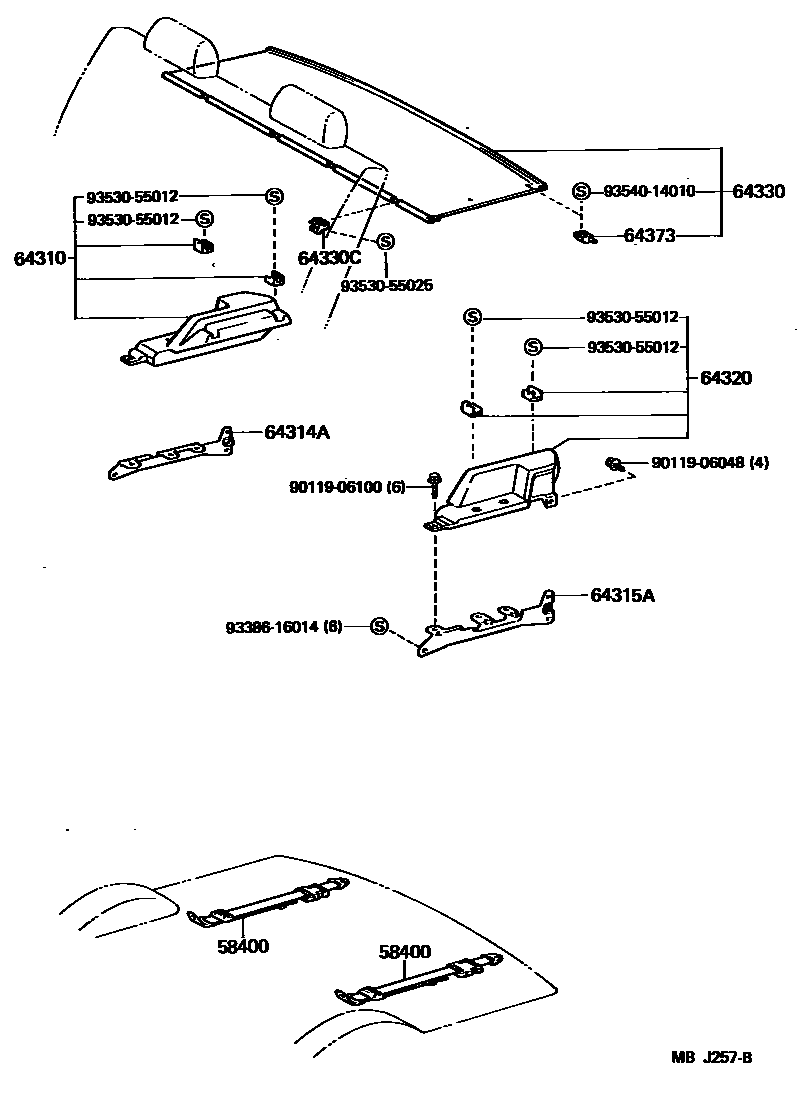

Toyota HIACE VAN,WAGON — PACKAGE TRAY PANEL
58400BELT ASSY, LUGGAGE HOLD, NO.1
BROWN,BROWN
64310BRACKET, PACKAGE TRAY TRIM, RH
BROWN,BROWN
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
64320BRACKET, PACKAGE TRAY TRIM, LH
BROWN,BROWN
64330PANEL ASSY, PACKAGE TRAY TRIM
BROWN,BROWN
64330CHOOK(FOR PACKAGE TRAY TRIM PANEL)
BROWN,BROWN
64373STOPPER, PACKAGE TRAY TRIM
RH
LH
9011906048
main90119-06048
9011906100
main90119-06100
9338616014
main93386-16014
9353055012
main93530-55012
9353055025
main93530-55025
9354014010
main93540-14010
14 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL for Toyota HIACE VAN,WAGON
This section contains 14 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota HIACE VAN,WAGON. Key components include: BELT ASSY, LUGGAGE HOLD, NO.1, BRACKET, PACKAGE TRAY TRIM, RH, REINFORCEMENT, PACKAGE TRAY BRACKET, RH, REINFORCEMENT, PACKAGE TRAY BRACKET, LH, BRACKET, PACKAGE TRAY TRIM, LH.
