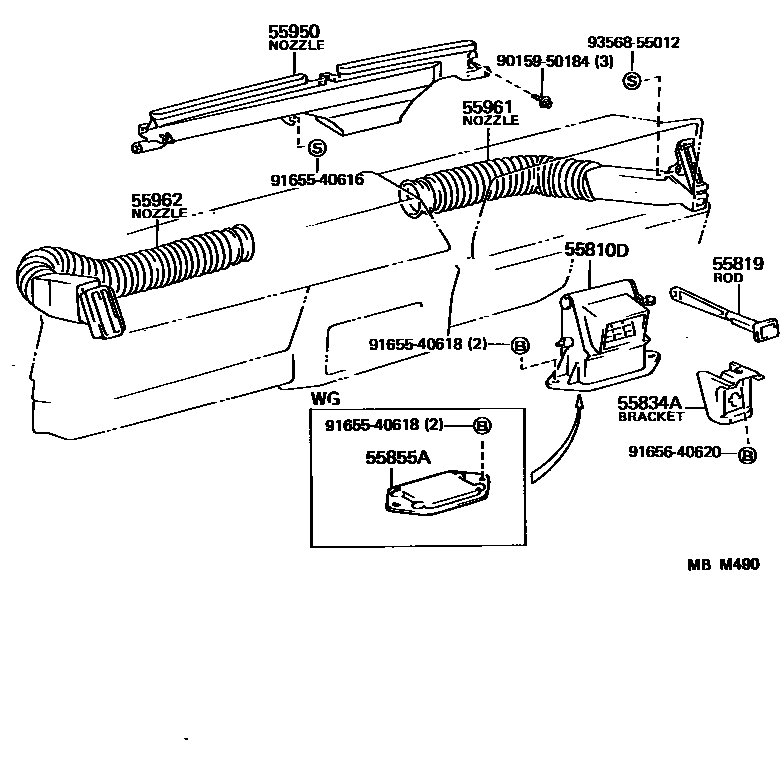

Toyota HIACE VAN,WAGON — FRONT VENTILATOR
55810DVENTILATOR ASSY, FRONT FOOT SIDE
main55810-95J00iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908
55819ROD, SIDE VENTILATOR CONTROL
main55819-95J00iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908
55834ABRACKET, FOOT VENTILATOR CONTROL ROD
main55834-95J00iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908
55855APLATE, SIDE VENTILATOR DUCT
55950NOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
9015950184
main90159-50184
9165540616
main91655-40616
9165540618
main91655-40618
9165640620
main91656-40620
9356855012
main93568-55012
12 parts on this diagram · 1 diagram in section
FRONT VENTILATOR for Toyota HIACE VAN,WAGON
This section contains 12 genuine Toyota parts for the FRONT VENTILATOR system of the Toyota HIACE VAN,WAGON. Key components include: VENTILATOR ASSY, FRONT FOOT SIDE, ROD, SIDE VENTILATOR CONTROL, BRACKET, FOOT VENTILATOR CONTROL ROD, PLATE, SIDE VENTILATOR DUCT, NOZZLE ASSY, DEFROSTER.
