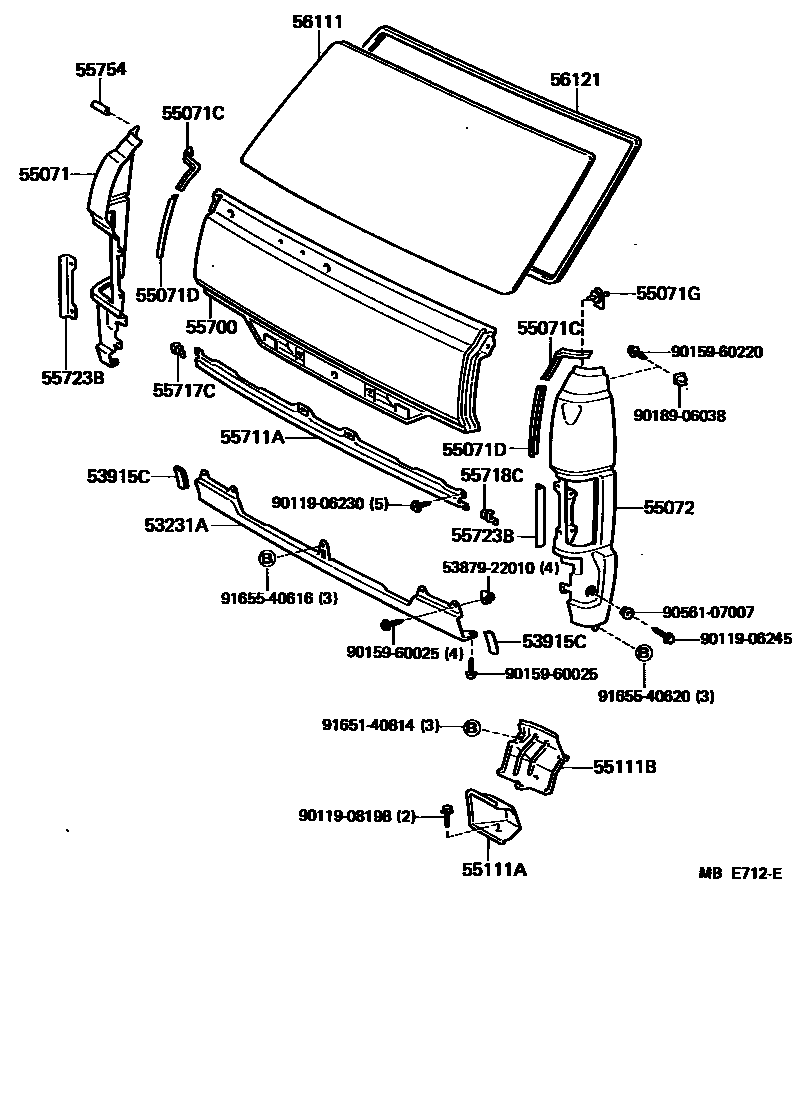

Toyota HIACE VAN,WAGON — FRONT PANEL & WINDSHIELD GLASS
53231APANEL, LOWER SHROUD
53915CPROTECTOR, LOWER SHROUD
55071PANEL SUB-ASSY, FRONT SIDE, RH
55071CPROTECTOR, FRONT SIDE PANEL, NO.1
RH
LH
55071DPROTECTOR, FRONT SIDE PANEL, NO.2
55071GRETAINER, FRONT SIDE PANEL SET
55072PANEL SUB-ASSY, FRONT SIDE, LH
55111AGUIDE, AIR DUCT, NO.1
55111BGUIDE, AIR DUCT, NO.2
55700PANEL ASSY, FRONT
55711APANEL, FRONT, LOWER
55717CPROTECTOR, FRONT, LOWER RH
55718CPROTECTOR, FRONT, LOWER LH
55723BSHUTTER, FRONT AIR SIDE
55754COVER WINDSHIELD
56111GLASS, WINDSHIELD
*ZT,T=5.0,BRONZE
*TL,T=5.7,SUN SHADE
56121WEATHERSTRIP, WINDSHIELD
main56121-95J01iLH5#,6#,7#,YH50,51,61..GL; LH50,51,60,61,YH51,61..WG..SRF..(CTM,DLX,SCM)198212-198708
5387922010LINER, FRONT FENDER, LH
main53879-22010
9011906230
main90119-06230
9011906245
main90119-06245
9011908198
main90119-08198
9015960025
main90159-60025
9015960220
main90159-60220
9018906038
main90189-06038
9056107007
main90561-07007
9165140814
main91651-40814
9165540616
main91655-40616
9165540620
main91655-40620
28 parts on this diagram · 1 diagram in section
FRONT PANEL & WINDSHIELD GLASS for Toyota HIACE VAN,WAGON
This section contains 28 genuine Toyota parts for the FRONT PANEL & WINDSHIELD GLASS system of the Toyota HIACE VAN,WAGON. Key components include: PANEL, LOWER SHROUD, PROTECTOR, LOWER SHROUD, PANEL SUB-ASSY, FRONT SIDE, RH, PROTECTOR, FRONT SIDE PANEL, NO.1, PROTECTOR, FRONT SIDE PANEL, NO.2.
