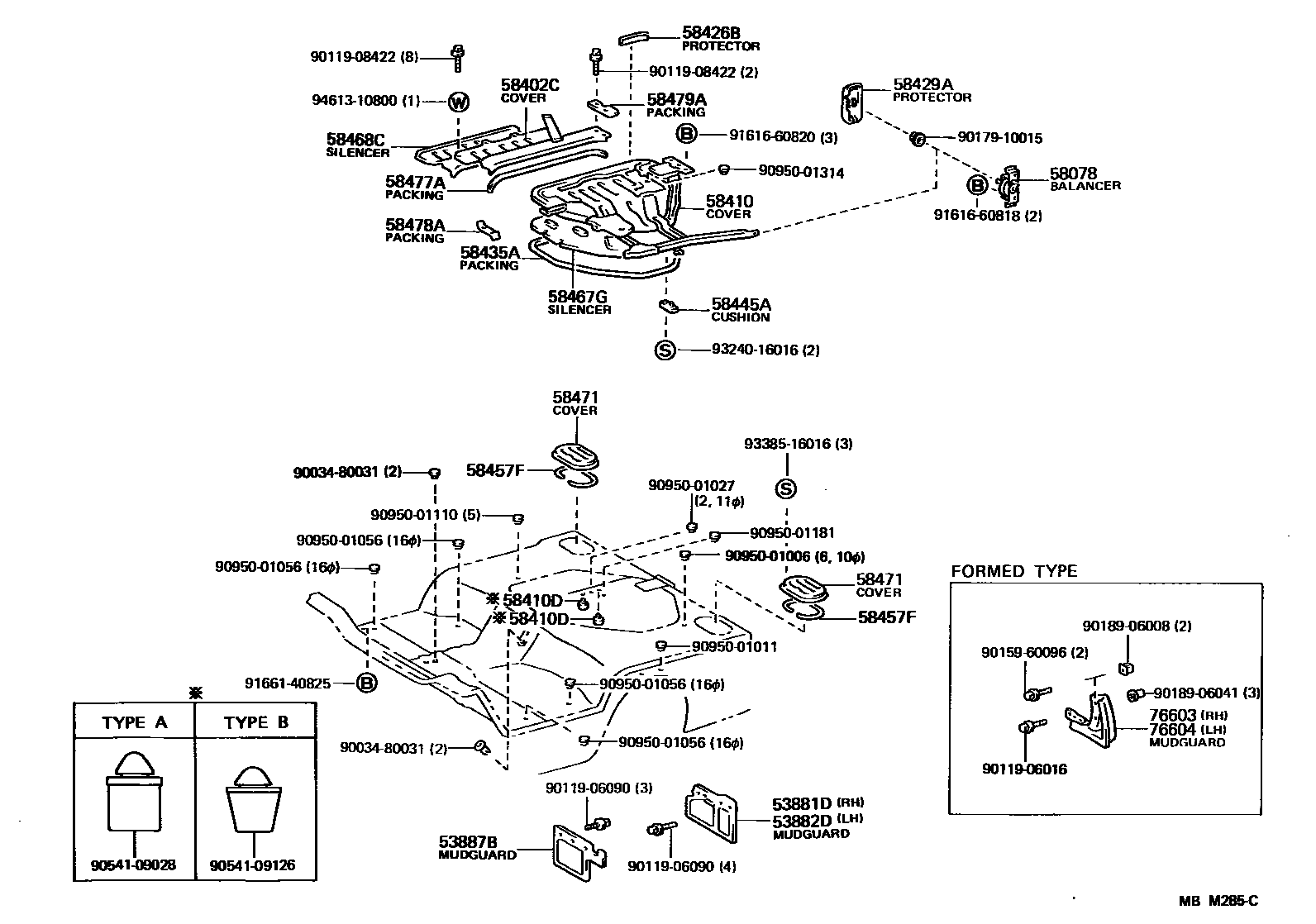

Toyota HIACE VAN,WAGON — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
53881DMUDGUARD, FRONT RH
main53881-95J00iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S198708-198908
53882DMUDGUARD, FRONT LH
main53882-95J00iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S198708-198908
53887BMUDGUARD, FRONT NO.2
58078BALANCER SUB-ASSY, ENGINE SERVICE HOLE COVER
main58078-95J00iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)198708-198908
main58078-95J01iLH66..V4D..DX..05S; LH71,YH51,61..WG;LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S);LH51..(CTM,DX,SCL,SCM,SGL)..(05S,07S,08S,09S)198708-198908
58402CCOVER SUB-ASSY, ENGINE SERVICE HOLE SUB
58410COVER, ENGINE SERVICE HOLE
58410DCUSHION, NO.1
58426BPROTECTOR, ENGINE SUB COVER
58429APROTECTOR, ENGINE MAIN COVER HINGE
main58429-95J01-14iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198709
BLUE,TRIM8#
BROWN,TRIM4#
58435APACKING, ENGINE MAIN COVER
58445ACUSHION, ENGINE SERVICE HOLE COVER
58457FPACKING, SEAT FLOOR SERVICE HOLE
58467GSILENCER, ENGINE MAIN COVER
58468CSILENCER, ENGINE SUB COVER
58471COVER, SEAT FLOOR SERVICE HOLE
main58471-95J03iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S198708-198908
58477APACKING, ENGINE SUB COVER, NO.1
58478APACKING, ENGINE SUB COVER, NO.2
58479APACKING, ENGINE SUB COVER, NO.3
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76603-95J01iLH51,YH51,57..08S; LH71..10S; LH71..5H;LH66..(DX,SGL)..08S;LH5#,6#,YH50,51,52,6#,71..(03S,05S,06S,09S,10S,15S)..ST..(CBR,DSL)198708-198908
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76604-95J01iLH51,YH51,57..08S; LH71..10S; LH71..5H;LH66..(DX,SGL)..08S;LH5#,6#,YH50,51,52,6#,71..(03S,05S,06S,09S,10S,15S)..ST..(CBR,DSL)198708-198908
9003480031
main90034-80031
9011906016
main90119-06016
9011906090
main90119-06090
9011908422
main90119-08422
9015960096
main90159-60096
9017910015
main90179-10015
9018906008
main90189-06008
9018906041
main90189-06041
9054109028
main90541-09028
9054109126
main90541-09126
9095001006
main90950-01006
9095001011
main90950-01011
9095001027
main90950-01027
9095001056
main90950-01056
9095001110
main90950-01110
9095001181
main90950-01181
9095001314
main90950-01314
9161660818
main91616-60818
9161660820
main91616-60820
9166140825
main91661-40825
9324016016
main93240-16016
9338516016
main93385-16016
9461310800
main94613-10800
43 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HIACE VAN,WAGON
This section contains 95 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HIACE VAN,WAGON. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, COVER, STEP PLATE, RH, COVER, STEP PLATE, LH, SHUTTER SUB-ASSY, HOT AIR, UPPER, SHUTTER SUB-ASSY, HOT AIR SIDE, RH.
